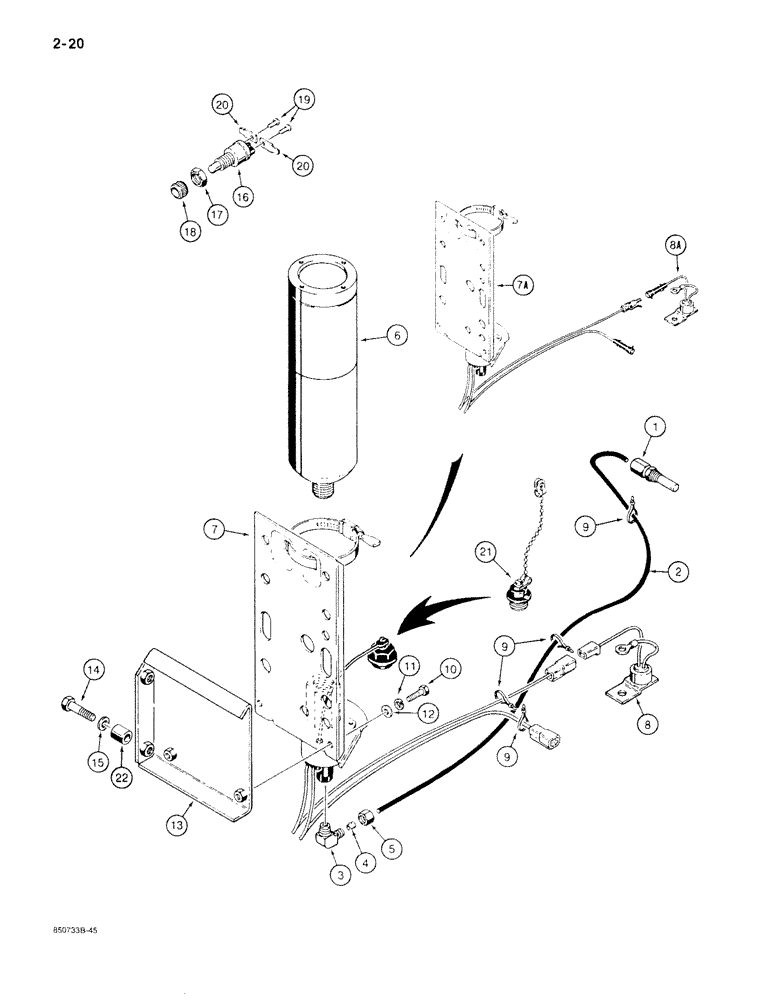

Запчасти Case 780C (2-20) - COLD START SYSTEM (02) - ENGINE

1

A172900

NOZZLE CAP

ASSEMBLY - cold start injector, dual orifice nozzle, replaces existing manifold plug, mounts to side of manifold, component parts not serviced separately

1шт.

2

A171941

HOSE ASSY.

valve to injector nozzle, 4 ft (121.9 cm) long

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

ASSY, Incl. Ref 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

4

222-650

SLEEVE,1/8" Tube, Comp

Brass

1шт.

5

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8", brass

1шт.

6

A171940

CYLINDER

CONTAINER - starting fluid

1шт.

7

A172516

VALVE

ASSEMBLY - 3 cc starting fluid injection, with bracket, component parts not serviced separately, used on models with 24 volt electrical circuit

1шт.

7a

D137278

VALVE

ASSEMBLY - 3 cc starting fluid injection, with bracket, component parts not serviced separately, used on models with 12 volt electrical circuit

1шт.

8

A171943

IGNITION SWITCH

temperature, circuit breaking, uses existing intake manifold mounting hardware, used on models with 24 volt electrical circuit

1шт.

8a

D137305

THERMOSTAT

temperature, circuit breaking, uses existing intake manifold mounting hardware, used on models with 12 volt electrical circuit

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

2-4шт.

10

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

12

195-518

WASHER,1/4", SAE

4шт.

13

D133313

BRACKET

valve mounting, attaches to left-hand upper support frame

1шт.

14

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

15

195-525

WASHER,3/8", SAE

2шт.

L72776

SWITCH

ASSEMBLY - cold start, includes screws, must also order (2) L59682 blade terminals (Ref. 20), Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

SWITCH - cold start

1шт.

17

H275784

JAM NUT

hex, jam, special

1шт.

18

D73741

NUT

special

1шт.

19

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

MACHINE - round head slotted, No. 10-32 NF x 1/4"

2шт.

20

L59682

TERMINAL CONNECTOR

blade, used with L72776 switch

2шт.

21

N8826

PLUG

with chain, place in starting fluid valve when starting fluid canister is not in place, if used

1шт.

22

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

bracket

2шт.
