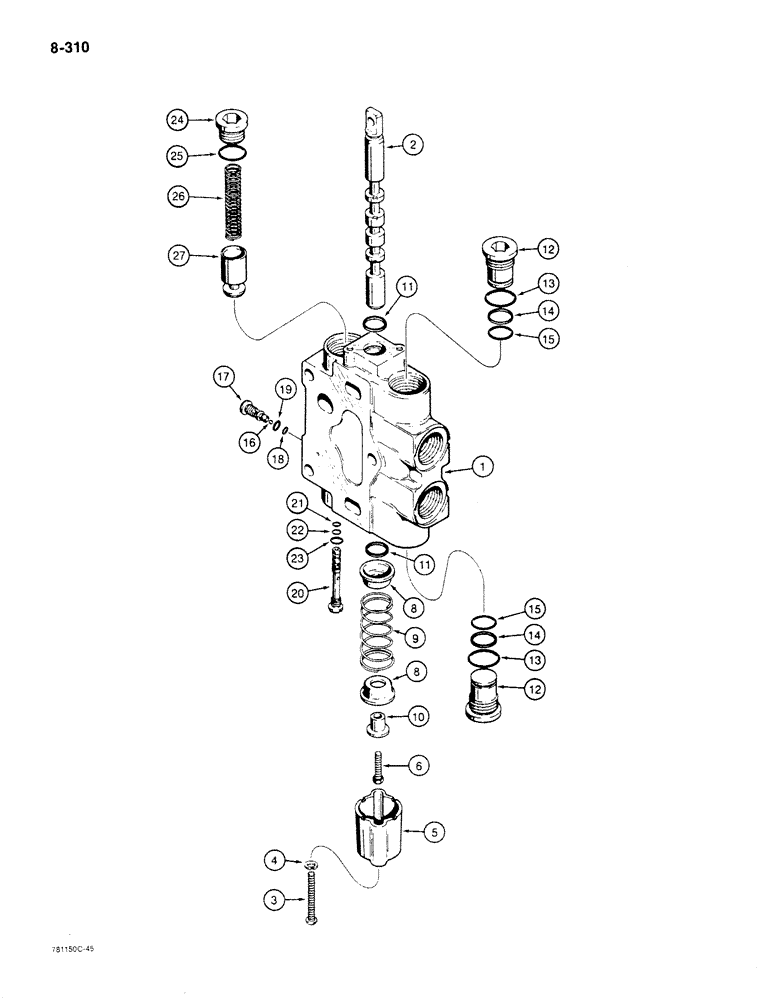

Запчасти Case 780C (8-310) - BACKHOE CONTROL VALVE, EXTENDABLE DIPPER SECTION (08) - HYDRAULICS

D87073

SEGMENT

ASSEMBLY - extendable dipper, identification No. 217, Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

61-432

HEX SOC SCREW,1/4"-20 x 2"

2шт.

4

92-4

LOCK WASHER,1/4"

2шт.

5

D78454

HOUSING

spring

1шт.

6

75-416

SCREW,Rd, 1/4" - 20 x 1"

machine, round head, slotted, 1/4" 20 NC x 1"

1шт.

8

CASR30191

RETAINER

RETAINER - spring

2шт.

9

R30192

SPRING

section

1шт.

10

N7506

SPACER

spring

1шт.

11

G46908

O-RING

body

2шт.

12

R30167

PLUG

body, Includes: Ref. 13 - 15

2шт.

R30174

GASKET KIT

Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, O-ring

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

16

211-255

BALL,3/16 Dia

grade 50, chrome alloy steel

1шт.

A47210

PLUG

SHUTTLE - secondary, Includes: Ref. 17 - 19

1шт.

17

A47204

PLUG

SEAT - shuttle, secondary

1шт.

18

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

19

A47101

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

large

1шт.

D87080

VALVE

SHUTTLE - primary, includes a seat and ball not serviced separately, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - shuttle, primary

1шт.

N6632

SEAL KIT

seal, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - medium

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

24

9841223

PLUG,1-1/16" - 12 ORB

Body, Incl. Ref. 25

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

26

R30189

SPRING

body

1шт.

27

D87082

VALVE POPPET

body

1шт.
