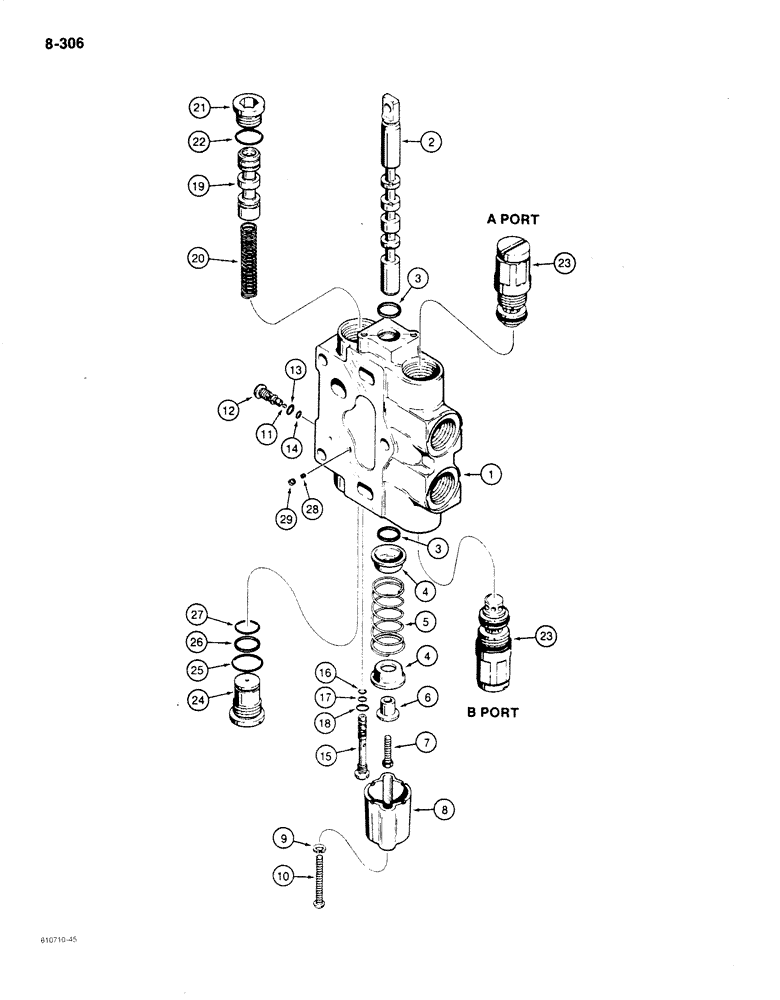

Запчасти Case 780C (8-306) - BACKHOE CONTROL VALVES, DIPPER SECTION (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
N13296
KNIFE SECTION
SECTION, KNIFE ASSEMBLY - dipper, identification No. 245, Includes: Ref. 1 - 29
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - control valve
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL - control valve
1шт.
3
G46908
O-RING
spool
2шт.
4
CASR30191
RETAINER
RETAINER - spring
2шт.
5
R30192
SPRING
centering
1шт.
6
N7506
SPACER
retainer
1шт.
7
113-64
PREV TORQUE BOLT,Locking, 1/4"-20 x 1", G5
1шт.
8
D78454
HOUSING
spool cover
1шт.
9
92-4
LOCK WASHER,1/4"
2шт.
10
61-432
HEX SOC SCREW,1/4"-20 x 2"
2шт.
11
211-255
BALL,3/16 Dia
grade 50, chrome alloy steel
1шт.
A47210
PLUG
SHUTTLE - secondary, Includes: Ref. 12 - 14
1шт.
12
A47204
PLUG
SEAT - shuttle secondary
1шт.
13
218-5002
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
1шт.
14
A47101
O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro
small
1шт.
D87080
VALVE
SHUTTLE - primary, includes a seat and ball not serviced separately, Includes: Ref. 15 - 18
1шт.
15
NSS
NOT SOLD SEPARAT
BODY - shuttle primary
1шт.
N6632
SEAL KIT
seal, Includes: Ref. 16 - 18
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING - small
1шт.
17
NSS
NOT SOLD SEPARAT
O-RING - medium
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING - large
1шт.
19
N7500
SPOOL
load check
1шт.
20
N7501
SPRING
spool
1шт.
21
9841223
PLUG,1-1/16" - 12 ORB
Load check spool, Incl. Ref. 22
1шт.
22
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Plug
1шт.
23
D128695
VALVE
ASSEMBLY - anticavitation and relief, parts list Figure 8-312
2шт.
Pressure setting not preset for this application. Please refer to your 780C Service manual for the correct pressure settings.
1шт.
N7504
PLUG
ASSEMBLY - control valve body, Includes: Ref. 24 - 27
1шт.
24
NSS
NOT SOLD SEPARAT
PLUG - control valve body
1шт.
25
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
26
N7509
RING
backup
1шт.
27
A55911
O-RING,0.807" ID
small
1шт.
28
A47213
PLUG
inside
1шт.
29
A47105
PLUG
outside
1шт.
Выбрано товаров: 35
