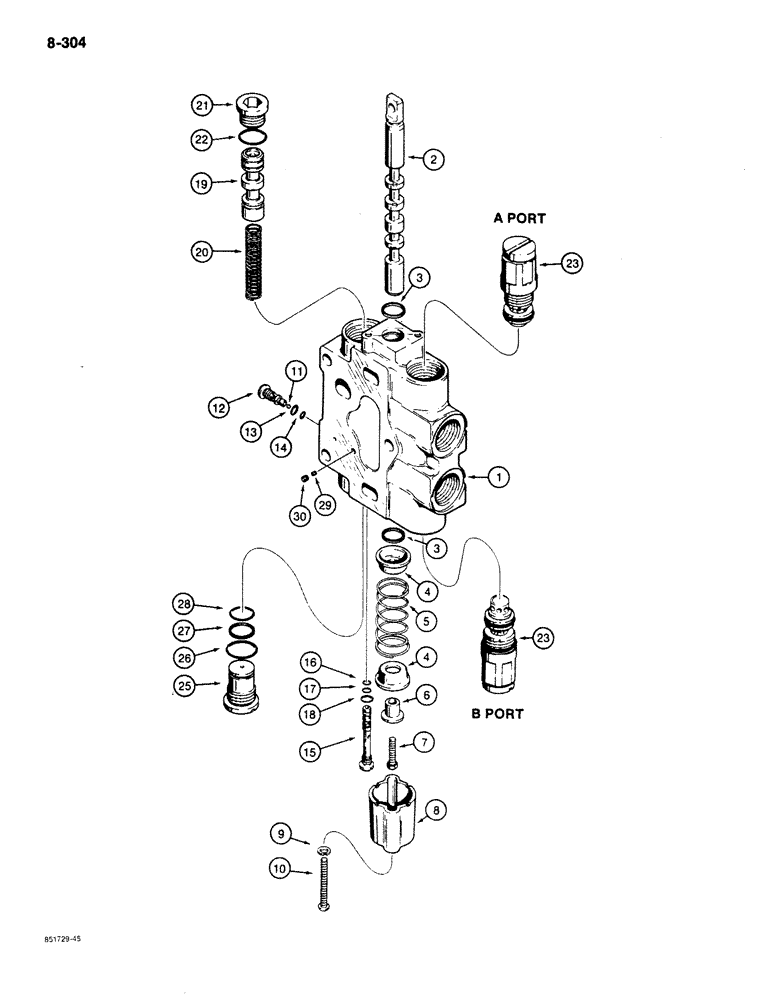

Запчасти Case 780C (8-304) - BACKHOE CONTROL VALVES, BOOM AND BUCKET SECTIONS (08) - HYDRAULICS

N13295

KNIFE SECTION

SECTION, KNIFE ASSEMBLY - boom, identification, No. 244, Includes: Ref. 1 - 30

1шт.

N13297

VALVE BLOCK

SECTION ASSEMBLY - bucket, identification No. 246, Includes: Ref. 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

3

G46908

O-RING

spool

2шт.

4

R30191

WASHER

RETAINER - spring

2шт.

5

R30192

SPRING

centering

1шт.

6

N7506

SPACER

retainer

1шт.

7

113-64

PREV TORQUE BOLT,Locking, 1/4"-20 x 1", G5

1шт.

8

D78454

HOUSING

spool cover

1шт.

9

92-4

LOCK WASHER,1/4"

2шт.

10

61-432

HEX SOC SCREW,1/4"-20 x 2"

2шт.

11

211-255

BALL,3/16 Dia

grade 50, chrome alloy steel

1шт.

A47210

PLUG

SHUTTLE - secondary, Includes: Ref. 12 - 14

1шт.

12

A47204

PLUG

SEAT - shuttle secondary

1шт.

13

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

14

A47101

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

small

1шт.

D87080

VALVE

SHUTTLE - primary, includes seat and ball not serviced separately, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - shuttle primary

1шт.

N6632

SEAL KIT

seal, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - medium

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

19

N7500

SPOOL

load check

1шт.

20

N7501

SPRING

spool

1шт.

21

9841223

PLUG,1-1/16" - 12 ORB

Load check spool, Incl. Ref. 22

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

23

D128695

VALVE

ASSEMBLY - anticavitation and relief, for boom and bucket application, parts list Figure 8-312

2шт.

Pressure setting not preset for this application. Please refer to your 780C Service Manual for the correct pressure settings.

1шт.

N7504

PLUG

ASSEMBLY - control valve body, Includes: Ref. 25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

PLUG - control valve body

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

N7509

RING

backup

1шт.

28

A55911

O-RING,0.807" ID

small

1шт.

29

A47213

PLUG

inside

1шт.

30

A47105

PLUG

outside

1шт.
