Запчасти Case 780C (8-302) - BACKHOE CONTROL VALVES, INLET AND OUTLET SECTION (08) - HYDRAULICS

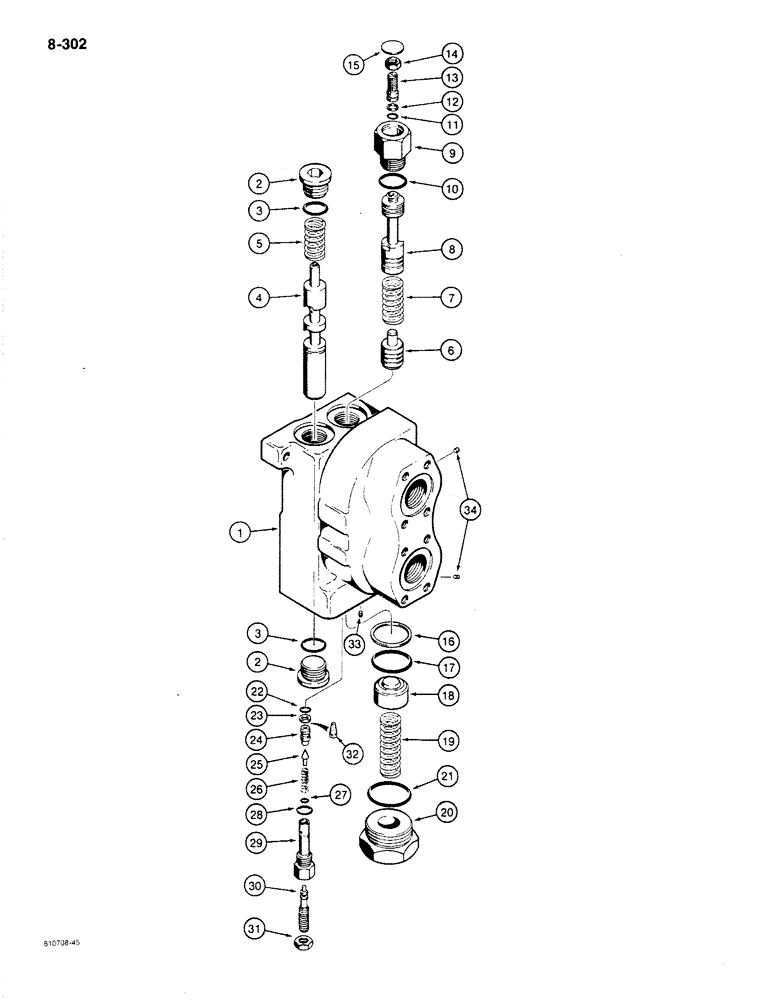

Схема запчастей Case 780C - (8-302) - BACKHOE CONTROL VALVES, INLET AND OUTLET SECTION (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

N7492

KNIFE SECTION

SECTION, KNIFE ASSEMBLY - inlet and outlet, Includes: Ref. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve section

1шт.

2

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - regeneration

1шт.

5

D78464

SPRING

spool

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

7

D78458

SPRING

unloading spool

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - unloading

1шт.

D87077

PLUG

ASSEMBLY - valve section, Includes: Ref. 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG - section

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

small

1шт.

12

D87094

BACK-UP RING

backup, O-ring

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - special

1шт.

14

25-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

15

D87075

COVER

CAP - dust

1шт.

16

D87079

RING

BACKUP - O-ring

1шт.

17

A62193

O-RING,1.424" ID x 1.63" OD

piston

1шт.

18

D78461

PISTON ASSY.

valve section

1шт.

19

N7498

SPRING

valve section

1шт.

20

D78462

PLUG

hex head, special, Includes: Ref. 21

1шт.

21

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

N7805

VALVE PRESSURE RELIE

RELIEF ASSEMBLY - section, Includes: Ref. 22 - 32

1шт.

22

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

valve section

1шт.

23

L35305

RING

backup, O-ring

1шт.

24

NSS

NOT SOLD SEPARAT

SEAT - valve

1шт.

25

D78469

PLUNGER

valve

1шт.

26

D78468

SPRING

plunger

1шт.

27

A51274

O-RING,0.145" ID x 0.285" OD

spring

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

30

D78467

ADJUSTMENT SCREW,3/8" - 24 x 1.953"

special

1шт.

31

25-156

JAM NUT,Jam, 3/8"-24, G5

hex, jam, 3/8" - 24 NF

1шт.

32

NSS

NOT SOLD SEPARAT

FILTER - relief assembly

1шт.

33

D78455

PLUG

hex socket, special

1шт.

34

D78456

PLUG

RESTRICTOR - valve section body

2шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Body

1шт.

Выбрано товаров: 37
