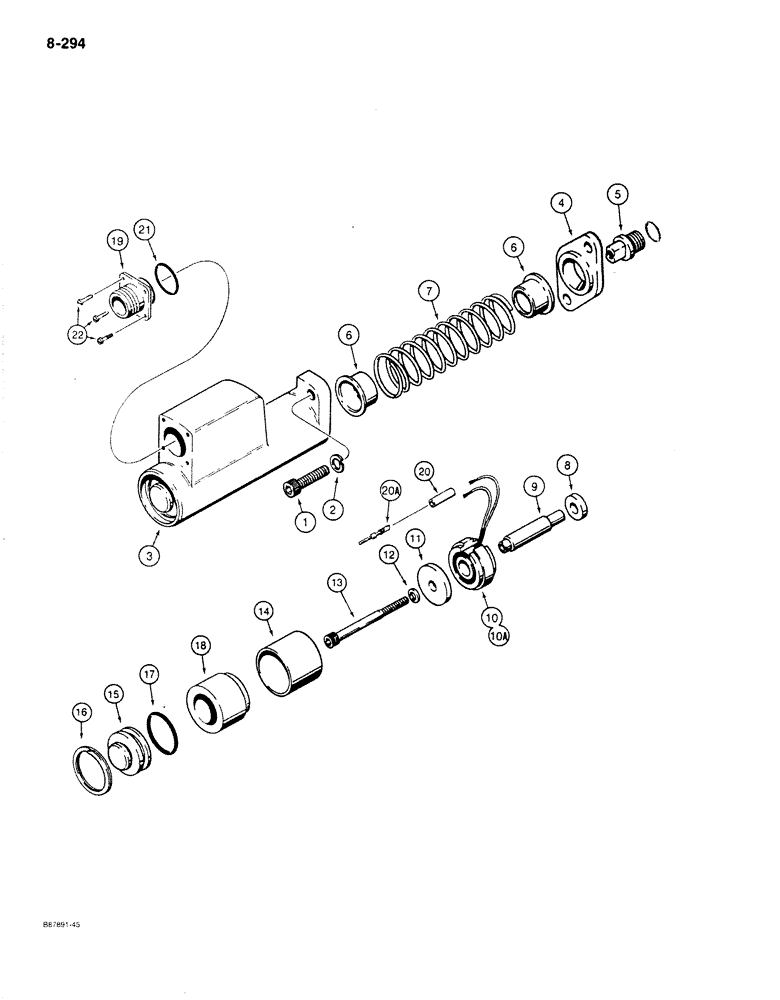

Запчасти Case 780C (8-294) - HYDRECO LOADER CONTROL VALVE, BUCKET SPOOL MAGNETIC DETENT (08) - HYDRAULICS

N7171

SPOOL

DETENT ASSEMBLY - magnetic, bucket spool, used with L101840 or L101841 loader valve on models with 24 volt electrical circuit, Includes: Ref. 1 - 22

1шт.

N14619

DETENT

ASSEMBLY - magnetic, bucket spool, used with D138274 or D138276 loader valve on models with 12 volt electrical circuit, Includes: Ref. 1 - 22

1шт.

1

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

hex socket head, 5/16" - 18 NC x 1-1/4"

2шт.

2

92-5

LOCK WASHER,5/16"

2шт.

3

N9063

COVER ASSY

magnetic detent

1шт.

4

D80682

PLATE

retaining

1шт.

5

D80681

PLUG

spool end, for O-ring number, see spool parts list Figure 8-290

1шт.

6

D24777

COLLAR

SEAT - spring

2шт.

7

D24776

VALVE SPRING

centering, spool

1шт.

8

D80685

SPACER

washer

1шт.

9

D80687

SPACER

tube

1шт.

10

D82930

COIL

N7171 magnetic detent

1шт.

10a

D80688

SOLENOID

COIL - N14619 magnetic detent

1шт.

11

D80689

ARMATURE

WASHER - magnetic detent

1шт.

12

D80676

SPACER

small

1шт.

13

61-448

HEX SOC SCREW,1/4"-20 x 3"

hex socket head, 1/4" - 20 NC x 3"

1шт.

14

D82711

SPACER

sleeve

1шт.

15

D80683

PLUG

end

1шт.

16

D80691

SNAP RING,#150, 1.567, Int, Spiral

RING - cover

1шт.

17

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

plug

1шт.

18

N6601

SPACER

magnetic detent

1шт.

19

N7172

CONNECTOR, ELEC

CONNECTOR RECEPTACLE - magnetic detent

1шт.

20

D83095

ELECTRICAL WIRE

WIRE CONNECTOR - used with N7171 magentic detent

2шт.

20a

N7173

TERMINAL STRIP

electrical connector

2шт.

21

S16824

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

receptacle

1шт.

22

187-1709

SELF-TAP SCREW,Slotted Pan Hd, #4 x 3/8"

pan head. self-tapping, No. 4-40 NC x 3/8"

4шт.
