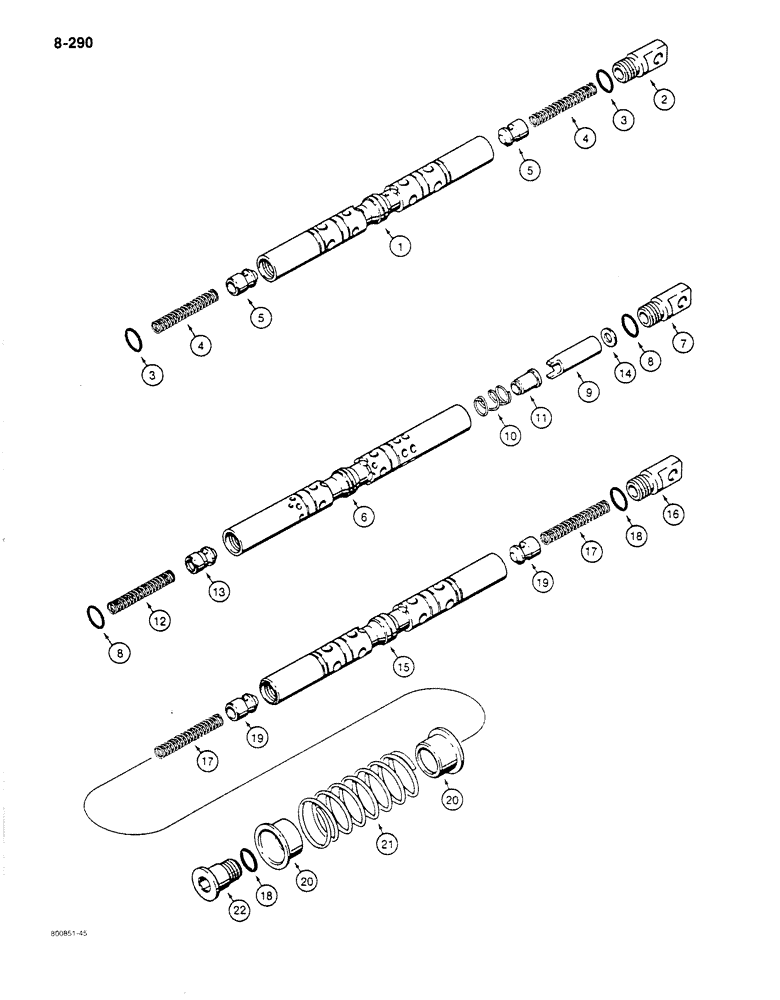

Запчасти Case 780C (8-290) - HYDRECO LOADER CONTROL VALVE, VALVE SPOOLS (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

SPOOL - bucket

1шт.

2

D80672

PLUG

EYE - spool, bucket

1шт.

3

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

spool, bucket

2шт.

4

D24774

SPRING

load check valve, bucket spool

2шт.

5

D80679

VALVE

POPPET - load check, bucket spool

2шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - lift

1шт.

7

D80672

PLUG

EYE - spool, lift

1шт.

8

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

spool, lift

2шт.

9

D80676

SPACER

spool, lift

1шт.

10

D80677

SPRING

load check valve, A port, lift spool

1шт.

11

D80678

VALVE

POPPET - load check , A port, lift spool

1шт.

12

D24774

SPRING

load check valve, B port, lift spool

1шт.

13

D80679

VALVE

POPPET - load check , B port, lift spool

1шт.

14

195-16

WASHER,#12

flat, No. 12, lift spool

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL - clam

1шт.

16

D80672

PLUG

EYE - spool, clam

1шт.

17

D24774

SPRING

load check valve, clam spool

2шт.

18

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

spool, clam

2шт.

19

D24785

VALVE

POPPET - load check, clam spool

2шт.

20

D24777

COLLAR

SEAT - spring, clam spool

2шт.

21

D80692

SPRING

spool centering, clam spool

1шт.

22

D24780

PLUG

spool, clam

1шт.
