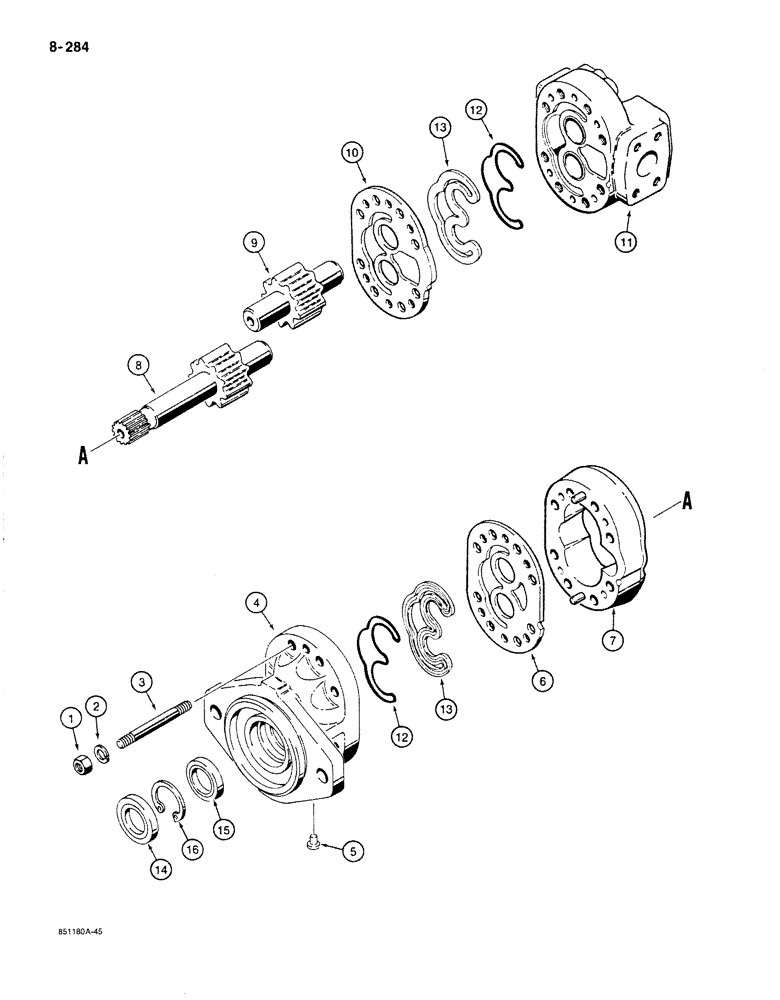

Запчасти Case 780C (8-284) - D127915 EQUIPMENT HYDRAULIC PUMP (08) - HYDRAULICS

D127915

PUMP, HYDRAULIC

ASSEMBLY - equipment hydraulic, rear mounted, Sperry Vickers No. G20C-2W17V1-B12A30-S22, Includes: Ref. 1 - 16

1шт.

1

129-104

NUT,7/16"-14, G5

8шт.

2

192-22

LOCK WASHER,7/16"

8шт.

3

NSS

NOT SOLD SEPARAT

STUD - cover

8шт.

4

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

5

NSS

NOT SOLD SEPARAT

PLUG - end cover

1шт.

6

N60292

PLATE

wear, end cover

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - gear, center

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - drive, equipment hydraulic circuit

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - driven, equipment hydraulic circuit

1шт.

10

N60296

PLATE

wear, port end cover

1шт.

11

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

N7126

SEAL KIT

seal, Includes: Ref. 12 - 16

1шт.

12

N60243

SEAL

special

2шт.

13

N60305

RETAINER

seal

2шт.

14

N9020

SEAL

shaft, outer, if used

1шт.

15

N60306

SEAL

shaft, inner

1шт.

16

A49490

CIRCLIP

snap, seal retaining

1шт.
