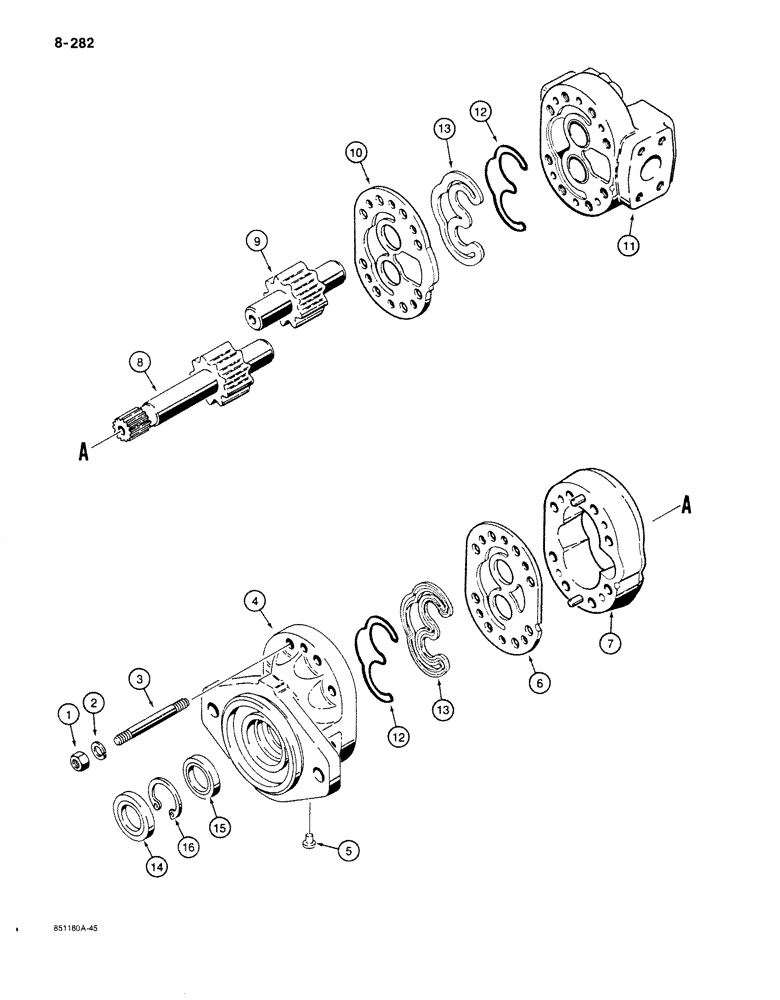

Запчасти Case 780C (8-282) - D127917 STEERING AND BACKHOE HYDRAULIC PUMP (08) - HYDRAULICS

D127917

PUMP

ASSEMBLY - steering and backhoe hydraulic, front mounted, Sperry Vickers No. G20C-2W15V1-B12A30-S22, Includes: Ref. 1 - 16

1шт.

1

129-104

NUT,7/16"-14, G5

8шт.

2

192-22

LOCK WASHER,7/16"

8шт.

3

N9272

STUD

cover

8шт.

4

N9824

COVER ASSY

end

1шт.

5

N60210

PLUG

end cover

1шт.

6

N60292

PLATE

wear, end cover

1шт.

7

N9029

HOUSING

gear, center

1шт.

8

N9823

GEAR WHEEL

drive, hydraulic circuit, must also replace driven gear N60295 (Ref. 9) as a matched set

1шт.

9

N60295

GEAR WHEEL

driven, hydraulic circuit, must also replace drive gear N9823 (Ref. 8) as a matched set

1шт.

10

N60296

PLATE

wear, port end cover

1шт.

11

N9822

COVER ASSY

SPARE PART port end

1шт.

N7126

SEAL KIT

seal, Includes: Ref. 12 - 16

1шт.

12

N60243

SEAL

special

2шт.

13

N60305

RETAINER

seal

2шт.

14

N9020

SEAL

shaft, outer, if used

1шт.

15

N60306

SEAL

shaft, inner

1шт.

16

A49490

CIRCLIP

snap, seal retaining

1шт.
