(8-280) - BACKHOE BOOM LOCK HYDRAULIC AND ELECTRICAL CIRCUIT, SPECIAL PTS USED ON MODELS W/ 12V ELEC. CIRCUIT

Запчасти Case 780C (8-280) - BACKHOE BOOM LOCK HYDRAULIC AND ELECTRICAL CIRCUIT, SPECIAL PTS USED ON MODELS W/ 12V ELEC. CIRCUIT (08) - HYDRAULICS

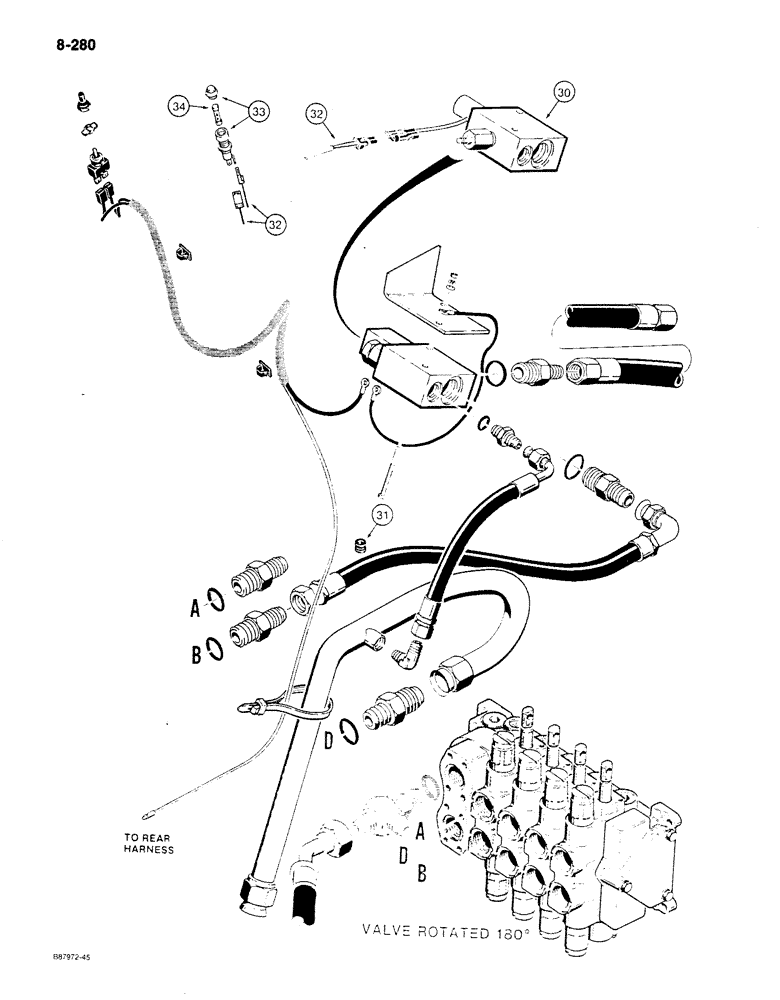

Схема запчастей Case 780C - (8-280) - BACKHOE BOOM LOCK HYDRAULIC AND ELECTRICAL CIRCUIT, SPECIAL PTS USED ON MODELS W/ 12V ELEC. CIRCUIT (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

30

D139523

HYDRAULIC VALVE

ASSEMBLY - solenoid, boom lock, parts list Figure 8-316

1шт.

31

D139845

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

harness

1шт.

32

D139531

HARNESS

boom lock

1шт.

33

A22874

HOLDER

RETAINER - fuse, at backhoe control tower

1шт.

34

223-38

FUSE,3 Amp, Type 3AG

3 ampere, boom lock

1шт.

Выбрано товаров: 5
