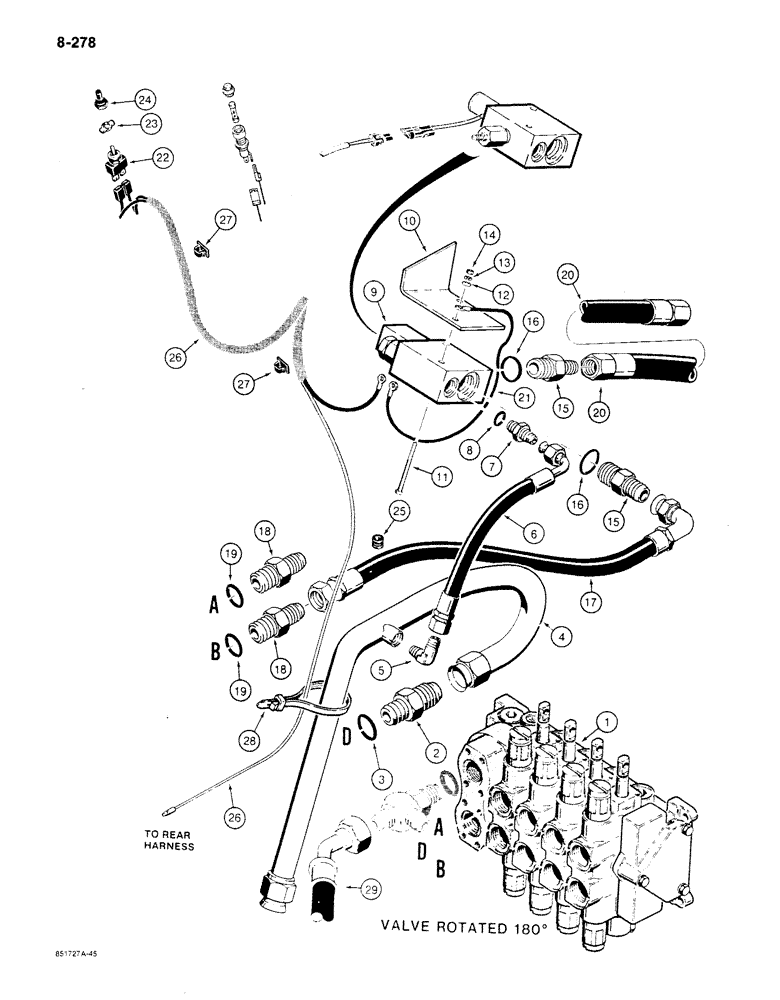

Запчасти Case 780C (8-278) - BACKHOE BOOM LOCK HYDRAULIC AND ELECTRICAL CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly, components, and mounting hardware, see parts list Figure 8-300

1шт.

2

218-5049

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

straight, backhoe valve return port, Includes: Ref. 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Adapter

1шт.

4

L105519

TUBE ASSY.

backhoe control valve return, used on models without extendable dipper

1шт.

4

L108641

TUBE - backhoe control valve return, used on models with extendable dipper

1шт.

5

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

90 degree

1шт.

6

L105422

HOSE

12" (305 mm) long, Serial Range: valve-return

1шт.

7

218-5031

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male ORB

straight, Includes: Ref. 8

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Adapter

1шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid, boom lock, used on models with 24 volt electrical citcuit, parts list Figure 8-314 or 8-316

1шт.

10

L108453

BRACKET

boom lock valve mounting

1шт.

11

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

12

195-103

WASHER,5/16"

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Straight, Incl. Ref. 16

2шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

17

L109368

HOSE ASSY.

19" (483 mm) long, to boom lock valve

1шт.

18

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Straight, Incl. Ref. 19

2шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

20

L105514

HOSE ASSY.

SPARE PART 20" (508 mm) long, boom to boom lock

1шт.

21

L16409

ELECTRICAL WIRE

WIRE ground, used on models with 24 volt electrical circuit

1шт.

22

D67251

SWITCH

TOGGLE- boom lock

1шт.

23

L105735

PLATE ASSY.

trim

1шт.

24

L101998

BOOT

toggle switch

1шт.

25

D134601

GROMMET

harness, used on models with 24 volt electrical circuit

1шт.

26

L110680

HARNESS

boom lock, used on models with 24 volt electrical circuit

1шт.

27

L100659

CLIP

harness

2шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

29

L109370

HOSE ASSY.

39" (991 mm) long, special, from stabilizer valve to backhoe control valve

1шт.
