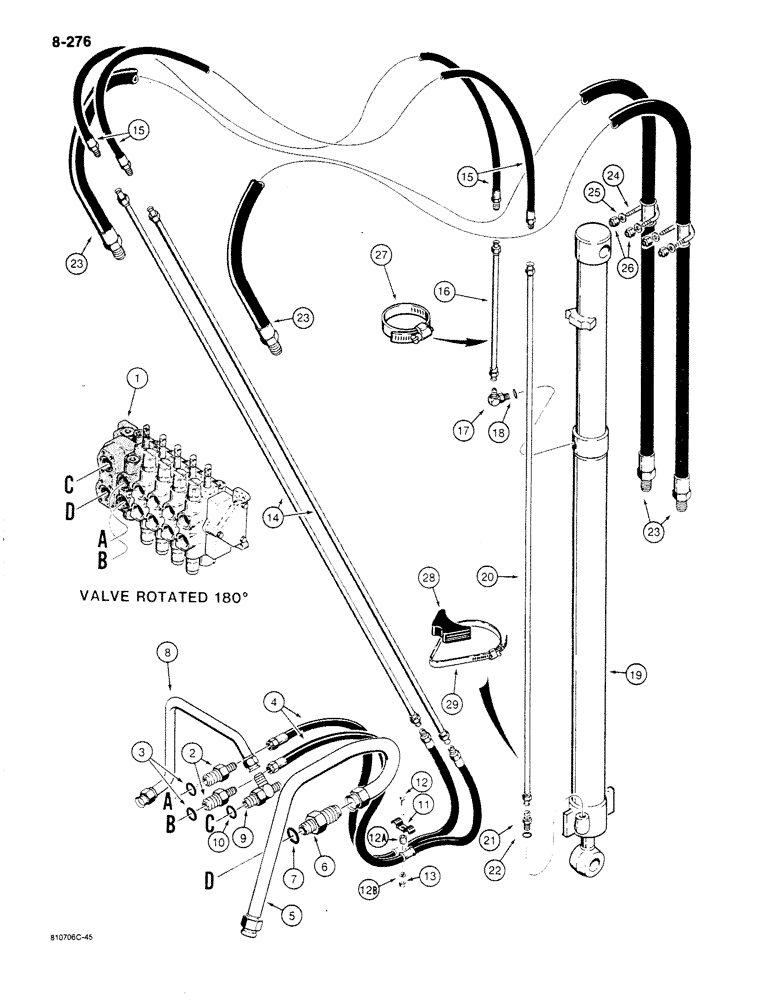

Запчасти Case 780C (8-276) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D128697

VALVE

ASSEMBLY - backhoe control, extendable dipper models, see parts list Figure 8-300 for valve and mounting hardware

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

4

L103775

HOSE,0.50" ID x 60.00"

Valve to Tubes

2шт.

5

L106521

TUBE ASSY.,1.5" OD

backhoe return, extendable dipper models, not used on models with boom lock, see Figure 8-278

1шт.

6

218-5049

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

straight, male, Includes: Ref. 7

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Adapter

1шт.

8

L106459

TUBE ASSY.,1" OD

backhoe supply, extendable dipper models

1шт.

9

218-5586

TEE,37 Degree, 1 1/16"-12, 1 5/8"-12 O-Ring Run, 1 5/16"-12

SPARE PART fitting, backhoe supply tube, Includes: Ref. 10

1шт.

10

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Tee

1шт.

11

R15257

CLAMP

, Serial Range: hose-tower

1шт.

12

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

12a

D76209

SPACER

clamp

1шт.

12b

192-21

LOCK WASHER,3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

14

L103784

TUBE,0.625" OD x 102.5" L

to extension cylinder

2шт.

15

L103654

HOSE,12.70 mm ID x 1092.20 mm

to Extendable Dipper Cylinder

2шт.

16

L103656

TUBE ASSY.,0.625" OD x 17.8" L

from hose to extension cylinder, closed end

1шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Elbow

1шт.

19

G103108

CYLINDER ASSY.

dipper extension, parts list Figure 8-344

1шт.

20

L103658

TUBE ASSY.,0.625" OD x 69.8" L

from hose to extenson cylinder, rod end

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, male, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Connector

1шт.

23

L109843

HOSE,0.75" ID x 102.00", SAE 100R12

to Bucket Cylinder, Extendable Dipper Models

2шт.

24

L104253

U-BOLT

U-BOLT - bucket hose

2шт.

25

195-103

WASHER,5/16"

4шт.

26

131-4

LOCK NUT,5/16"-18, GB

4шт.

27

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

tube

1шт.

28

D38648

BLOCK

SPACER - tube clamp

1шт.

29

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

tube

1шт.
