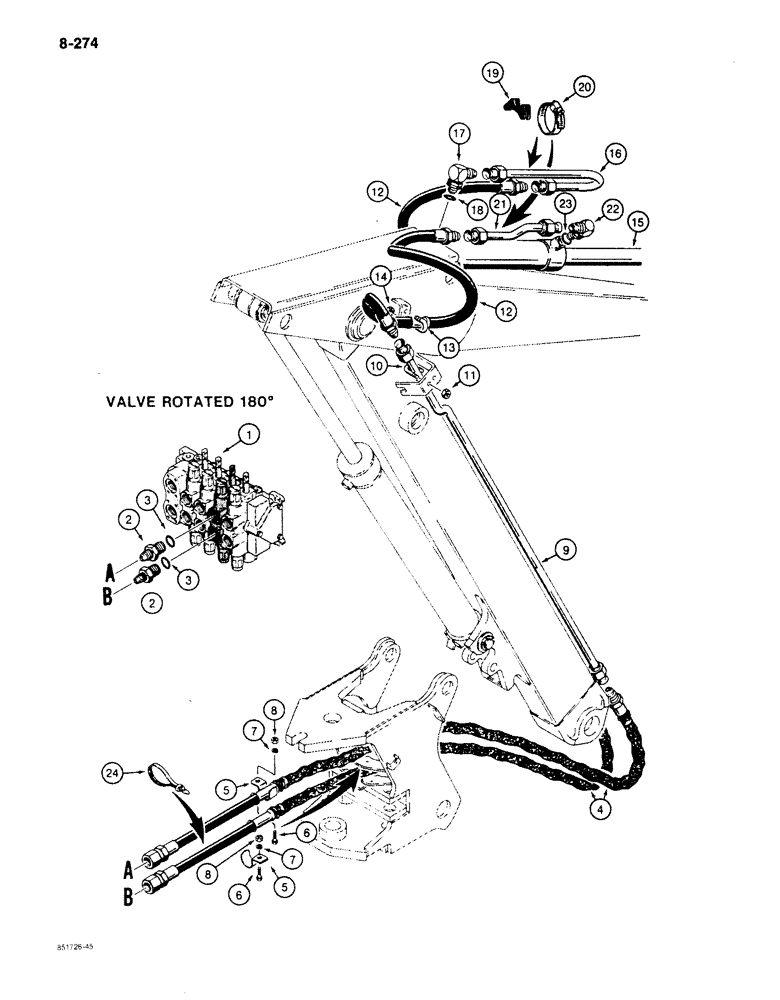

Запчасти Case 780C (8-274) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly, components, and mounting hardware, see parts list Figure 8-300

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Straight, Male, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

4

L103760

HOSE,0.75" ID x 61.00"

Control Valve to Bucket Tube

2шт.

5

L102375

CLAMP

hose

2шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

9

L103795

TUBE,1" OD x 94.1, 4.8" L

hose to bucket cylinder

2шт.

10

L78947

U-BOLT

tube clamp

2шт.

11

131-4

LOCK NUT,5/16"-18, GB

4шт.

12

L103637

HOSE,0.75" ID x 53.00", SAE 100R2AT

Tube to Bucket Cylinder, See Figure 8-276 Ref. 23 for Bucket Cylinder Hose Used on Models with Extendable Dipper

2шт.

13

L104253

U-BOLT

U-BOLT - tube clamp

2шт.

14

131-4

LOCK NUT,5/16"-18, GB

4шт.

15

G105857

CYLINDER

ASSEMBLY - bucket, parts list Figure 8-342

1шт.

16

L103644

TUBE ASSY.,15, 4.47" L

bucket cylinder, closed end

1шт.

17

L114092

ELBOW

90 degree, special, Includes: Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Elbow

1шт.

19

L79937

SADDLE

SPACER - tube

2шт.

20

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

tube to cylinder

2шт.

21

L103629

TUBE ASSY.

bucket cylinder, rod end

1шт.

22

L114092

ELBOW

90 degree, special, Includes: Ref. 23

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Elbow

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.
