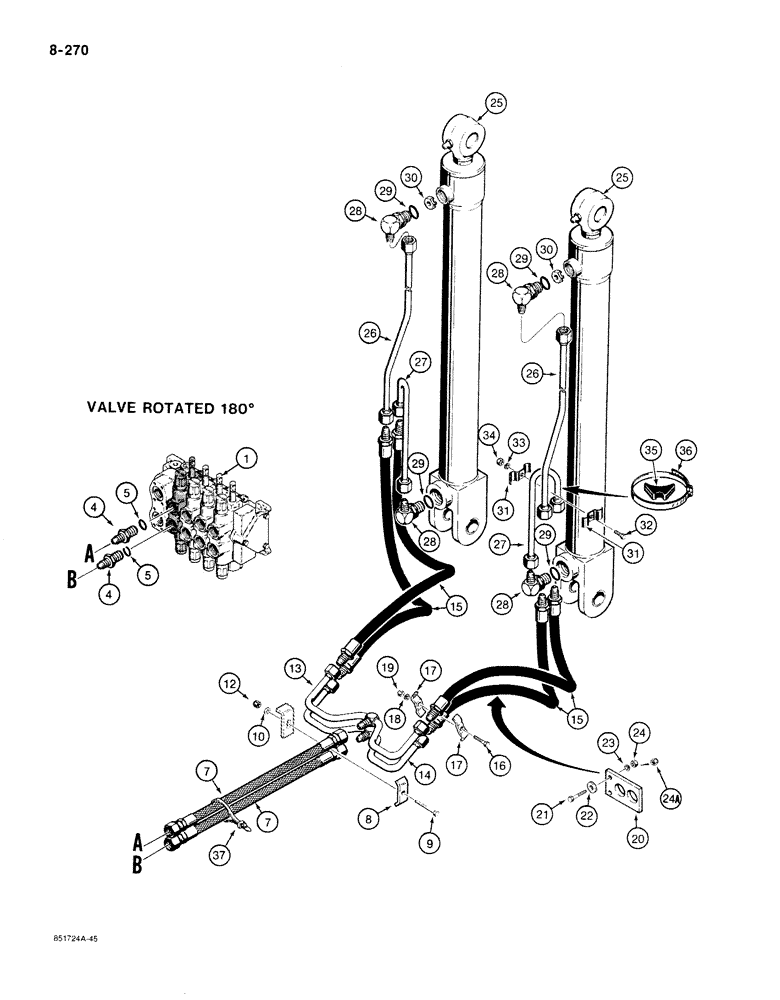

Запчасти Case 780C (8-270) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly, components, and mounting hardware, see parts list page 8-391

1шт.

4

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Straight, Male, Incl. Ref. 5

2шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

7

L103747

INTAKE AIR HOSE,19.05 mm ID x 711.20 mm

Control Valve to Boom Manifold Tubes, For models with hydraulic boom lock see Figure 8-278, Ref. 17

2шт.

8

L102643

CLAMP

hose

1шт.

9

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

10

95-6

WASHER,3/8"

1шт.

12

131-52

NUT,3/8"-16, GC

hex, self-locking, 3/8" - 16 NC, plated

1шт.

13

L103732

MANIFOLD

upper, to boom cylinder, closed end

1шт.

14

L103733

MANIFOLD

SPARE PART lower, to boom cylinder, rod end

1шт.

15

T41487

HYDRAULIC HOSE,0.30" ID x 30.00"

Manifold to boom cylinder

4шт.

16

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

17

L78057

CLAMP

hose

4шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

20

L100186

GUIDE

hose

2шт.

21

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

22

D41740

WASHER

flat. 3/8", special

4шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

No longer used, replaced by Ref. 24A self-locking nut

4шт.

24

9635082

NUT,5/16" - 18, Gr 5

No longer used, replaced by 24A self-locking nut

4шт.

24a

231-1445

NUT,5/16"-18, GB

Replaces lock washer and hex nut, Refs. 23 and 24, used on some models

4шт.

25

G103044

CYLINDER ASSY.

boom, parts list Figure 8-338

2шт.

26

L103632

TUBE ASSY.,38, 2.2" L

boom cylinder, rod end

2шт.

27

L101013

TUBE,0.75" OD x 15.2, 3" L

boom cylinder, closed end

2шт.

28

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Includes: Ref. 29

4шт.

29

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow

1шт.

30

L108606

RESTRICTOR

boom drop

2шт.

31

R15257

CLAMP

tube

4шт.

32

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

35

D38648

BLOCK

SPACER - rubber, tube clamp

2шт.

36

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

tubes to boom cylinder

2шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.
