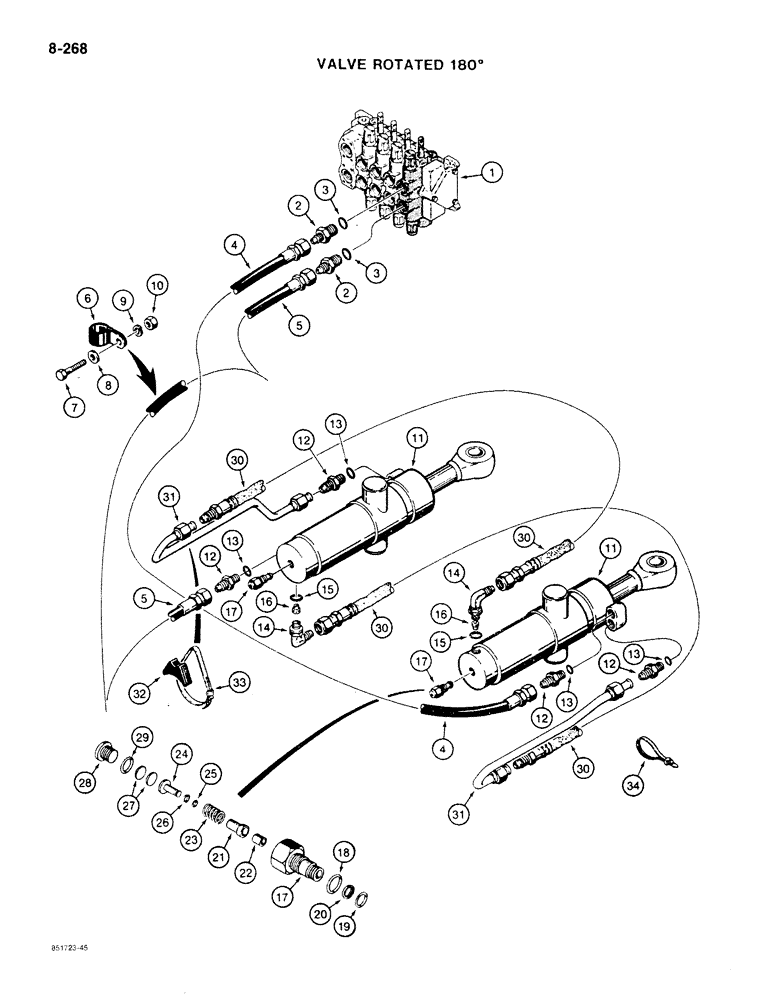

Запчасти Case 780C (8-268) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly, components and mounting hardware, see parts list Figure 8-300

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

4

L103713

HOSE

58" (1473 mm) long, right-hand, backhoe control valve to rod end of right-hand swing cylinder

1шт.

5

L106335

HOSE

61" (1549 mm) long, left-hand, backhoe control valve to left-hand swing cylinder

1шт.

6

R43738

CLAMP

swing cylinder hose left-hand, clamp to control valve, used

1шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

8

95-6

WASHER,3/8"

1шт.

9

92-6

LOCK WASHER,3/8"

1шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

11

G103072

CYLINDER

ASSEMBLY - swing, parts list Figure 8-336

2шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

straight, male, Incl. Ref 13

4шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Adapter

1шт.

14

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adjustable, Includes Ref. 15

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Elbow

1шт.

16

L108874

RESTRICTOR

check, swing cylinder, used on models without extendable dipper

2шт.

16

L103569

RESTRICTOR

RESTRICTOR check, swing cylinder, used on models with extendable dipper

2шт.

L78723

LOCK VALVE

ASSEMBLY - relief, swing cylinder, Includes: Ref. 17 - 29

2шт.

17

D47667

CAP

BODY - relief valve

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Body, outer

1шт.

19

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

body, inner

1шт.

20

D37071

RING

backup, inner O-ring

1шт.

21

D37074

PLUNGER

relief valve

1шт.

22

D37075

SEAT

plunger

1шт.

23

D37148

SPRING

plunger

1шт.

24

N7764

SPRING

GUIDE - plunger

1шт.

25

D40356

O-RING

spring guide

1шт.

26

D40357

RING

backup, O-ring

1шт.

27

L36077

SHIM

spring guide

1шт.

28

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Relief valve, Incl Ref 29

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Plug

1шт.

30

L109270

HOSE

22" (559 mm) long, crossover

2шт.

31

L109247

TUBE ASSY.

swing cylinder

2шт.

32

D38648

BLOCK

SUPPORT - tube

2шт.

33

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

tube to cylinder

2шт.

34

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.
