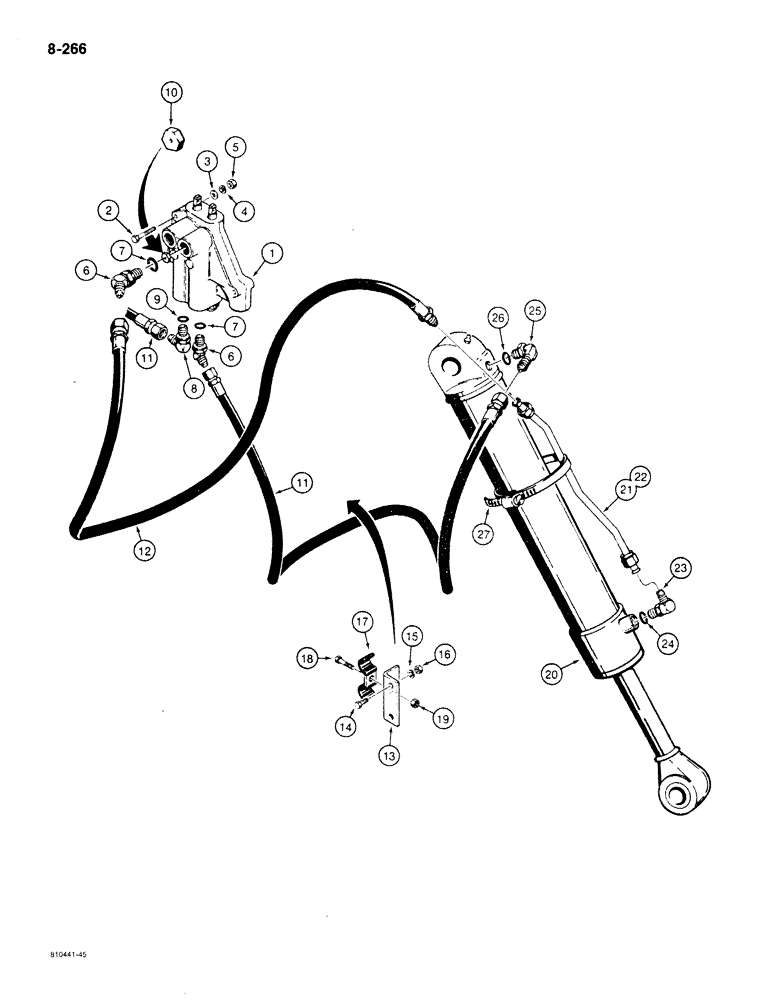

Запчасти Case 780C (8-266) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D124856

VALVE

ASSEMBLY - stabilizer control, parts list Figure 8-298

1шт.

2

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

3

195-103

WASHER,5/16"

2шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

45 degree, adjustable, Includes: Ref. 7

3шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Elbow

1шт.

8

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adjustable, Includes Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Elbow

1шт.

10

D61933

RESTRICTOR

SPARE PART upper control valve port

2шт.

11

L105243

HOSE ASSY.

68" (1727 mm) long, stabilizer control valve to stabilizer cylinder, closed end

2шт.

12

L107083

HOSE,0.50" ID x 58.00", SAE 100R2 A

58" (1473 mm) long, stabilizer control valve to stabilizer cylinder, rod end

2шт.

13

L103773

ANGLE

SPARE PART BRACKET - hose clamp

2шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

17

R15257

CLAMP

hose

2шт.

18

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

19

131-52

NUT,3/8"-16, GC

hex, self-locking, 3/8" - 16 NC, plated

2шт.

20

G103057

CYLINDER ASSY.

stabilizer, parts list Figure 8-334

2шт.

21

L103803

TUBE ASSY.,0.625" OD

stabilizer cylinder, left-hand

1шт.

22

L103805

TUBE ASSY.,0.625" OD

stabilizer cylinder, right-hand

1шт.

23

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Incl. Ref. 24

2шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Elbow

1шт.

25

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

90 degree, adjustable, Includes: Ref. 26

2шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Elbow

1шт.

27

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

tube to cylinder

2шт.
