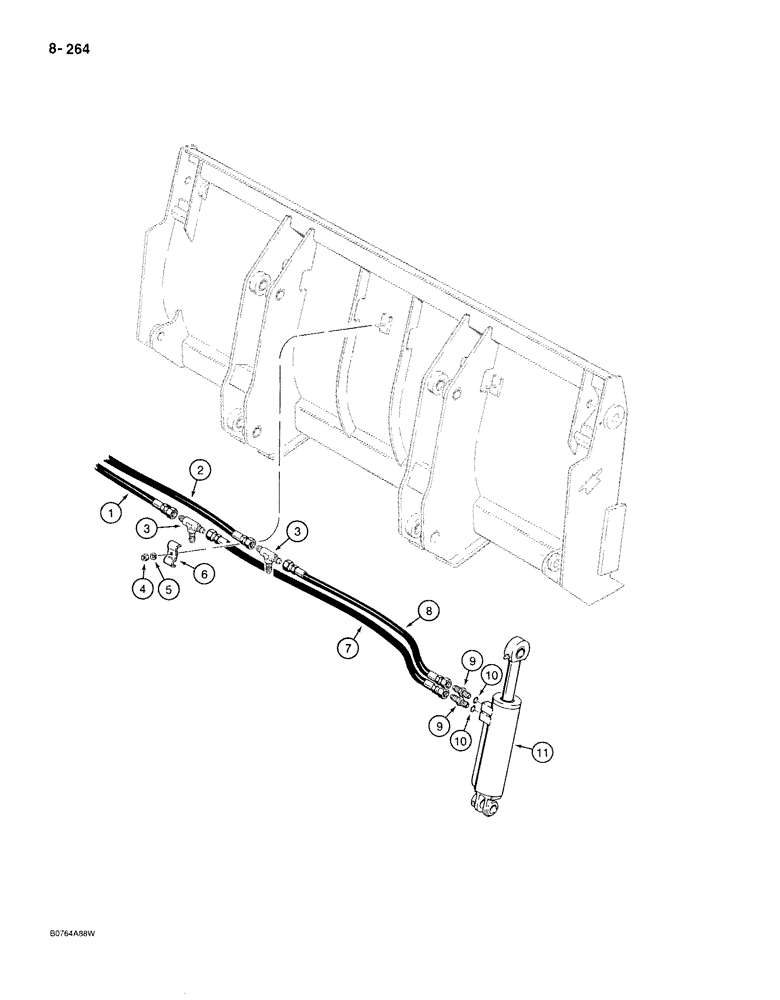

Запчасти Case 780C (8-264) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT, D139626 1-3/4 CUBIC YARD BUCKET (08) - HYDRAULICS

1

D143219

HOSE

36" (914 mm) long, lower left-hand

1шт.

2

D143218

HOSE

54" (1372 mm) long, upper left-hand

1шт.

3

218-806

TEE,7/8"-14, 37 Degree, Blkhd

Hydraulic, clam cylinder hoses

2шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

3шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

S64754

CLAMP - hose support

3шт.

7

D143221

HOSE

53" (1346 mm) long, lower right-hand

1шт.

8

D143220

HOSE

37" (940 mm) long, upper right-hand

1шт.

9

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight, cylinder to hose, Incl. Ref. 10

4шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Adapter

2шт.

11

D143217

CYLINDER ASSY.

clam, parts list Figure 8-332

2шт.
