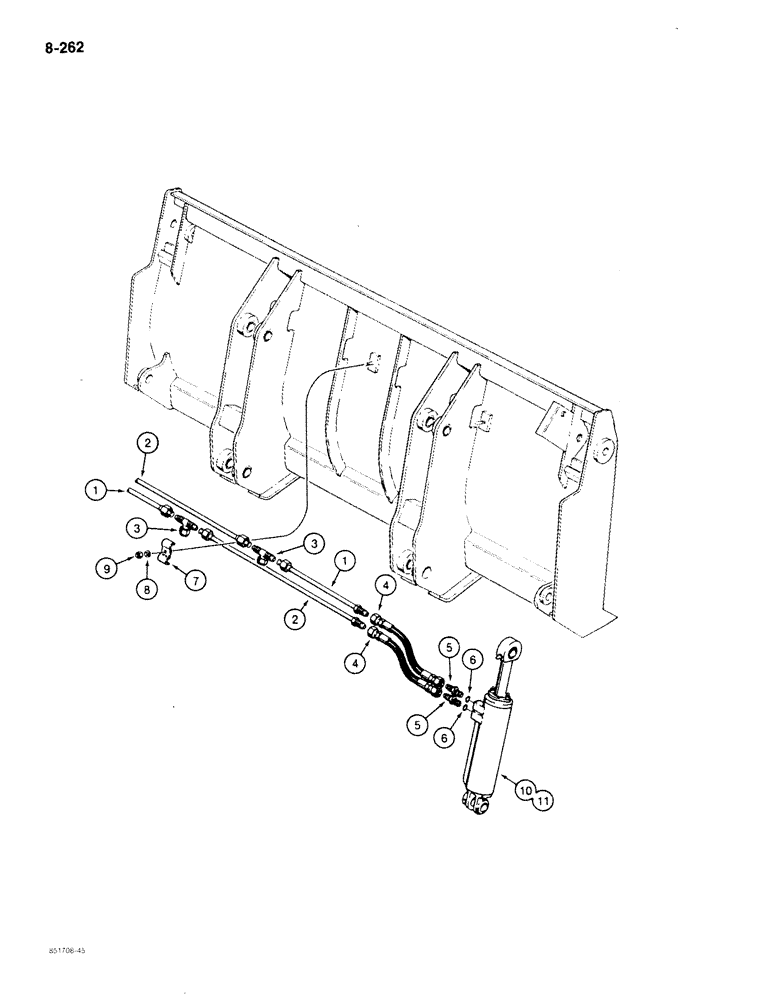

Запчасти Case 780C (8-262) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT, L108616 1-1/2 CUBIC YARD BUCKET (08) - HYDRAULICS

1

S201705

TUBE,14.8" L

valve to cylinder

2шт.

2

S218812

NUT,0.625" OD x 35" L

TUBE - valve to cylinder

2шт.

3

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

TEE - swivel, tube to tube

2шт.

4

S8577

HOSE

20" (508 mm) long, Serial Range: cylinder-tube

4шт.

5

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight, cylinder to hose, Incl. Ref. 6

4шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Adapter

1шт.

7

D44073

CLAMP

tube support

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

3шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic, clam, right-hand, for correct assembly and components, see parts list Figure 8-328 or 8-330

1шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic, clam, left-hand, for correct assembly and components, see parts list Figure 8-328 or 8-330, not shown

1шт.
