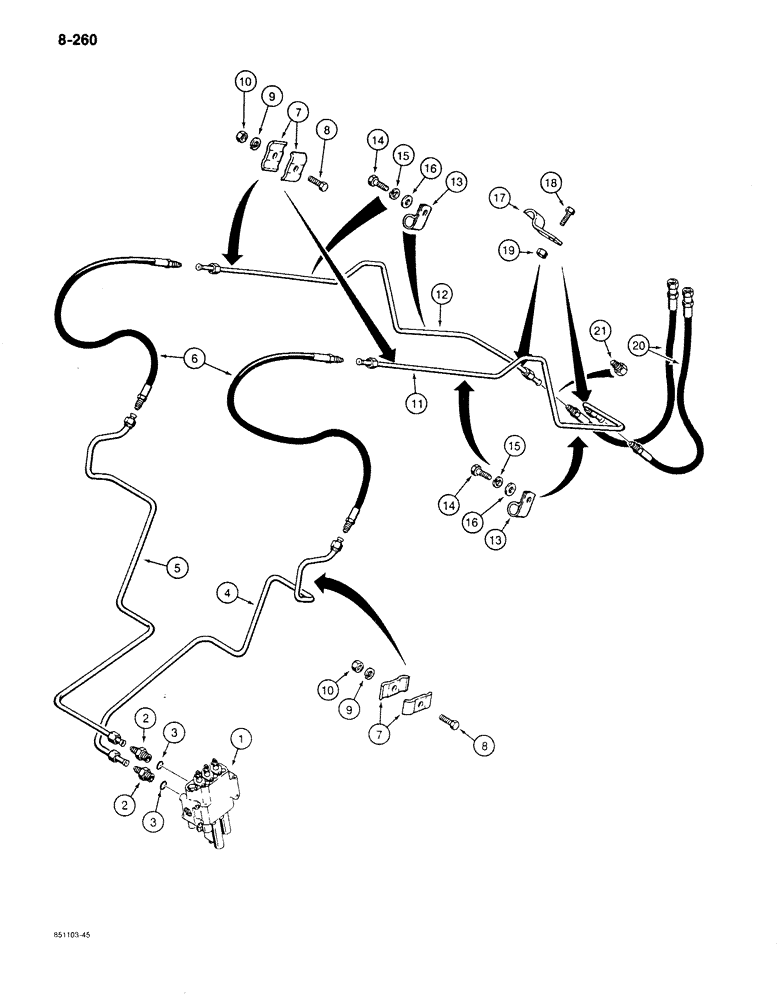

Запчасти Case 780C (8-260) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, three spool, parts list Figure 8-288

1шт.

2

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

straight, male, Includes: Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Adapter

1шт.

4

L107576

TUBE,0.625" OD x 34.19, 11.22" L

control valve to bucket, clam cylinder, right-hand

1шт.

5

L107574

TUBE,0.625" OD

control valve to bucket, clam cylinder, left-hand

1шт.

6

L57599

HOSE ASSY.,12.7mm ID x 939.8mm L, SAE 100R2

37" (940 mm) long, control valve to lift frame and tubes

2шт.

7

L100272

CLAMP

tube

8шт.

8

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

4шт.

11

L107578

TUBE,0.625" OD

bucket, clam cylinder, right-hand

1шт.

12

L107572

TUBE,0.625" OD

bucket, clam cylinder, left-hand

1шт.

13

C34174

CLAMP - tube

4шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

15

192-21

LOCK WASHER,3/8"

4шт.

16

195-104

WASHER,3/8"

flat, , plated 3/8"

4шт.

17

L104914

CLAMP

tube

2шт.

18

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

19

131-203

LOCK NUT,3/8"-16, GB, LH

hex, self-locking, 3/8" - 16 NC, plated

2шт.

20

L53419

HOSE

SPARE PART 43" (1092 mm) long, lift frame tubes to clam cylinders, male fittings on both ends, used with L108616 clam bucket hydraulics on page 8-263, not shown

2шт.

20

L50629

HOSE ASSY.

48" (1219 mm) long, lift frame tubes to clam cylinders, one male and one female fitting, used with D139626 clam bucket hydraulics on pge 8-265

2шт.

21

218-776

PLUG,7/8"-14, 37 Degree

hex head, if used, not required when clam bucket is attached

2шт.
