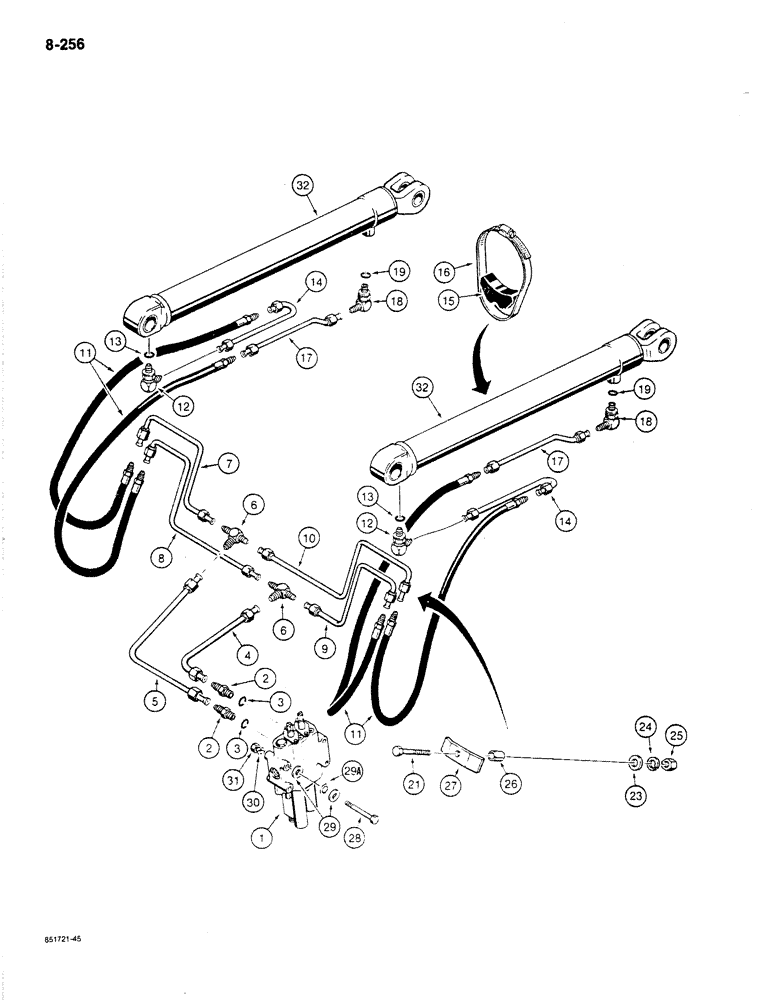

Запчасти Case 780C (8-256) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see parts list Figure 8-286 or 8-288

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Straight, male, Incl. Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Adapter

1шт.

4

L103163

TUBE,0.75" OD x 13.85, 4.34" L

lift spool upper port to tee

1шт.

5

L103157

TUBE,0.75" OD x 15.49, 13.34" L

lift spool lower port to tee

1шт.

6

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

TEE - male, loader lift tubes

2шт.

7

L103115

TUBE,0.625" OD

SPARE PART tee to left-hand hose

1шт.

8

L103113

TUBE,0.625" OD

tee to left-hand hose

1шт.

9

L103100

TUBE,0.625" OD x 9.64, 11.67" L

tee to right-hand hose

1шт.

10

L103098

TUBE,0.625" OD x 22.23, 8.86" L

SPARE PART tee to right-hand hose

1шт.

11

L57599

HOSE ASSY.,12.7mm ID x 939.8mm L, SAE 100R2

37" (940 mm) long, control valve to lift cylinders

4шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref. 13

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Elbow

1шт.

14

L103144

TUBE,0.625" OD x 19, 2.5" L

lift cylinder, closed end

2шт.

15

D38648

BLOCK

SPACER - rubber, tube and cylinder

4шт.

16

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

tube to cylinder

4шт.

17

L103146

TUBE,0.625" OD x 15.9, 1.65" L

lift cylinder, rod end

2шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref. 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Elbow

1шт.

21

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

23

95-6

WASHER,3/8"

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

26

D76209

SPACER

tube clamp

2шт.

27

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

28

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

3шт.

29

195-106

WASHER,1/2"

flat, plated

6шт.

29a

193-77

LOCK WASHER,Int Tooth, 1/2"

If used

1шт.

30

192-23

LOCK WASHER,1/2"

3шт.

31

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

32

G103073

CYLINDER ASSY.

hydraulic, loader lift, parts list Figure 8-324

2шт.
