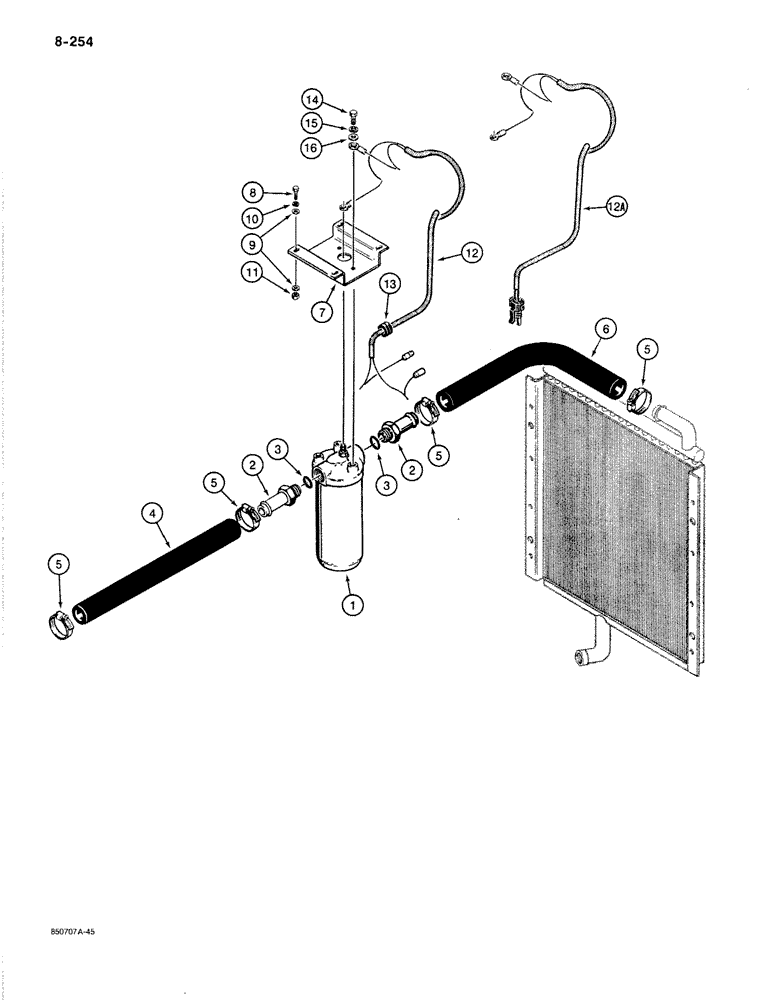

Запчасти Case 780C (8-254) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER TO FILTER (08) - HYDRAULICS

1

L114122

FILTER

ASSEMBLY - hydrualic oil, parts list Figure 8-322

1шт.

Filter package A45625 includes (2) elements and (2) gaskets.

1шт.

2

217-199

FITTING

stem, straight, hose to filter, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

stem fitting

1шт.

4

D129186

HOSE ASSY.

filter to hydraulic reservoir

1шт.

5

D135550

CLAMP

hose, filter to hydraulic reservoir and cooler

4шт.

6

D129185

HOSE,38.1 mm ID x 863.60 mm

Oil Cooler to Filter

1шт.

7

D136209

BRACKET

filter to hood mounting

1шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

9

195-103

WASHER,5/16"

8шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

No longer used, not required

4шт.

11

131-665

LOCK NUT,5/16"-18, GB

hex, self locking, 5/16" - 18 NC

4шт.

12

L105248

HARNESS

filter to front harness, used on models with 24 volt circuit

1шт.

12a

D137702

HARNESS

filter to front harness, used on models with 12 volt electrical circuit

1шт.

13

A27338

GROMMET

filter harness

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

15

192-21

LOCK WASHER,3/8"

3шт.

16

195-104

WASHER,3/8"

flat, , plated 3/8"

3шт.
