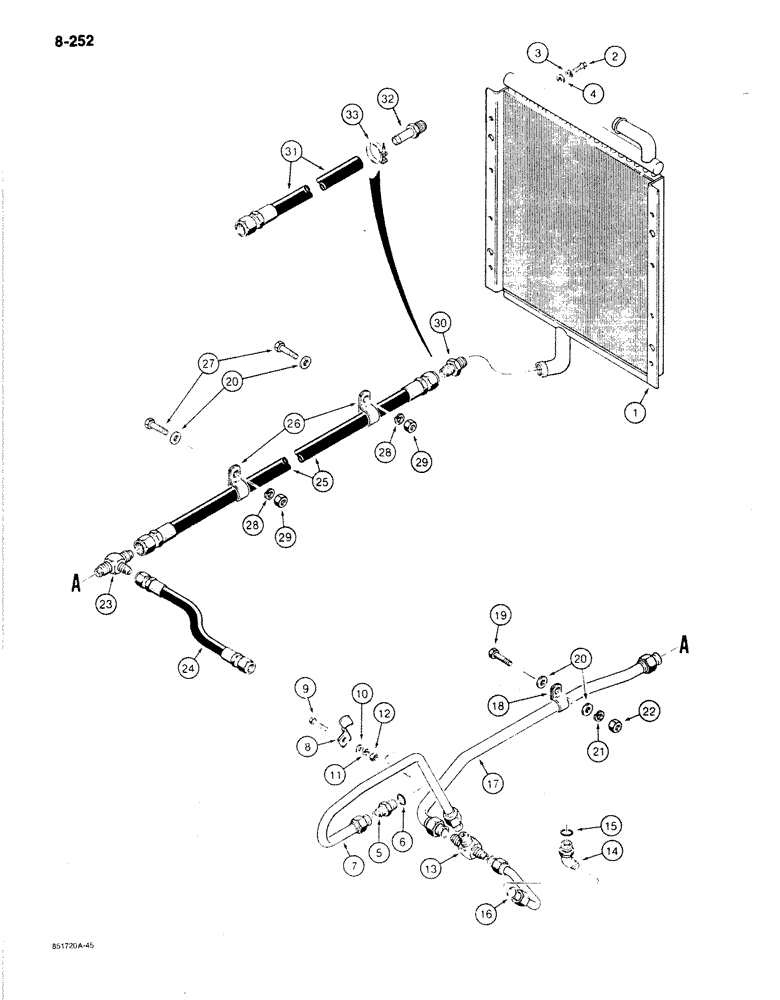

Запчасти Case 780C (8-252) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER AND RETURN LINES (08) - HYDRAULICS

1

A172097

COOLER, OIL

hydraulic system

1шт.

2

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

12шт.

3

892-1108

LOCK WASHER,M8

plated

12шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

5

218-5049

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

straight, backhoe valve return port, Includes: Ref. 6

1шт.

6

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Adapter

1шт.

7

L106525

TUBE ASSY.,1.5" OD

backhoe control valve return, models without hydraulic boom lock or extendable dipper

1шт.

7

L106521

TUBE ASSY.,1.5" OD

backhoe control valve return, models with extendable dipper and without hydraulic boom lock

1шт.

7

L105519

TUBE ASSY.

backhoe control valve return, models with hydraulic boom lock and without extendable dipper, not shown

1шт.

7

L106841

TUBE ASSY.

backhoe control valve return, models with hydraulic boom lock and extendable dipper, not shown

1шт.

8

A12298

CLAMP

return tube

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

10

195-104

WASHER,3/8"

flat, , plated 3/8"

1шт.

11

192-21

LOCK WASHER,3/8"

1шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

13

L104115

TEE

valve return tubes

1шт.

14

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, stabilizer valve return port, Incl. Ref 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Elbow

1шт.

16

L104218

TUBE ASSY.,0.625" OD

stabilizer control valve return

1шт.

17

L104233

TUBE ASSY.,1.5" OD

SPARE PART backhoe return

1шт.

18

D47198

CLAMP

return, Serial Range: tube-chassis

1шт.

19

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

20

195-106

WASHER,1/2"

flat, plated

4шт.

21

192-23

LOCK WASHER,1/2"

1шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

23

L105255

TEE

SPARE PART return lines

1шт.

24

L77087

HOSE

20" (508 mm) long, crossover, from loader control valve, connects to Ref. 11A in Figure 8-248

1шт.

25

L111266

HOSE ASSY.

74" (1880 mm) long, backhoe return to oil cooler, used Ref. 30 adapter, no longer used, order D135479 hose, 217-157 stem fitting, and D135549 clamp

1шт.

26

S98801

CLAMP

return, Serial Range: hose-chassis

2шт.

27

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

28

192-23

LOCK WASHER,1/2"

2шт.

29

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

30

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

straight, hose to cooler, if used

1шт.

31

D135479

HOSE

74" (1880 mm) long, backhoe return to oil cooler, used with Refs. 32 and 33

1шт.

32

217-157

FITTING,1-1/4" Hose Barb x 1-1/4" Male NPTF

stem, straight

1шт.

33

D135549

CLAMP

hose

1шт.
