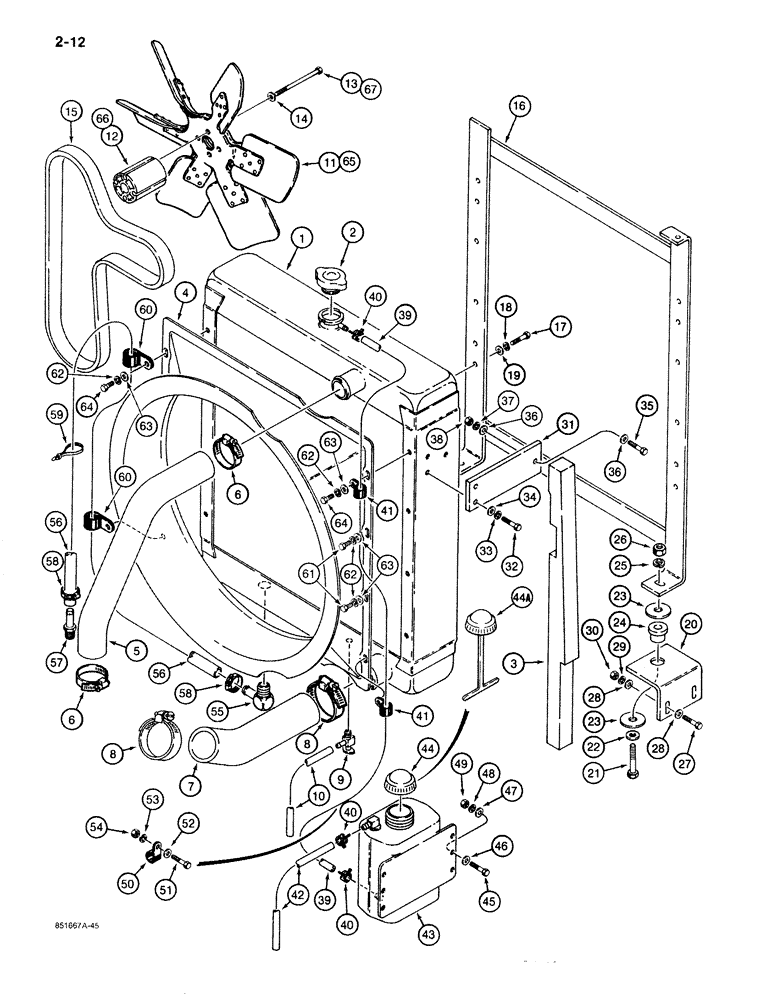

Запчасти Case 780C (2-12) - RADIATOR, FAN, AND MOUNTING PARTS (02) - ENGINE

1

A172138

RADIATOR

engine cooling

1шт.

2

A170241

RADIATOR CAP

Filler, 15 psi, Includes: Ref. 3

1шт.

3

D128680

BAFFLE

26-3/4" (680 mm) long, radiator, side, cut to fit from D92228 bulk, see below

2шт.

4

A171622

SHROUD

radiator

1шт.

5

L110807

HOSE,44.40 mm ID x 309.90 mm, SAE 20R4 Class C or D-1

(Replaces D144202)

1шт.

6

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

upper radiator

2шт.

7

D144202

HOSE,2.25" ID x 10.75", SAE J20, SAE 20R4 CLASS C or SAE 20R4 CLASS D1 or D2

Lower

1шт.

8

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

lower radiator

2шт.

9

A27862

COCK, DRAIN

VALVE - radiator

1шт.

10

L60451

HOSE

1/4" (6 mm) ID x 27" (686 mm) long, drain, cut to required length from H400184 hose, if used, see below

1шт.

11

A171580

FAN

suction, has 50 mm bolt circle, reference Figure 2-26 (Ref. 10 pulley), if used

1шт.

12

A172592

SPACER

fan, use with Ref. 11, A171580 fan, and Ref. 13, 827-8100 bolt

1шт.

13

827-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 10.9

with Ref. 11, A171580 fan and Ref. 12, A172592 spacer

4шт.

14

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, 3/8", hardened, plated

4шт.

15

J903099

V-BELT,3.56 mm W x 1574.80 mm L, 8 Ribs

Fan and Alternator

1шт.

D129916

BELT,12.70 mm W x 1124.00 mm L

Brake, Air Compressor Drive, Not Shown, See Figure 7-216 (Ref. 13)

1шт.

16

L113305

SUPPORT ASSY.

SPARE PART radiator

1шт.

17

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

12шт.

18

892-1108

LOCK WASHER,M8

12шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

20

L113306

BRACKET

SPARE PART radiator support

2шт.

21

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

2шт.

22

195-106

WASHER,1/2"

2шт.

23

195-2055

WASHER,17/32" x 2 1/4" x .180"

flat, 1/2", special, plated

4шт.

24

L46821

SHOCK ABSORBER

radiator mounting

2шт.

25

192-23

LOCK WASHER,1/2"

2шт.

26

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

27

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

28

195-104

WASHER,3/8"

4шт.

28a

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat, 3/8", hardened, plated

4шт.

29

192-21

LOCK WASHER,3/8"

4шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

31

L111260

STRAP

radiator mounting

2шт.

32

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

33

892-1108

LOCK WASHER,M8

4шт.

345-44

ADHESIVE

spray can, for attaching foam pads to metal surface, not shown

1шт.

D92228

BAFFLE

bulk pad, 35-1/2" (900 mm) x 55-1/8" (1400 mm) x 1-1/2" (38 mm), use to cut Ref. 3, not shown

1шт.

H400184

FUEL HOSE,6.35 mm ID x 1905.00 mm, SAE 30R1, SAE 30R3

Cut from Bulk Hose

1шт.

34

195-103

WASHER,5/16"

4шт.

35

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

36

195-104

WASHER,3/8"

4шт.

37

192-21

LOCK WASHER,3/8"

2шт.

38

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

39

L112140

HOSE,0.31" ID x 70.00", SAE 30R6

radiator to reservoir

1шт.

40

A171099

HOSE CLAMP,13.2mm - 15.4mm

3шт.

41

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

P-type, hose to radiator shroud

2шт.

42

A171871

HOSE,7.50 mm ID, 8.30 mm ID x 600.00 mm, SAE J30

Coolant overflow

1шт.

43

A171773

CONTAINER

coolant recovery bottle

1шт.

44

A171775

CAP

screw-on, reservoir, no longer available, order A184079 cap

1шт.

44a

A184079

CAP

tether, reservoir

1шт.

45

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

46

196-2

WASHER,3/8" x 7/8" x .083", HDN

SPARE PART flat, 5/16", hardened, plated

2шт.

47

195-103

WASHER,5/16"

2шт.

48

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

49

9635082

NUT,5/16" - 18, Gr 5

2шт.

50

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

P-type

1шт.

51

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

52

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat, 3/8", hardened, plated

1шт.

53

192-21

LOCK WASHER,3/8"

1шт.

54

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

55

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

stem

1шт.

56

R40427

HOSE - 5/8" (16 mm) ID x 5-1/2 ft (167.6 cm) long, cut to required length from A42610 hose, Serial Range: engine-radiator

1шт.

57

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

stem, straight

1шт.

58

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

engine to radiator hose

2шт.

59

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

60

R14668

CLAMP

, Serial Range: hose-shroud

2шт.

61

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

62

892-1108

LOCK WASHER,M8

8шт.

63

195-103

WASHER,5/16"

8шт.

64

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

65

A173559

FAN

suction, has 60 mm bolt circle, reference Figure 2-27 (Ref. 10 pulley), if used

1шт.

66

A184524

SPACER

fan, use with Ref. 65, A173559 fan and Ref. 67, 814-10110 bolt

1шт.

67

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

Use with Ref. 65, A173559 fan and Ref. 66, A184524 spacer

4шт.

A42610

LARGE HOSE

HOSE,LARGE bulk, 5/8" (16 mm) ID x 50 ft (1524 cm) long

1шт.
