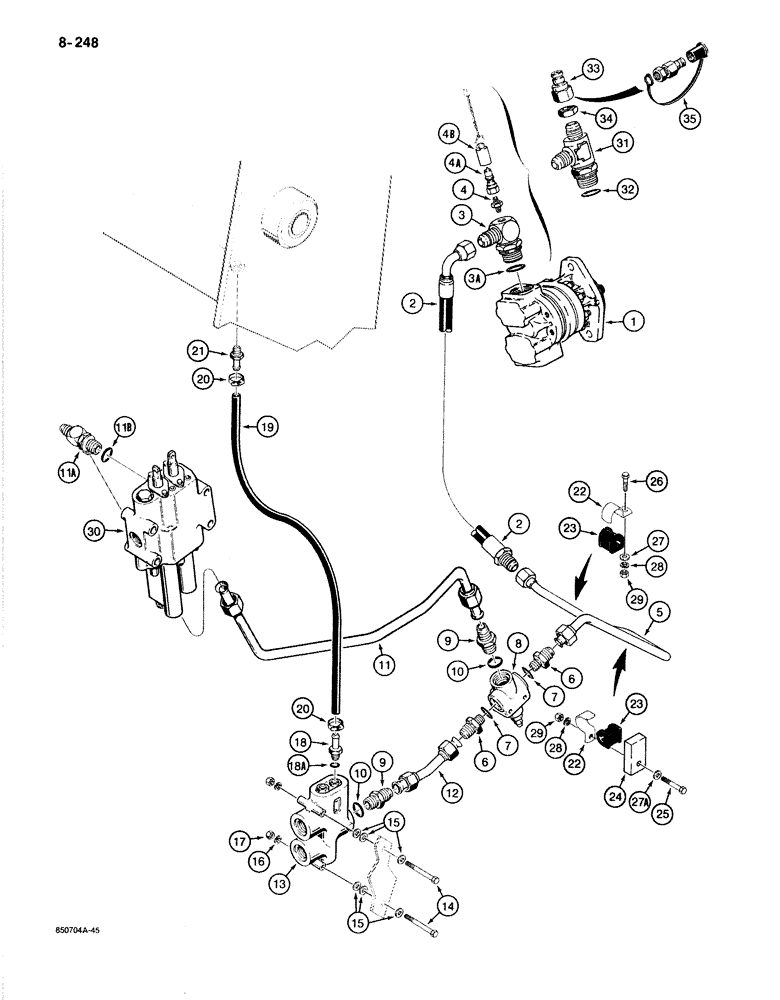

Запчасти Case 780C (8-248) - EQUIPMENT HYDRAULIC SYSTEM, BACKHOE SUPPLY FROM STEERING PUMP TO RELIEF, FLOW & LOADER CONTROL VALVE (08) - HYDRAULICS

1

D127917

PUMP

ASSEMBLY - front, steering hydraulic, parts list Figure 8-282, for mounting hardware see Figure 8-246

1шт.

2

L110999

HOSE

23" (584 mm) long, hydraulic pump to backhoe relief valve

1шт.

3

H289058

ADAPTER

90 degree, special, if used, may be replaced by tee on some models, Includes: Ref. 3A

1шт.

3a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow, if used

1шт.

4

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

Straight, pressure check, if used

1шт.

4a

S206607

DISC

COUPLING - pressure check, if used

1шт.

4b

S206608

CAP

dust, if used

1шт.

5

L110972

TUBE,0.75" OD

to backhoe relief valve

1шт.

6

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

straight, male, Includes: Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Adapter

1шт.

8

D131348

LOCK VALVE

ASSEMBLY - relief, backhoe, parts list Figure 8-320

1шт.

9

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Straight, male, Incl. Ref. 10

2шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Adapter

1шт.

11

D127014

TUBE

relief valve return

1шт.

11a

218-5585

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

relief valve to oil cooler return line, see Ref. 24 in Figure 8-252, Includes: Ref. 11B

1шт.

11b

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Tee

1шт.

12

L103972

TUBE,0.75" OD x 6.4, 1.85" L

relief valve to flow control valve

1шт.

13

L102602

LOCK VALVE

ASSEMBLY - flow control, hydraulic, parts list Figure 8-318

1шт.

14

113-159

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

2шт.

15

196-2

WASHER,3/8" x 7/8" x .083", HDN

SPARE PART flt, 5/16", hardened, plated

6шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

2шт.

18

217-193

FITTING,1/4" Hose Barb x 7/16" - 20 Male ORB

stem, straight hose, Includes: Ref. 18A

1шт.

18a

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk, stem fitting

1шт.

19

L102879

HOSE ASSY.

31" (787 mm) long, flow control

1шт.

20

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

21

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

stem, straight hose, at hydraulic reservoir

1шт.

22

D74192

CLAMP

tube, backhoe relief

2шт.

23

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR - tube clamp

2шт.

24

L107114

SPACER

tube clamp

2шт.

25

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

26

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

27

95-6

WASHER,3/8"

1шт.

27a

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat. 3/8", hardened, plated

1шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

30

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see parts list Figure 8-286 or 8-288

1шт.

31

218-5585

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

adjustable male, if used, replaces elbow used on some models, Includes: Ref. 32

1шт.

32

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

tee

1шт.

33

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Assy - Quick disconnect, component parts not serviced separately, if used, Includes Ref. 34

1шт.

34

129-132

NUT,1 1/4"-12, G5

1шт.

35

H434163

DUST CAP

Coupling, if used

1шт.
