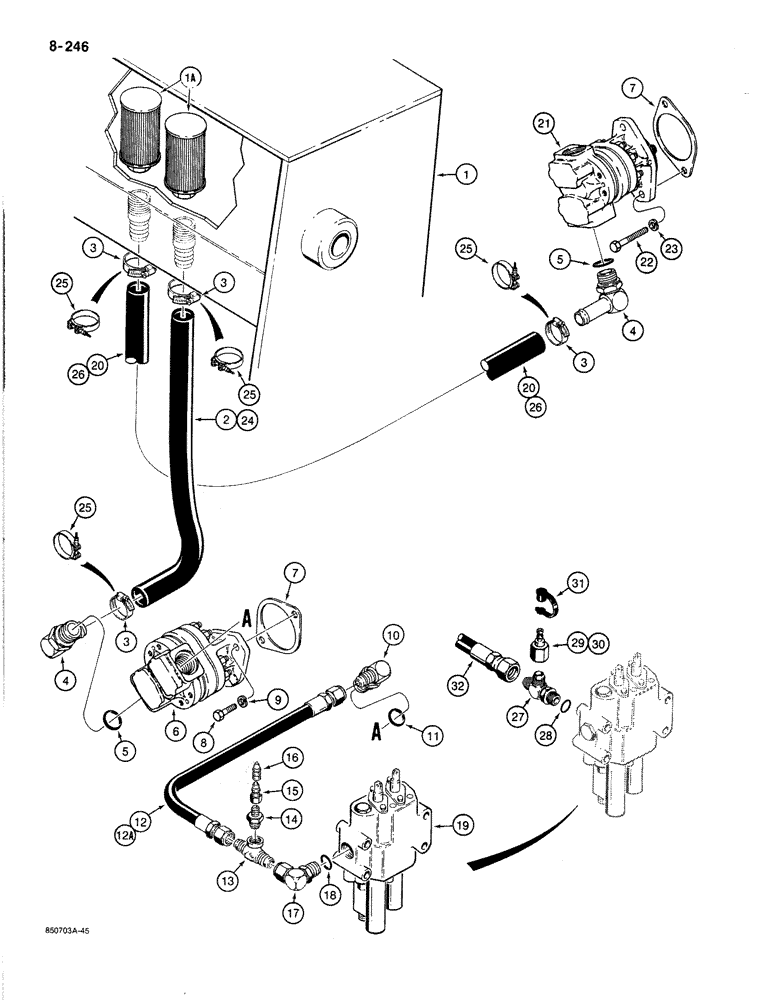

Запчасти Case 780C (8-246) - EQUIPMENT HYDRAULIC SYSTEM, RESERVOIR TO HYDRAULIC PUMPS AND LOADER CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR - hydraulic, see Figure 9-410

1шт.

1a

D128526

FILTER CARTRIDGE

SCREEN - suction, reservoir filter

2шт.

2

L103811

HOSE,1.25" ID x 30.00", SAE 100R1A

Suction, to Rear Pump, Used with Ref. 3 Clamp, No Longer Available, Order S119472 Hose and D135549 Clamp, Refs. 24 and 25

1шт.

3

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

If used

4шт.

4

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Adjustable, Includes Ref. 5

2шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Stem fitting

1шт.

6

D127915

PUMP, HYDRAULIC

ASSEMBLY - rear, equipment hydraulic, parts list Figure 8-284

1шт.

7

A77441

GASKET

rear pump to transmission, front, Serial Range: pump-engine

2шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, hydraulic pump outlet, Includes: Ref. 11

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow

1шт.

12

D140482

HOSE ASSY.

27-9/16" (700 mm) long, rear pump to loader control valve, used with 2 spool valve on models with Ref. 17 elbow at control valve side inlet port

1шт.

12a

L55955

HOSE ASSY.

26-1/2" (673 mm) long, rear pump to loader control valve, used with 3 spool valve on models with Ref. 17 elbow at control valve side inlet port

1шт.

13

218-576

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

pressure check, if used

1шт.

14

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

straight, tee to coupling, if used

1шт.

15

S206607

DISC

COUPLING - pressure check, if used

1шт.

16

S206608

CAP

dust, if used

1шт.

17

L59310

ELBOW UNION

Union Elbow 90 degree, at loader control valve side inlet port, if used, Includes: Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Elbow

1шт.

19

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see parts list Figure 8-286 or 8-288

1шт.

20

L111003

HOSE,1.25" ID x 48.00", SAE 100R1A

Reservoir to Front Hydraulic Pump, Used wtih Ref. 3 Clamp, No Longer Available, Order D135498 and D135549 Clamp, Ref. 25 and 26

1шт.

21

D127917

PUMP

ASSEMBLY - front, steering hydraulic, parts list Figure 8-282

1шт.

22

814-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8

hex head, 12 mm - 1.75 x 75 mm (8.8), plated

2шт.

23

892-1112

LOCK WASHER,M12

2шт.

24

S119472

HOSE

30" (762 mm) long, Suction, to rear pump, Used with Ref. 25 clamp

1шт.

25

D135549

CLAMP

T-bolt type, hose, if used

4шт.

26

D135498

HOSE

46" (1168 mm) long, reservoir to front hydraulic pump, used with Ref. 25 clamp

1шт.

27

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

TEE - adjustable, male, used on models with hex plug at control valve side inlet port, if used, Includes: Ref. 28

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Tee

1шт.

29

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Assy - Quick disconnect, component parts not serviced separately, if used, Includes Ref. 30

1шт.

30

129-132

NUT,1 1/4"-12, G5

1шт.

31

H434163

DUST CAP

Coupling, if used

1шт.

32

L54137

HOSE ASSY.

25" (635 mm) long, rear pump to loader control valve, used with 2 or 3 spool valve on models with hex plug at loader valve side inlet port

1шт.
