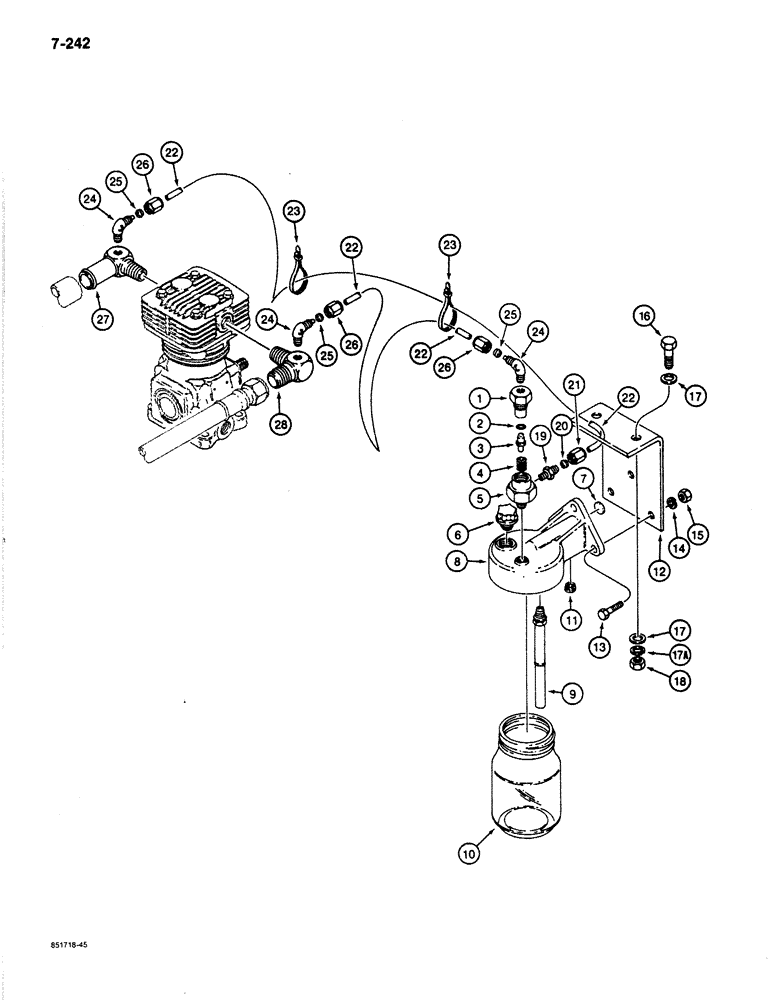

Запчасти Case 780C (7-242) - ALCOHOL EVAPORATOR (07) - BRAKES

D102183

KIT

EVAPORATOR ASSEMBLY - alcohol, tractor, Includes: Ref. 1 - 28

1шт.

L46372

KIT

alcohol evaporator, Includes: Ref. 1 - 11B

1шт.

L33157

VALVE

ASSEMBLY - check, alcohol evaporator, Includes: Ref. 1 - 5

1шт.

1

L33162

NUT

cap

1шт.

2

L33161

O-RING,0.299" ID x 0.072" Width

GROMMET - check valve

1шт.

3

L33160

VALVE

check, alcohol evaporator

1шт.

4

L33159

SPRING

check valve

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - check valve

1шт.

L33145

EVAPORATOR

JAR ASSEMBLY - includes cover, alcohol evaporator, Includes: Ref. 6 - 11

1шт.

6

L33151

PLUG

filler

1шт.

7

41-102

PLUG,Exp, 1/2"

expansion, 1/2", plated

1шт.

8

L33146

BODY

COVER - alcohol evaporator

1шт.

9

L33152

TUBE,0.25" ID x 0.33" OD x 4.87" L

alcohol evaporator

1шт.

10

L33154

RESERVOIR

JAR - alcohol evaporator, plastic

1шт.

11

L33150

FILTER

air intake

1шт.

11a

L31457

GASKET

adapter, not shown

2шт.

These Refs. are included in L46372 kit but not used on the 780C.

1шт.

11b

L32930

ADAPTER

ADAPTER - compressor, not shown

1шт.

These Refs. are included in L46372 kit but not used on the 780C.

1шт.

12

L107271

BRACKET

alcohol evaporator mounting

1шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

3шт.

15

7770

NUT,Hex, 1/4 - 20, Cl 5

3шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

17

195-103

WASHER,5/16"

4шт.

17a

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

2шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

ASSEMBLY - straight, compression fitting, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

20

222-5047

SLEEVE,1/4" Tube

compression fitting

1шт.

21

222-5060

NUT,1/2"-20

compression fitting

1шт.

22

L100713

TUBE,0.25" OD x 66" L

66" (1676 mm) long, jar to compressor, cut as required

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

ASSEMBLY - 90 degree, compression fitting, Includes: Ref. 24 - 26

3шт.

24

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree

1шт.

25

222-5047

SLEEVE,1/4" Tube

compression fitting

1шт.

26

222-5060

NUT,1/2"-20

compression fitting

1шт.

27

L107160

FITTING

special, replaces existing air compressor elbow

1шт.

28

D135322

ELBOW

90 degree, special, replaces existing air compressor

1шт.
