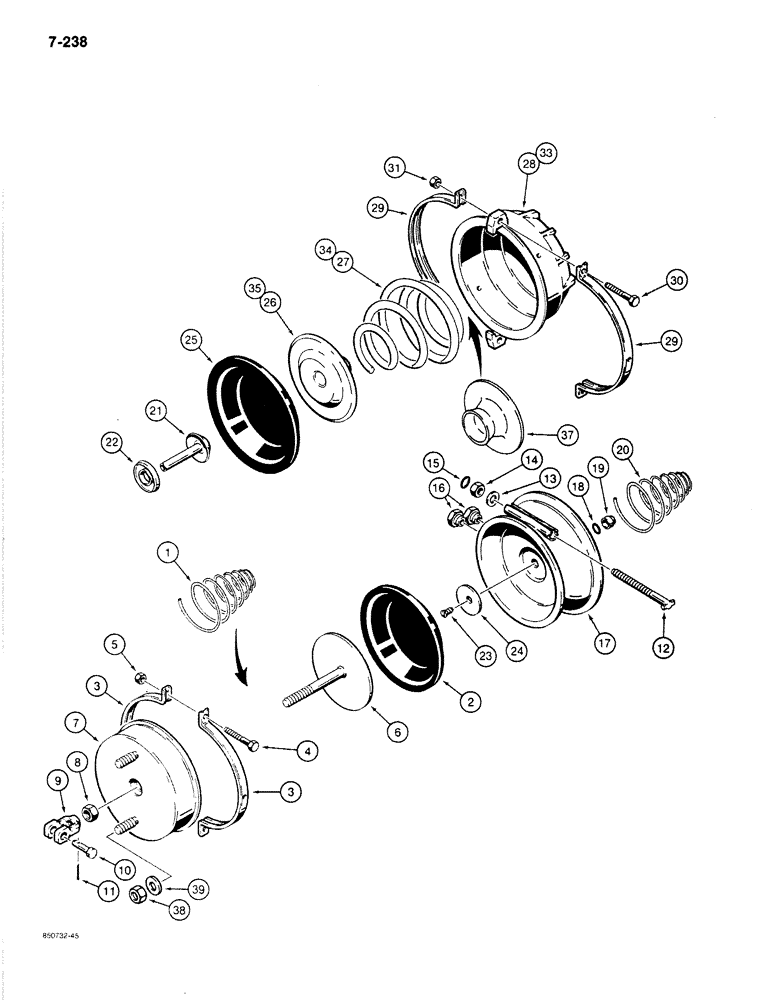

Запчасти Case 780C (7-238) - BRAKE SYSTEM, L105169 BRAKE ACTUATOR (07) - BRAKES

L105169

ACTUATOR

ASSEMBLY - brake, Aeroquip No. KSD2430AC-00032 with aluminum end cap or KSD2430CC-00096 with steel end cap, Includes: Ref. 1 - 28

2шт.

1

N7129

VALVE SPRING

push rod return

1шт.

2

L35610

DIAPHRAGM

brake actuator

1шт.

L35605

CLAMP

ASSEMBLY - brake actuator, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP - brake actuator

2шт.

4

114-213

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5

2шт.

5

25-176

NUT,3/8"-24, G5, Hvy

hex, heavy, 3/8" - 24 NF

2шт.

6

L35626

ROD

SPARE PART pressure, brake actuator

1шт.

7

N7131

COVER ASSY

SPARE PART actuator

1шт.

8

129-167

JAM NUT,Jam, 5/8"-18, G5

1шт.

S84585

YOKE

ASSEMBLY - brake actuator, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

YOKE - brake actuator

1шт.

10

L33649

AXLE PIN

yoke

1шт.

11

132-310

COTTER PIN,1/8" x 1"

1шт.

12

N7132

BOLT

T-BOLT - special

1шт.

13

195-106

WASHER,1/2"

flat, plated

1шт.

14

N7133

NUT

special

1шт.

15

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

special, used on models with alumnimum end cap, Aeroquip No. KSD2430AC-00032 brake actuator assembly only

1шт.

16

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

REDUCER - 3/8" x 1/4" NPT

2шт.

N8827

DRUM HUB

BULKHEAD ASSEMBLY - brake actuator, Includes: Ref. 17 - 24

1шт.

17

NSS

NOT SOLD SEPARAT

BULKHEAD - actuator

1шт.

18

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

bulkhead

1шт.

19

NSS

NOT SOLD SEPARAT

INSERT - bulkhead

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - push rod return

1шт.

21

NSS

NOT SOLD SEPARAT

ROD - adapter

1шт.

22

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

23

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

machine, flat head, slotted, 1/4" - 20 NC x 1/2"

1шт.

24

N7130

PLATE ASSY.

SPARE PART lower adapter

1шт.

25

N7187

DIAPHRAGM

actuator

1шт.

26

N7224

SUPPORT ASSY.

spring, used with aluminum end cap, Ref. 28, for service order N9906 power pack

1шт.

When servicing Refs. 26-28, must service all three at the same time with N9906 power pack kit on brake actuator assemblies idetified with Aeroquip No. KSD2430AC-00032.

1шт.

27

N7225

VALVE SPRING

main, used with aluminum end cap, Ref. 28, for service order N9906 power pack

1шт.

When servicing Refs. 26-28, must service all three at the same time with N9906 power pack kit on brake actuator assemblies idetified with Aeroquip No. KSD2430AC-00032.

1шт.

28

N7226

CAP

end, actuator, aluminum, for service order N9906 power pack

1шт.

When servicing Refs. 26-28, must service all three at the same time with N9906 power pack kit on brake actuator assemblies idetified with Aeroquip No. KSD2430AC-00032.

1шт.

N7185

CLAMP

ASSEMBLY - brake actuator, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

CLAMP - brake actuator

2шт.

30

114-213

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5

2шт.

31

25-176

NUT,3/8"-24, G5, Hvy

hex, heavy, 3/8" - 24 NF

2шт.

32

N9187

PLUG

SPARE PART rubber, end cap, not shown, used with aluminum end cap, Ref. 28, Aeroquip No. KSD2430AC-00032 brake actuator assembly only

1шт.

N9906

KIT

power pack, with steel end cap and spring retainer, Includes: Ref. 33 - 37

1шт.

33

NSS

NOT SOLD SEPARAT

CAP - end, actuator, steel

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - main

1шт.

35

NSS

NOT SOLD SEPARAT

SUPPORT - spring

1шт.

36

NSS

NOT SOLD SEPARAT

PLUG - end cap, not shown

1шт.

37

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

38

131-1113

JAM NUT,Jam, 5/8"-11

hex, jam, self-locking, 5/8" - 11 NC

2шт.

39

195-108

WASHER,5/8"

flat, , plated 5/8"

2шт.
