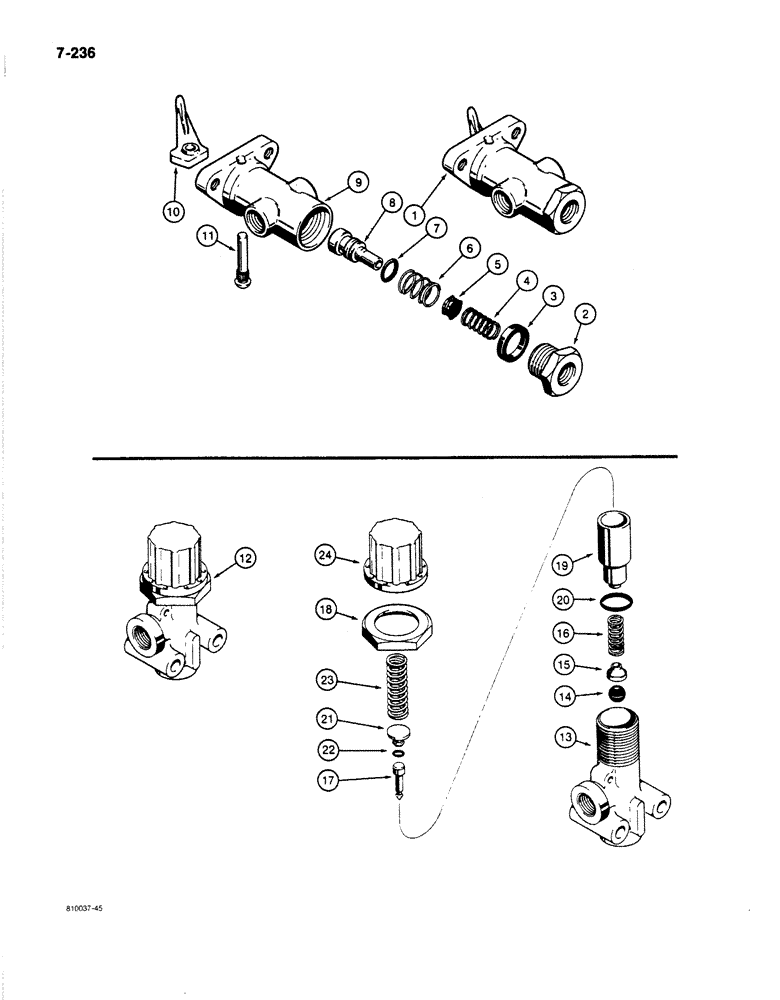

Запчасти Case 780C (7-236) - BRAKE SYSTEM (07) - BRAKES

1

L12630

LOCK VALVE

ASSEMBLY - control, clutch cutout, Includes: Ref. 2 - 11

1шт.

2

L31396

CYLINDER END CAP

SPARE PART control valve

1шт.

3

L31397

O-RING,0.549" ID x 0.103" Width

RING - seal, cap

1шт.

4

L31391

VALVE SPRING

return, plunger

1шт.

5

L32026

VALVE - flow control, clutch cutout

1шт.

6

L31395

VALVE SPRING

control

1шт.

7

L31390

O-RING,5/16" ID x 7/16" OD x 1/16"

plunger

1шт.

8

L31389

PLUNGER

SPARE PART control valve

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

10

L31392

LEVER

control valve

1шт.

11

L31393

RIVET

control valve

1шт.

12

L13530

VALVE

ASSEMBLY - pressure protection, Includes: Ref. 13 - 24

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

14

L31802

VALVE

inlet

1шт.

15

NSS

NOT SOLD SEPARAT

RETAINER - valve

1шт.

16

L31800

SPRING

inlet valve

1шт.

17

NSS

NOT SOLD SEPARAT

STEM - valve

1шт.

18

131-414

LOCK NUT,PAL, 7/8"-14

hex, special locking, 7/8" - 14 NF

1шт.

19

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

20

L31797

O-RING,1/2" ID x 11/16" OD x 3/32"

piston

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

22

L31798

O-RING,1/8" ID x 1/4" OD x 1/16"

seat

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - pressure regulating

1шт.

24

L33316

CAP

end, adjusting

1шт.
