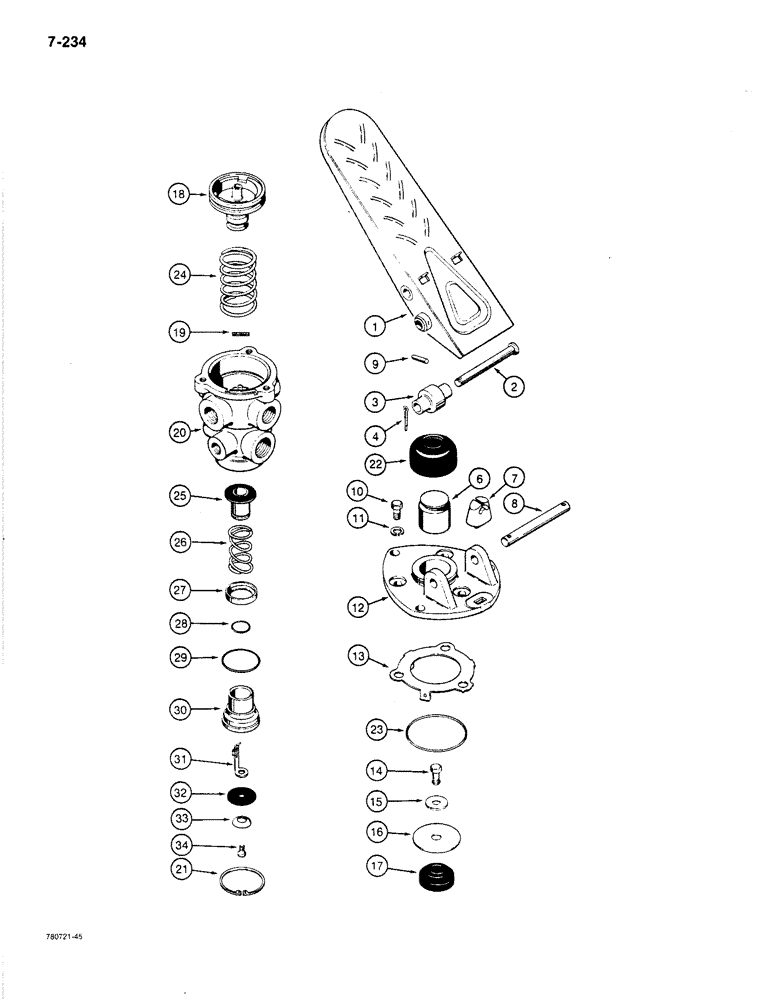

Запчасти Case 780C (7-234) - BRAKE SYSTEM, L73042 TREADLE AND BRAKE VALVE (07) - BRAKES

L73042

VALVE, BRAKE

TREADLE ASSEMBLY - RIGHT-HAND AND LEFT-HAND, Includes: Ref. 1 - 34

2шт.

D73634

TREAD

TREADLE ASSEMBLY - brake, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

TREADLE - brake valve

1шт.

2

L31367

PIN

roller, treadle valve

1шт.

3

L32676

ROLLER

treadle valve

1шт.

4

132-320

COTTER PIN,3/32" x 3/4"

1шт.

6

L32925

PLUNGER

treadle, brake

1шт.

7

L31362

BUTTON

stop, treadle

1шт.

8

L31465

PIN

pivot, treadle

1шт.

9

138-59

LOCK PIN,1/8" x 7/8", Slotted

Pivot pin

1шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

3шт.

12

L32924

PLATE ASSY.

BRACKET - mounting, brake treadle

1шт.

L15782

BRAKE VALVE

ASSEMBLY - brake, right-hand and left-hand, Includes: Ref. 13 - 34

1шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - brake valve

1шт.

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - brake valve, Includes: Ref. 14 - 18

1шт.

14

NSS

NOT SOLD SEPARAT

BOLT - hex, self-locking, special

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - compression, spring

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT - spring, piston

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - rubber, piston

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON - brake valve

1шт.

19

NSS

NOT SOLD SEPARAT

FILTER - vent

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

21

NLS

NO LONGER SERVICED

Ring, Snap, , brake valve 1.625", Int, #162

1шт.

L31806

KIT

repair, brake valve, Includes: Ref. 22 - 34

1шт.

22

L31364

BOOT

COVER - brake treadle plunger

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - return, piston

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - inlet and exhaust, Includes: Ref. 25 - 34

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - inlet and exhaust

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

27

NSS

NOT SOLD SEPARAT

RETAINER - valve

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING - exhaust check valve

1шт.

30

NSS

NOT SOLD SEPARAT

SEAT - check valve, exhaust

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING - preload, inlet valve

1шт.

32

NSS

NOT SOLD SEPARAT

DIAPHRAGM - valve

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - Belleville, diaphragm, valve

1шт.

34

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

machine, pan head slotted, No. 8-32 NC x 3/8"

1шт.
