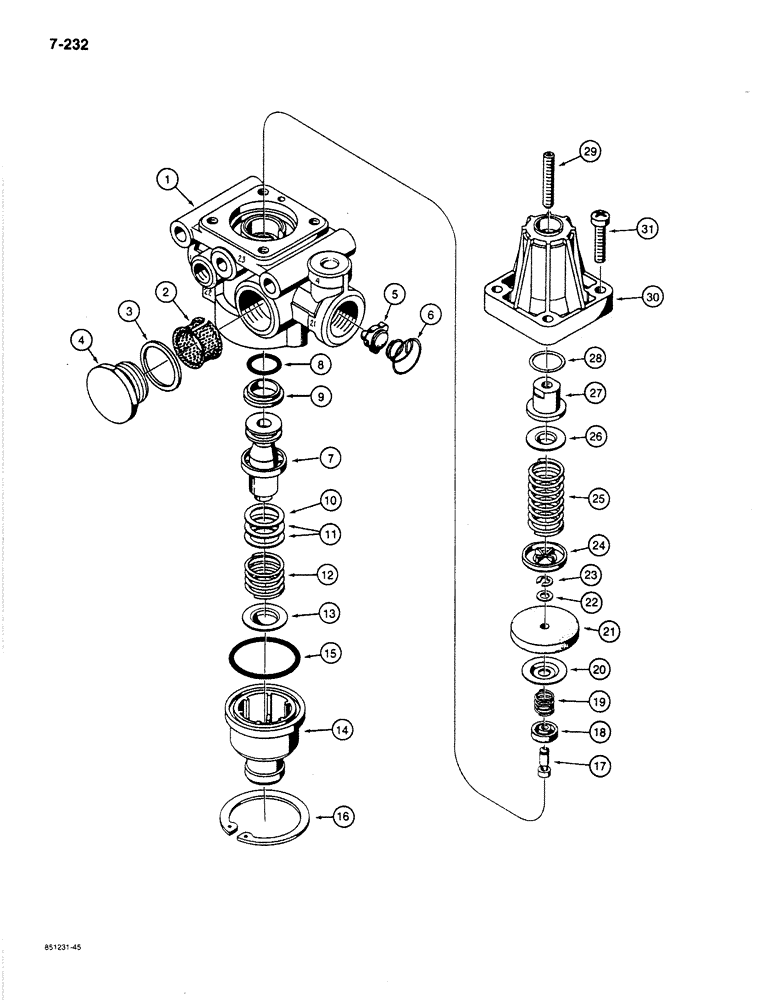

Запчасти Case 780C (7-232) - BRAKE SYSTEM, L112032 UNLOADING VALVE (07) - BRAKES

L112032

VALVE, BRAKE

ASSEMBLY - unloading, system, Includes: Ref. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - unloading valve

1шт.

2

NSS

NOT SOLD SEPARAT

FILTER - screen, valve

1шт.

Part of Repair Kit, P/N N13176.

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - washer, plug

1шт.

Part of Repair Kit, P/N N13176.

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - check, outlet port

1шт.

Part of Repair Kit, P/N N13176.

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - conical, outlet port

1шт.

Part of Repair Kit, P/N N13176.

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - unloading valve

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Repair Kit, P/N N13176.

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Repair Kit, P/N N13176.

1шт.

10

NSS

NOT SOLD SEPARAT

SHIM - 17 mm x 24 mm x 0.5 mm, original shim

1шт.

Part of Repair Kit, P/N N13176.

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM - 17 mm x 24 mm x 0.1 mm, service, use if required for opening pressure, see 780C Service Manual

2шт.

Part of Repair Kit, P/N N13176.

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

13

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - body

1шт.

Part of Repair Kit, P/N N13176.

1шт.

16

NSS

NOT SOLD SEPARAT

RING - snap, body retaining

1шт.

Part of Repair Kit, P/N N13176.

1шт.

N13177

PISTON ASSY.

valve, Includes: Ref. 17 - 23

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Repair Kit, P/N N13176.

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

20

NSS

NOT SOLD SEPARAT

SEAT - SPRING

1шт.

21

NSS

NOT SOLD SEPARAT

DIAPHRAGM - piston

1шт.

Part of Repair Kit, P/N N13176.

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - ring

1шт.

23

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of Repair Kit, P/N N13176.

1шт.

24

NSS

NOT SOLD SEPARAT

SEAT - spring, lower

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

26

NSS

NOT SOLD SEPARAT

SEAT - spring, upper

1шт.

27

NSS

NOT SOLD SEPARAT

CAP - adjusting screw

1шт.

Part of Repair Kit, P/N N13176.

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - cap

1шт.

Part of Repair Kit, P/N N13176.

1шт.

29

NSS

NOT SOLD SEPARAT

SCREW - adjusting, valve

1шт.

30

NSS

NOT SOLD SEPARAT

COVER - unloading valve, upper

1шт.

31

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

4шт.

Part of Repair Kit, P/N N13176.

1шт.

N13176

VALVE

KIT - repair, unloading valve, Includes: Ref. 2, 3, 5, 6, 8 - 11, 15, 16, 18, 21, 23, 27, 28, and 31

1шт.
