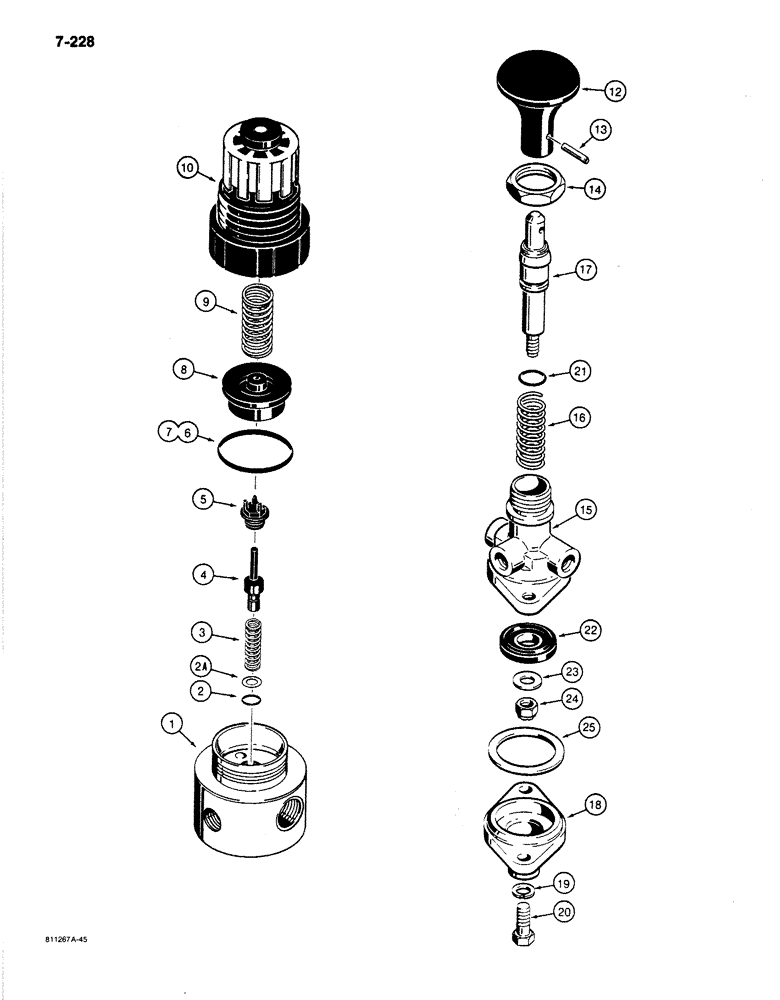

Запчасти Case 780C (7-228) - BRAKE SYSTEM (07) - BRAKES

L72409

LOCK VALVE

ASSEMBLY - pressure reducing, brakes, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

D76940

KIT

poppet repair, Includes: Ref. 2 - 6A

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - poppet

1шт.

2a

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - small

1шт.

4

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

5

NSS

NOT SOLD SEPARAT

GUIDE - poppet

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

6a

NSS

NOT SOLD SEPARAT

GROMMET - poppet, rubber, not shown

1шт.

D76941

PISTON

KIT - repair, Includes: Ref. 7 - 8

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

9

D76942

SPRING

large, piston return

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - valve

1шт.

L103834

VALVE

ASSEMBLY - parking brake, Includes: Ref. 12 - 26

1шт.

12

L33695

KNOB

parking brake

1шт.

13

138-2057

PIN,5/32" x 5/8", Coiled

1шт.

14

S94640

NUT

special

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

16

L33698

SPRING

valve

1шт.

17

N6814

PLUNGER

valve

1шт.

18

L33700

COVER

body

1шт.

19

192-109

LOCK WASHER,1/4"

light lock, 1/4"

2шт.

20

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

L33701

KIT

valve repair, Includes: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - plunger

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - inlet and exhaust

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

24

NSS

NOT SOLD SEPARAT

NUT - hex, lock, 1/4"

1шт.

25

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

26

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

square head, 1/8" NPT, body, not shown

1шт.
