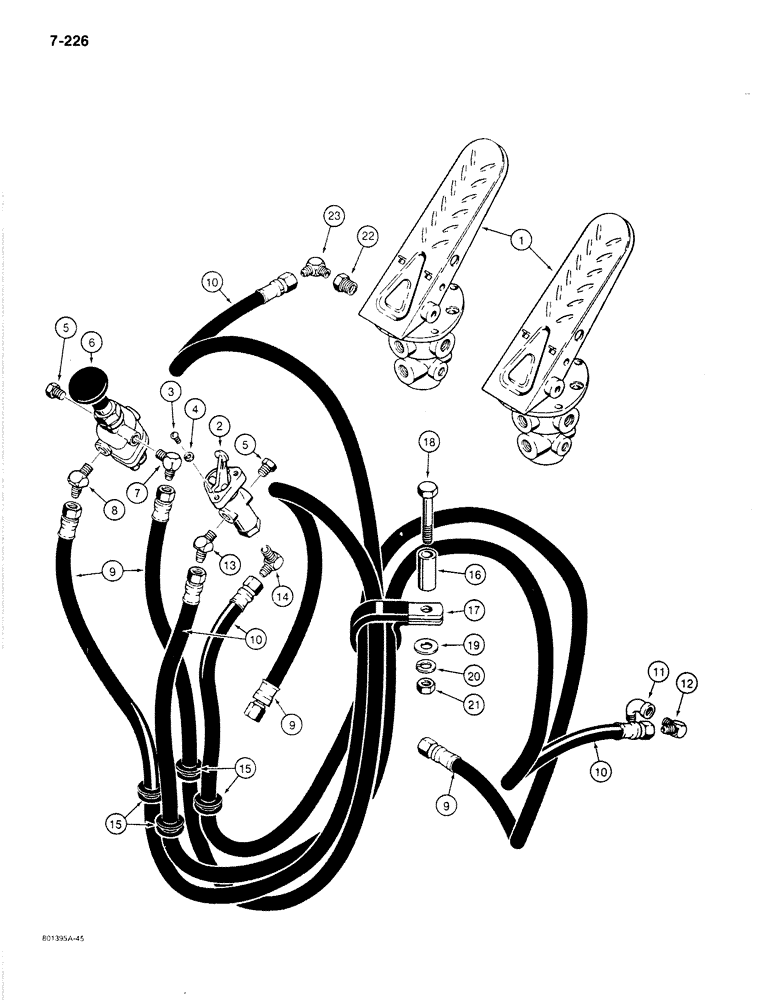

Запчасти Case 780C (7-226) - BRAKE SYSTEM, TREADLE TO CLUTCH CUTOUT AND PARKING BRAKE VALVE (07) - BRAKES

1

L73042

VALVE, BRAKE

TREADLE ASSEMBLY - parts list Figure 7-234

2шт.

2

L12630

LOCK VALVE

ASSEMBLY - clutch cutout, manual, parts list Figure 7-236

1шт.

3

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

Machine

2шт.

4

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

5

221-1849

PLUG

hex socket head, 1/8" NPT

2шт.

6

L103834

VALVE

ASSEMBLY - control, parking brake, parts list Figure 7-228

1шт.

7

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90 degree

1шт.

8

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

45 degree

1шт.

9

L103356

HOSE,6.35 mm ID x 1016.00, SAE J1402

Air System

2шт.

10

L103355

HOSE,0.25" ID x 50.00", SAE J1402C Type A

2шт.

11

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

street, 90 degree, 1/8" NPT

1шт.

12

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90 degree

1шт.

13

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

45 degree

1шт.

14

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90 degree

1шт.

15

L103297

GROMMET,5/8" ID x 7/8" Groove Dia, Str Cut

GROMMET - hose

4шт.

16

L10264

BUSHING

hose support

1шт.

17

S86530

CLAMP

hose

1шт.

18

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

19

95-6

WASHER,3/8"

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

22

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

REDUCER - 1/2" x 1/4" NPT

1шт.

23

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

90 degree

1шт.
