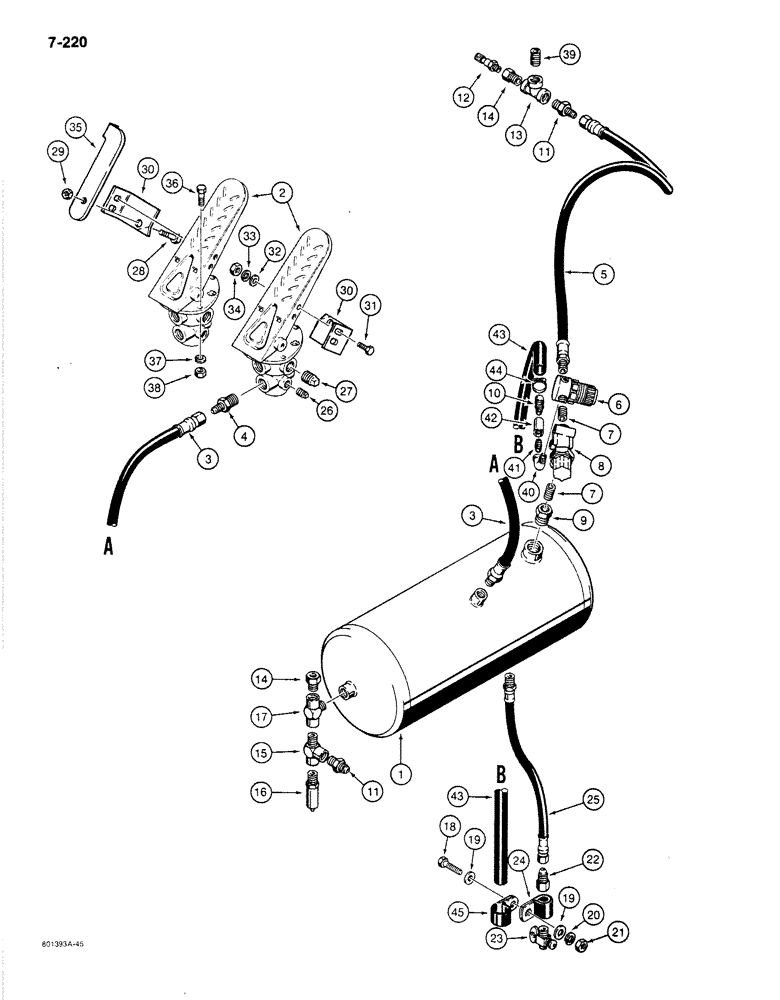

Запчасти Case 780C (7-220) - BRAKE SYSTEM, RESERVOIR TO PRESSURE VALVES AND TREADLES (07) - BRAKES

1

L57152

RESERVOIR ASSY.

TANK - air, for tank mounting see Figure 7-218

1шт.

2

L73042

VALVE, BRAKE

TREADLE ASSEMBLY - parts list Figure 7-234

2шт.

3

L103343

HOSE,9.52 mm ID x 330.20 mm

Treadle Valve to Air Reservoir

1шт.

4

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

straight

1шт.

5

L106579

HOSE

36" (924 mm) long, air supply

11шт.

6

L72409

LOCK VALVE

ASSEMBLY - pressure reduction, parts list Figure 7-228

1шт.

7

221-1131

PIPE,Nipple, 1/4" NPT x 1"

1/4" NPT x 1"

2шт.

8

L13530

VALVE

ASSEMBLY - pressure protection, parts list Figure 7-236

1шт.

9

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

REDUCER - 12/" x 1/4" NPT

1шт.

10

D38663

VENT

VALVE - relief, nydraulic reservoir

1шт.

11

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

straight, male, 1/4" x 1/4"

2шт.

12

L51311

LOCK VALVE

hydraulic reservoir

1шт.

13

221-422

TEE,Pipe, 1/4" NPT

1/4" NPT

1шт.

14

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

REDUCER - 1/4" x 1/8" NPT

2шт.

15

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

TEE - 1/4" NPT

1шт.

16

L48992

VALVE,1/4"

safety

1шт.

17

217-1141

TEE,1/4"-18 Female x 1/4"-18 Male Br

1/4" NPT

1шт.

18

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

19

95-6

WASHER,3/8"

2шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

22

218-1032

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, Fem Pipe

straight

1шт.

23

L112624

LOCK VALVE

drain

1шт.

24

NLS

NO LONGER SERVICED

CLAMP - hose

1шт.

25

L103354

HOSE,6.35 mm ID x 406.40 mm

Drain

1шт.

26

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

square head, 1/4" NPT

4шт.

27

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

square head, 1/2" NPT

4шт.

28

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

29

231-1445

NUT,5/16"-18, GB

1шт.

30

L71273

BRACKET

SPARE PART locking bar

2шт.

31

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

32

195-102

WASHER,1/4"

flat, plated

4шт.

33

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

34

129-724

NUT

weld, 1/4" - 20 NC

2шт.

35

L71180

BAR

locking

1шт.

36

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

6шт.

38

9635082

NUT,5/16" - 18, Gr 5

6шт.

39

221-1131

PIPE,Nipple, 1/4" NPT x 1"

1/4" NPT x 1"

1шт.

40

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

street, 90 degree, 1/8" NPT

1шт.

41

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

1/8" NPT x 3/4"

1шт.

42

221-326

COUPLING,Pipe, 1/8" NPT

1/8" NPT

1шт.

43

L53607

HOSE,127.00 mm ID x 762.00 mm, SAE 30R2 Type 3

30" (762 mm) long, drain

1шт.

44

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

hose

1шт.

45

R21385

CLAMP

support

1шт.
