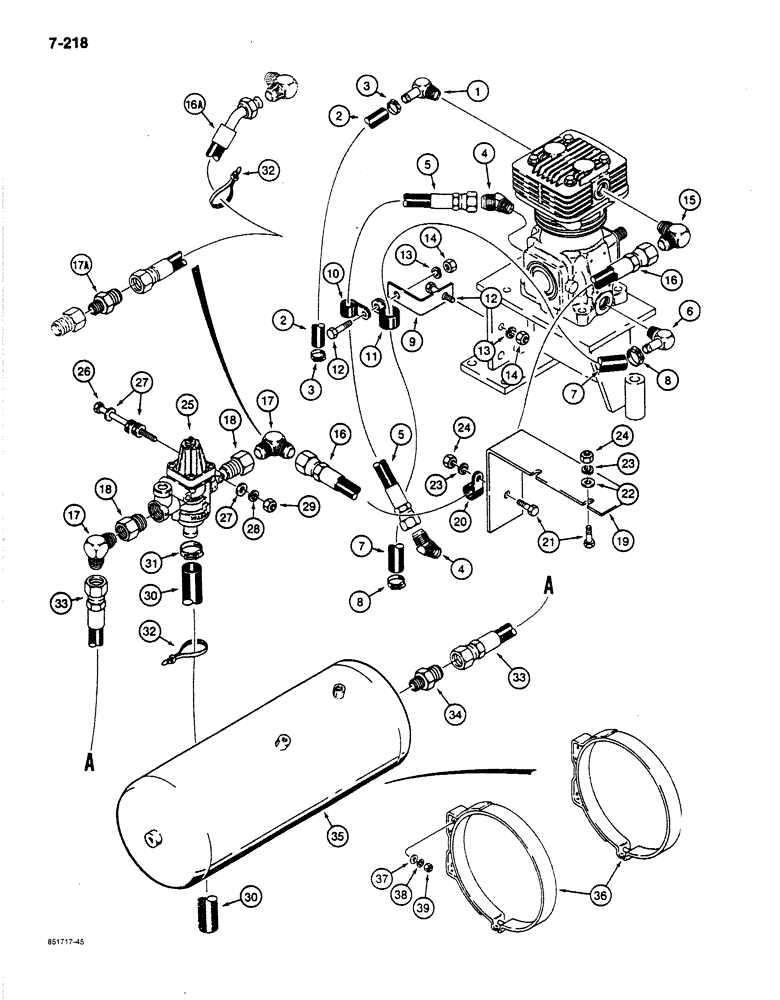

Запчасти Case 780C (7-218) - BRAKE SYSTEM, RESERVOIR AND UNLOADING VALVE LINES (07) - BRAKES

1

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

stem, 90 degree

1шт.

2

A19325

INTAKE AIR HOSE,19.00 mm ID x 559.00 mm, SAE 20R1

Air supply

1шт.

3

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

air supply hose

2шт.

4

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

45 degree

2шт.

5

L112113

HOSE,0.25" ID x 26.00", SAE 100R6

Air Compressor Oil Supply

1шт.

6

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

stem, 90 degree

1шт.

7

L100109

HOSE,12.7 mm ID x 914.40 mm, SAE 30R2 Type I

Oil Return, Attaches to Oil Filter Tube

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

oil return hose

2шт.

9

L112122

BRACKET

SPARE PART support, oil pressure and oil return hoses, mounts to air compressor mounting bracket

1шт.

10

49838

CLAMP

small, oil pressure hose

1шт.

11

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

large, oil return hose

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

15

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

90 degree

1шт.

16

L112103

HOSE ASSY.

39" (991 mm) long, air compressor to unloading valve, no longer available, for service order D135093 hose and 218-456 adapter, Refs. 16A and 17A

1шт.

16a

D135093

HOSE

34" (864 mm) long, air compressor to unloading valve, replaces L112103 hose and 218-493 elbow, Refs. 16 and 17, used on some models

1шт.

17

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

90 degree, used with L112103 hose, Ref. 16

1-2шт.

17a

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

straight, used with D135093 hose

1шт.

18

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

3/4" x 1/2" NPT

2шт.

19

L111567

BRACKET

compressor to valve hose, no longer used, not required for brake hose

1шт.

20

R21385

CLAMP

hose, if used

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used

3шт.

22

95-6

WASHER,3/8"

If used

2шт.

23

92-6

LOCK WASHER,3/8"

if used

3шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

If used

3шт.

25

L112032

VALVE, BRAKE

ASSEMBLY - unloading, parts list Figure 7-232

1шт.

26

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

2шт.

27

195-103

WASHER,5/16"

12шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

2шт.

30

D128387

HOSE ASSY.

3/4" (19 mm) ID x 36" (914 mm) long, drain

1шт.

31

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Drain hose

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

2шт.

33

D129184

HOSE

SPARE PART 31" (787 mm) long, unloading valve to air reservoir tank

1шт.

34

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

straight

1шт.

35

L57152

RESERVOIR ASSY.

TANK - air

1шт.

36

D133873

BRACKET

tank mounting, includes bolt and nut

2шт.

37

195-106

WASHER,1/2"

flat, 9/16", plated

4шт.

38

192-21

LOCK WASHER,3/8"

4шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.
