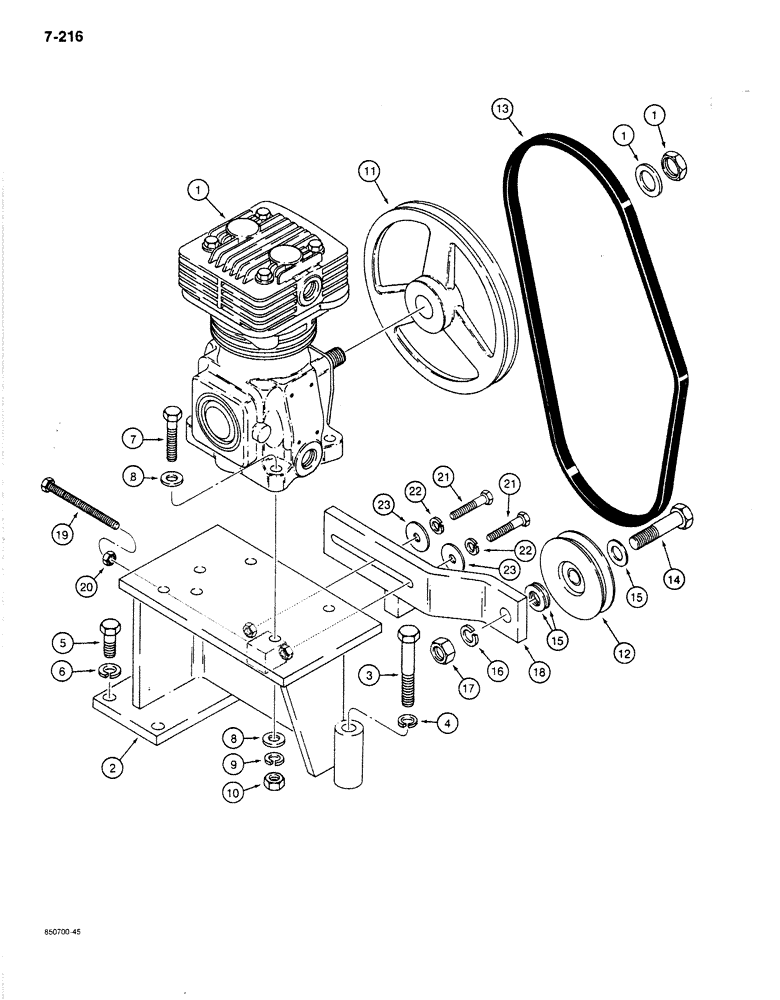

Запчасти Case 780C (7-216) - BRAKE SYSTEM, AIR COMPRESSOR MOUNTING (07) - BRAKES

1

L112031

COMPRESSOR

ASSEMBLY - air, brake, parts list Figure 7-230

1шт.

2

D129551

BRACKET

air compressor mounting

1шт.

3

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

1шт.

4

892-1112

LOCK WASHER,M12

1шт.

5

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

6

892-1110

LOCK WASHER,M10

3шт.

7

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

4шт.

11

L111646

PULLEY

air compressor

1шт.

12

L112544

PULLEY

idler

1шт.

13

D129916

BELT,12.70 mm W x 1124.00 mm L

Brake, Air Compressor

1шт.

14

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

15

195-2201

WASHER,0.69" ID x 1.12" OD x 0.07" Thk

flat, 5/8", special, plated, used as a spacer

1шт.

16

192-25

LOCK WASHER,5/8"

1шт.

17

230-41110

LOCK NUT,5/8"-11, GA

1шт.

18

D129034

STRAP

SPARE PART slide, idler pulley

1шт.

19

113-2287

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5, Full Thd

1шт.

20

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

21

114-204

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat, plated, hardened

2шт.
