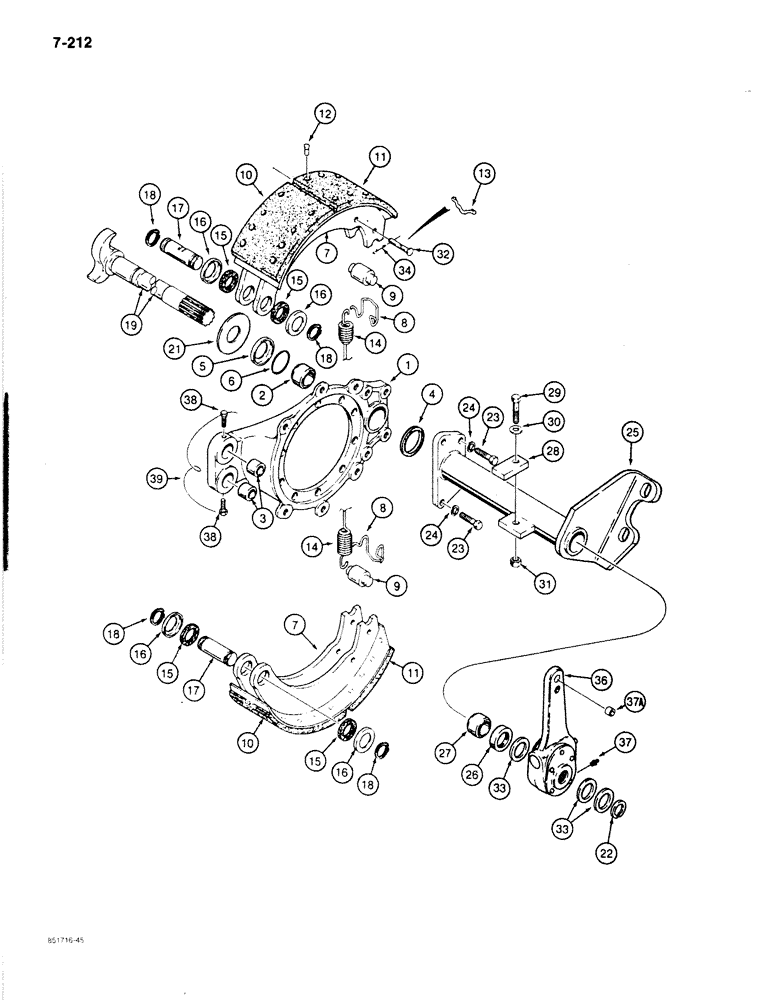

Запчасти Case 780C (7-212) - L60800 REAR AXLE, REAR BRAKES AND ADJUSTERS (07) - BRAKES

L60800

CENTER AXLE

ASSEMBLY - complete, rear, Rockwell No. PRS-265-P102, -P014, or -P105, parts list Figures 6-202 - 7-212, Includes: Ref. 1 - 27

1шт.

D87282

BRACKET

ASSEMBLY - brake mounting, Includes: Ref. 1 - 6

2шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - brake

1шт.

2

L35560

BUSHING

cam

1шт.

3

D77629

BUSHING

brake pin

2шт.

4

N6395

OIL RESERVOIR

GASKET - bracket assembly

1шт.

5

D77627

RETAINER

O-ring

1шт.

6

D77626

O-RING

shaft seal

1шт.

D86576

SHOE (ASSY)

brake, Includes: Ref. 7 - 13

4шт.

7

NSS

NOT SOLD SEPARAT

SHOE - brake

1шт.

8

L35589

RETAINER

roller

1шт.

9

L35590

ROLLER

shoe

1шт.

10

NSS

NOT SOLD SEPARAT

LINING - shoe, anchor end

1шт.

Part of Brake Lining Kit, P/N D66415.

1шт.

11

NSS

NOT SOLD SEPARAT

LINING - shoe, cam end

1шт.

Part of Brake Lining Kit, P/N D66415.

1шт.

12

NSS

NOT SOLD SEPARAT

RIVET - brake lining

16шт.

Part of Brake Lining Kit, P/N D66415.

1шт.

13

L35588

AXLE PIN

anchor, alternate to Ref. 32, if used

1шт.

14

D87283

SPRING

return, brake shoe

2шт.

15

L35566

FELT

anchor pin

8шт.

16

L35567

CAP

RETAINER - felt

8шт.

17

D77625

AXLE PIN

anchor, brake shoe

4шт.

18

F62020

SNAP RING,#125, Ext

anchor pin #125, Ext

8шт.

19

N7092

SHAFT

cam, left-hand brake adjustment

1шт.

20

N7093

SHAFT

SPARE PART cam, right-hand brake adjustment, not shown

1шт.

21

L35706

WASHER

flat, cam head

2шт.

22

R13338

SNAP RING,#150, Ext

cam groove, .050" thick, if used #150, Ext

2шт.

22

T37909

SNAP RING,#150, Ext

Ring, Snap, , cam groove, .109" thick, if used #150, Ext

2шт.

23

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

24

92-8

LOCK WASHER,1/2"

8шт.

N7090

BRACKET

SPARE PART ASSEMBLY - mounting, left-hand brake chamber, not shown, Includes: Ref. 25 - 27

1шт.

N7091

BRACKET

ASSEMBLY - mounting, right-hand brake chamber, not shown, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

BRACKET - mounting, brake chamber, right-hand or left-hand

1шт.

26

N6395

OIL RESERVOIR

SEAL - bracket

1шт.

27

L35560

BUSHING

cam and shaft

1шт.

D66415

BRAKE LINE

KIT - rivets, for two wheels, Includes: Ref. 10 - 12

1шт.

L60800

CENTER AXLE

ASSEMBLY - complete, rear, Rockwell No. PRS-265-P102, -P104, or -P105, parts list Figures 6-203 - 7-215, Includes: Ref. 28 - 39

1шт.

28

L35577

PLATE ASSY.

LUG - mounting, chamber bracket, welded to axle housing

2шт.

29

26-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 8

hex head, 9-16" - 12 NC x 1-3/4", grade 8

2шт.

30

N6183

WASHER

special

2шт.

31

25-109

NUT,9/16"-12, G5

hex, 9/16" - 12 NC

2шт.

32

L35705

AXLE PIN

anchor, alternate to Ref. 13, if used

4шт.

33

L35573

WASHER

flat, special

1шт.

34

132-28

COTTER PIN,3/32" x 1"

If used

4шт.

35

S89827

GASKET

bracket, not shown

2шт.

N7094

ADJUSTER

ASSEMBLY - slack, brake shoe, Includes: Ref. 36 - 37A

2шт.

36

NSS

NOT SOLD SEPARAT

ADJUSTER - slack, brake shoe

1шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

37a

L35602

BUSHING

adjuster body

1шт.

38

A15983

BOLT,M10 x 1.25 x 40mm, Cl 10.9

lock, anchor pin

4шт.

39

391-751

ELECTRICAL WIRE

WIRE lock, anchor pin lock screw

2шт.
