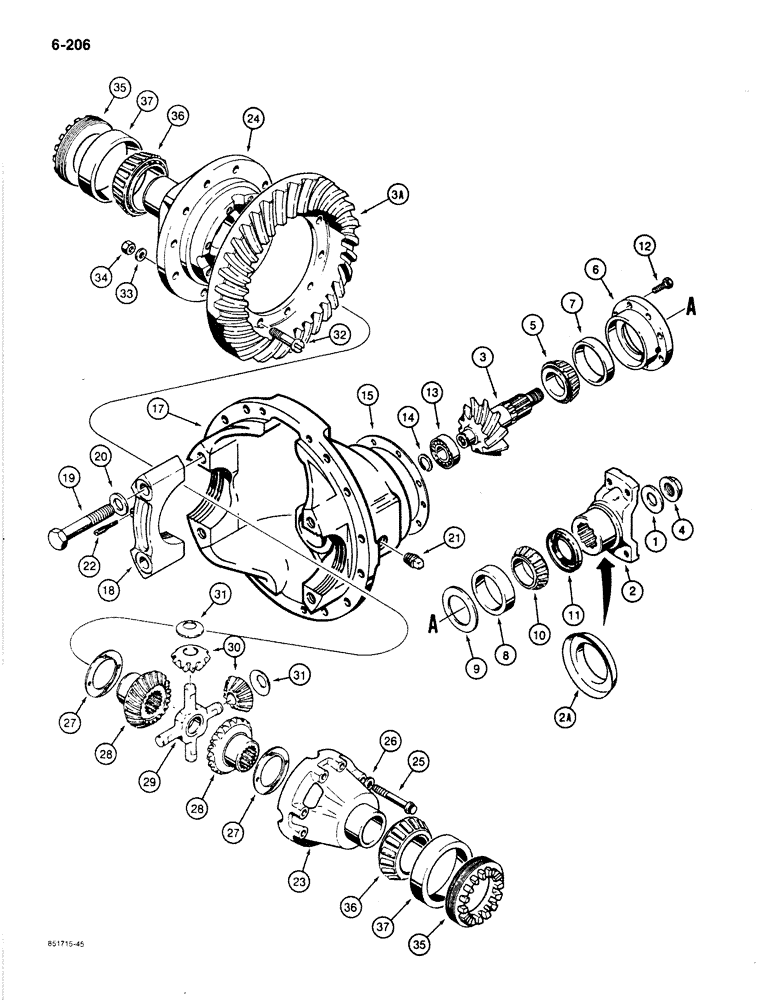

Запчасти Case 780C (6-206) - L60800 REAR AXLE, DIFFERENTIAL (06) - POWER TRAIN

L60800

CENTER AXLE

ASSEMBLY - complete, rear, Rockwell No. PRS-265-P102, -P104, or -P105, parts list Figures 6-202 - 7-212, Includes: Ref. 1 - 22

1шт.

N7085

CARRIER

SPARE PART DIFFERENTIAL ASSEMBLY - axle, Includes: Ref. 1 - 22

1шт.

1

A13124

WASHER

yoke retaining

1шт.

N7088

YOKE

UNIVERSAL JOINT YOKE ASSEMBLY - drive shaft, Includes: Ref. 2 - 2A

1шт.

2

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

2a

D71243

CARRIER

SLINGER - oil, yoke

1шт.

N7086

GEAR-SET

ring gear and pinion gear, Includes: Ref. 3 - 4

1шт.

3

NSS

NOT SOLD SEPARAT

GEAR - pinion, axle

1шт.

3a

NSS

NOT SOLD SEPARAT

GEAR - ring, axle

1шт.

4

L35091

NUT

hex, slotted, yoke to pinion shaft

1шт.

5

D71240

ROLLER BEARING,1.75" ID x 3.5" OD x 1.1875"

tapered roller, inner

1шт.

N6339

CAGE

ASSEMBLY - pinion shaft bearing, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing

1шт.

7

R10277

BEARING CUP,3.5" OD x 0.9063"

tapered roller bearing, inner

1шт.

8

R10277

BEARING CUP,3.5" OD x 0.9063"

tapered roller bearing, outer

1шт.

9

D71290

SPACER

bearing, .125" (3.175 mm) thick

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D71291

SPACER

bearing, .126" (3.200 mm) thick

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D71292

SPACER

bearing, .127" (3.226 mm) thick

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D71293

SPACER

bearing, .128" (3.251 mm) thick

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D71294

SPACER

bearing, .129" (3.277 mm) thick

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D71295

SPACER

bearing, .130" (3.302 mm) thick

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D71296

SPACER

bearing, .136" (3.454 mm) thick

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D71297

SPACER

bearing, .142" (3.607 mm) thick

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D71298

SPACER

bearing, .148" (3.759 mm) thick

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D71299

SPACER

bearing, .154" (3.912 mm) thick

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

9

D71300

SPACER

bearing, .158" (4.013 mm) thick

1шт.

Use two spacers, Ref. 9, together to replace the single original equipment spacer.

1шт.

10

D71240

ROLLER BEARING,1.75" ID x 3.5" OD x 1.1875"

tapered roller, outer

1шт.

11

N9736

OIL SEAL

1шт.

12

26-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

hex head, 7/16" - 14 NC x 1-1/4", grade 8

8шт.

13

D82783

ROLLER BEARING

roller, inner, drive pinion

1шт.

14

A18199

SNAP RING,#106, Ext

Ring, Snap, , roller bearing #106, Ext

1шт.

15

L33676

DISC

SHIM - bearing cage, .003" (0.76 mm) thick

1шт.

15

L33677

DISC

SHIM - bearing cage, .005" (.127 mm) thick

1шт.

15

L33678

DISC

SHIM - bearing cage, .010" (.254 mm) thick

1шт.

16

L33675

SPACER

pinion, not shown

1шт.

D73630

SUPPORT

CARRIER ASSEMBLY - differential, Includes: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

18

NSS

NOT SOLD SEPARAT

RETAINER - differential bearing

2шт.

19

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

hex head, 5/8" - 11 NC x 3-1/2", grade 8

4шт.

20

L30737

WASHER

special

4шт.

21

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

square socket head, 3/4" NPT, fill

1шт.

22

A18196

HARDWARE

PIN - cotter, special, locking

2шт.

L60800

CENTER AXLE

ASSEMBLY - complete, rear, Rockwell No. PRS-265-P102, -P104, or -P105, parts list Figures 6-203 - 7-215, Includes: Ref. 23 - 37

1шт.

N7085

CARRIER

SPARE PART DIFFERENTIAL ASSEMBLY - axle, Includes: Ref. 23 - 37

1шт.

N7087

CASE

SPARE PART ASSEMBLY - differential, Includes: Ref. 23 - 31

1шт.

23

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

24

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

25

S114341

BOLT (SPREADER)

SPARE PART special

8шт.

26

D47366

WASHER

special

8шт.

27

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

thrust, side gear

2шт.

28

D66304

GEAR

bevel, differential side

2шт.

29

A18181

U-JOINT SPIDER

differential

1шт.

30

A18175

PINION

GEAR - differential

4шт.

31

A18176

DISC

SPRING - Belleville, pinion gear

4шт.

32

A47251

DRIVE SCREW

special, ring gear to differential case

12шт.

33

D47366

WASHER

special

12шт.

34

232-4618

LOCK NUT,1/2"-20, GC

hex, self-locking, 1/2" - 20 NF

12шт.

35

A18194

RING

bearing adjusting

2шт.

36

A18173

ROLLER BEARING

tapered roller, differential

2шт.

37

L35931

BEARING CUP

tapered roller bearing

2шт.
