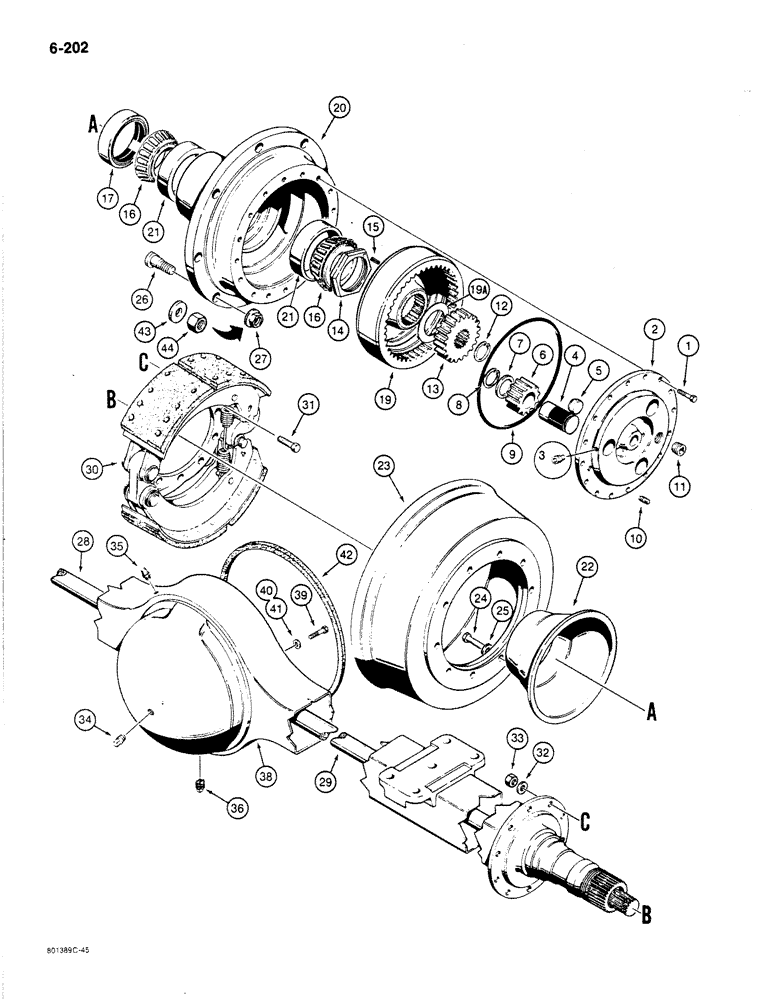

Запчасти Case 780C (6-202) - AXLE HOUSING AND PLANETARY (06) - POWER TRAIN

L60800

CENTER AXLE

ASSEMBLY - complete, rear, Rockwell No. PRS-265-P102, -P104, or -P105, parts list Figures 6-202 - 7-212, Includes: Ref. 1 - 31

1шт.

1

A18221

BOLT,M10 x 1.25 x 50mm, Cl 8.8

hex head, special

32шт.

N8234

GEAR

COVER ASSEMBLY - planetary, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

COVER - planetary

1шт.

3

N7103

STUD

SCREW - set, planetary, cover

3шт.

4

N7102

PINION

SHAFT - rear axle

3шт.

5

A18247

PIN

PLUG - thrust

1шт.

6

D88721

GEAR WHEEL

pinion, rear axle

6шт.

7

A47986

WASHER

thrust, pinion gear

6шт.

8

A18242

RING

snap, pinion gear

6шт.

9

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

planetary cover, if used

2шт.

345-84

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, if used, not shown

2шт.

10

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

square head, 3/8" NPT, drain, if used

2шт.

11

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

square socket head, 3/4" NPT, magnetic, fill

2шт.

12

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

RING - snap, sun gear retaining

2шт.

13

D88719

GEAR WHEEL

sun, planetary

2шт.

N7105

LOCK NUT

ASSEMBLY - bearing, Includes: Ref. 14 - 15

2шт.

14

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

15

138-2018

PIN,1/4" x 7/8", Coiled

Nut assembly

1шт.

16

L35221

ROLLER BEARING,85mm ID x 30mm W

BEARING - tapered roller, cup

4шт.

17

N7841

SEAL

tapered roller bearing, Includes: Ref. 19

2шт.

19

D88718

RING

GEAR - planetary

2шт.

19a

D88720

WASHER,68.33mm ID x 101.6mm OD x 1.52mm Thk

thrust, ring gear

2шт.

D88717

HUB CAP

ASSEMBLY - axle, Includes: Ref. 20 - 21

2шт.

20

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

21

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

tapered roller bearing

2шт.

22

L35224

SLINGER

oil

2шт.

23

D88722

DRUM HUB

brake

2шт.

24

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

hex head, 3/4" - 10 NC x 1-3/4", grade 8

20шт.

25

L36067

WASHER

flat, special

20шт.

26

N14152

BOLT

STUD - wheel

16шт.

27

NSS

NOT SOLD SEPARAT

NUT - wheel, not shipped with axle, order Refs. 43 and 44

16шт.

28

N9742

SHAFT

axle, left-hand, short

1шт.

29

N9743

AXLE SHAFT

right-hand, long

1шт.

30

REF

INSTRUCTION

BRAKE ASSEMBLY - axle, see Figure 7-212

2шт.

31

28-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 8

hex head, 5/8" - 18 NF x 2", grade 8

30шт.

L60800

CENTER AXLE

ASSEMBLY - complete, rear, Rockwell, No. PRS-265-P102, -P104, or -P105, parts list Figures 6-203 - 7-215, Includes: Ref. 32 - 42

1шт.

32

L30737

WASHER

special

30шт.

33

131-1236

LOCK NUT,5/8"-18, GC

30шт.

34

221-845

PLUG,Hex Soc, 3/4"-14

sqaure socket head, 3/4" NPT, fill

1шт.

35

A12928

BREATHER

axle housing

1шт.

36

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

square socket head, 3/4" NPT, magnetic, drain

1шт.

38

N7089

HOUSING ASSY.

SPARE PART axle

1шт.

39

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

39

26-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

hex head, 7/16" - 14 NC x 1-3/4", grade 8

2шт.

39

26-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 8

hex head, 7/16" - 14 NC x 2-1/2", grade 8

2шт.

40

D47366

WASHER

special, 1/2"

12шт.

41

D47367

WASHER

special, 7/16"

4шт.

42

M20704

ADHESIVE

, Serial Range: differential-housing

1шт.

43

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

special

16шт.

44

129-140

NUT,3/4"-16, G8

16шт.
