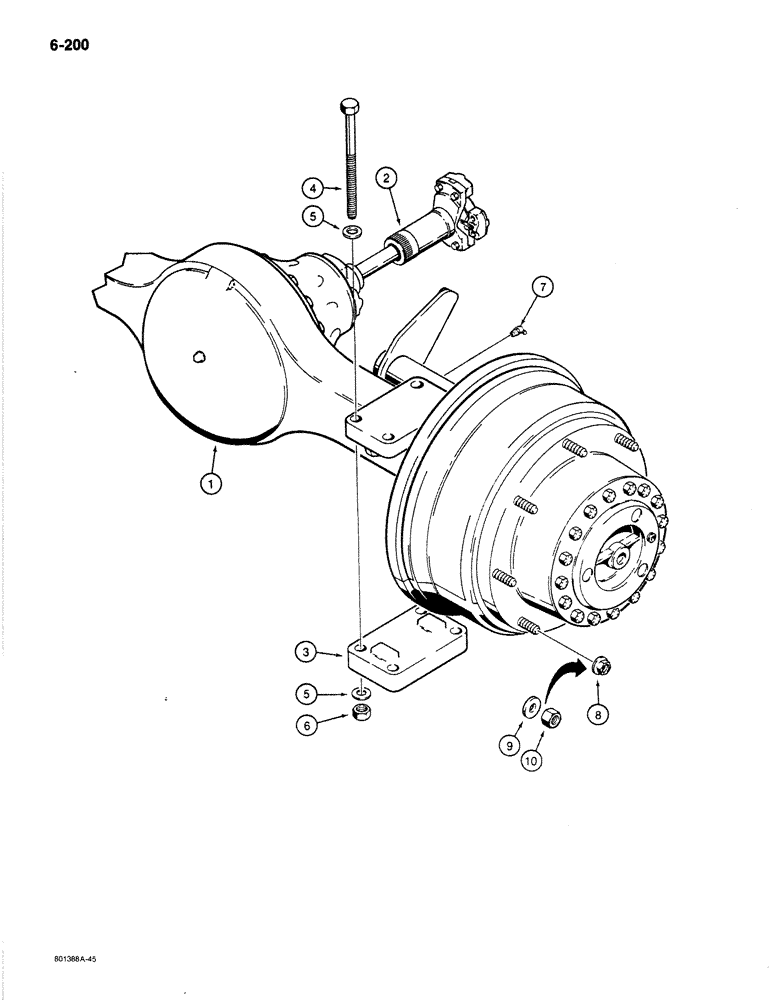

Запчасти Case 780C (6-200) - REAR DRIVE AXLE MOUNTING PARTS (06) - POWER TRAIN

1

L60800

CENTER AXLE

ASSEMBLY - rear, parts list Figures 6-202 - 7-212

1шт.

2

L101466

SHAFT

ASSEMBLY - drive, parts list Figure 6-198

1шт.

3

L107782

PAD

axle mounting, not shipped with axle, order separately

2шт.

4

28-14160

BOLT,Hex, 7/8" - 14 x 10", Gr 8

hex head, 7/8" - 14 NF x 10", grade 8

8шт.

5

196-33

WASHER,29/32" x 1 1/2" x .134", HDN

7/8" ID x 1-1/2" OD, hardened

16шт.

6

131-1252

LOCK NUT,7/8"-14, GC

8шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

Special short

2шт.

8

NSS

NOT SOLD SEPARAT

NUT - wheel, not shipped with axle order, Refs. 9 and 10

16шт.

9

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

special

16шт.

10

129-140

NUT,3/4"-16, G8

16шт.
