Запчасти Case 780B (184) - BRAKE SYSTEM, AIR COMPRESSOR MOUNTING (07) - BRAKES

1

REF

INSTRUCTION

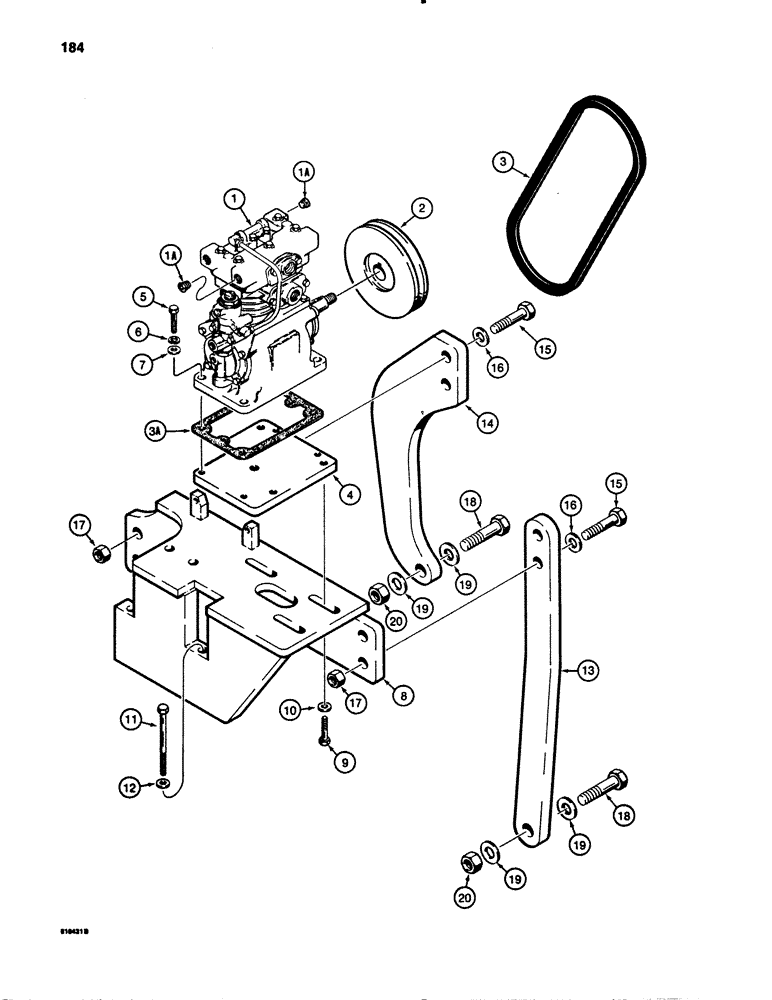

AIR COMPRESSOR - parts list Figure 196

1шт.

1a

221-1843

PLUG

- hex socket head, 3/8" NPT

2шт.

2

L73154

PULLEY

- air compressor

1шт.

3

L108218

BELT,0.50" W x 46.40" L

Drive, Air compressor 0.50" W x 46.40" L

1шт.

3a

D80610

GASKET

- compressor to mounting plate

1шт.

4

L107248

PLATE - air compressor mounting

1шт.

5

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

4шт.

6

92-7

LOCK WASHER,7/16"

4шт.

7

195-2043

WASHER,1/2" x 1 1/16" x .134"

- flat, 7/16"

4шт.

8

L107510

BRACKET

- air compressor mounting

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Bracket to plate Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

10

R24718

WASHER

- flat, 1/2", special

1шт.

11

L109099

BOLT - hex head, 1/2" - 13 NC x 5", grade 8, bracket to engine block

2шт.

12

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", special

2шт.

13

L107511

SUPPORT - right-hand

1шт.

14

L107515

SUPPORT - left-hand

1шт.

15

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

16

NLS

NO LONGER SERVICED

- flat, 5/8", special

4шт.

17

25-1010

NUT,5/8"-11, G5

4шт.

18

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

19

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4", special

4шт.

20

25-1012

NUT,3/4"-10, G5

2шт.
