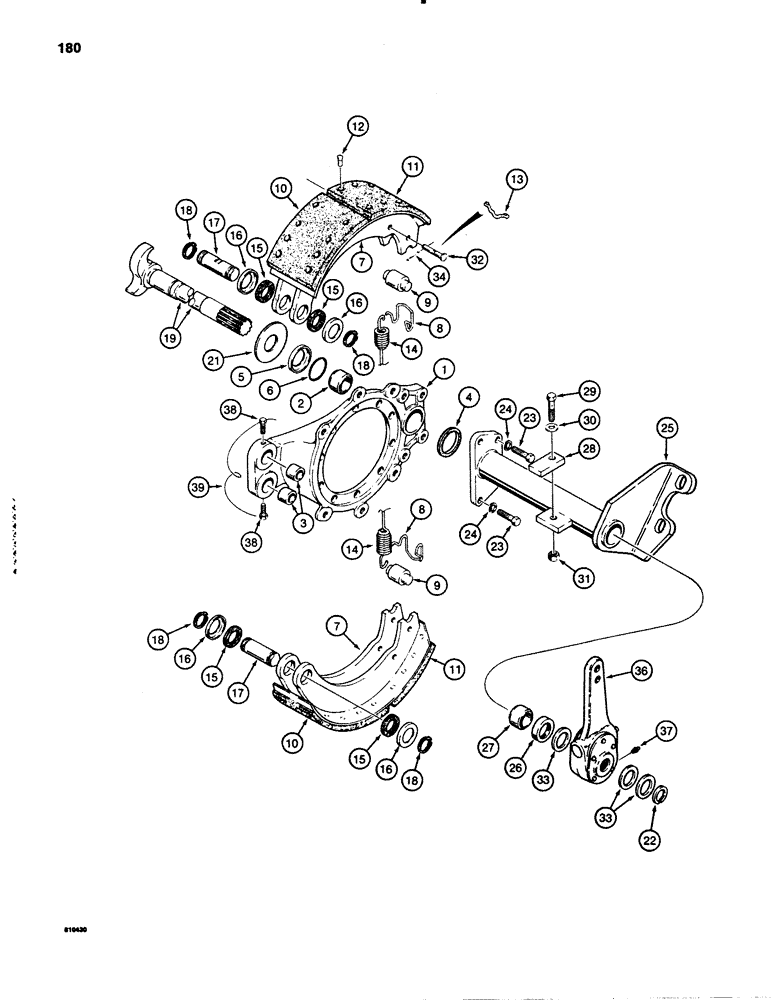

Запчасти Case 780B (180) - L60800 REAR AXLE, REAR BRAKES AND ADJUSTERS (06) - POWER TRAIN

L60800

CENTER AXLE

ASSEMBLY - complete, rear, Rockwell No. PRS-265-P102/16.65, Includes: Ref. 1 - 27

1шт.

D87282

BRACKET

ASSEMBLY - brake mounting, Includes: Ref. 1 - 6

2шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - brake

1шт.

2

L35560

BUSHING

Cam

1шт.

3

D77629

BUSHING

Brake pin

2шт.

4

S89827

GASKET

Bracket assembly

1шт.

5

D77627

RETAINER

O-ring

1шт.

6

D77626

O-RING

Shaft seal

1шт.

D86576

SHOE (ASSY)

AND LINING - brake, Includes: Ref. 7 - 13

4шт.

7

NSS

NOT SOLD SEPARAT

SHOE - brake

1шт.

8

L35589

RETAINER

Roller

1шт.

9

L35590

ROLLER

Shoe

1шт.

10

NSS

NOT SOLD SEPARAT

LINING - shoe, anchor end

1шт.

11

NSS

NOT SOLD SEPARAT

LINING - shoe, cam end

1шт.

12

NSS

NOT SOLD SEPARAT

RIVET - brake lining

16шт.

13

L35588

AXLE PIN

Anchor, alternate to Ref. 32, if used

1шт.

14

D87283

SPRING

Return, brake shoe

2шт.

15

L35566

FELT

Anchor pin

8шт.

16

L35567

CAP

RETAINER - felt

8шт.

17

D77625

AXLE PIN

Anchor, brake shoe

4шт.

18

F62020

SNAP RING,#125, Ext

Anchor pin

8шт.

19

N7092

SHAFT

& CAM - LH brake adjustment

1шт.

20

N7093

SHAFT

SPARE PART & CAM - RH brake adjustment, not shown

1шт.

21

L35706

WASHER

Flat, cam head

2шт.

22

R13338

SNAP RING,#150, Ext

Cam groove

2шт.

23

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

24

92-8

LOCK WASHER,1/2"

8шт.

N7090

BRACKET

SPARE PART ASSEMBLY - mounting, RH brake chamber, not shown, Includes: Ref. 25 - 27

1шт.

N7091

BRACKET

ASSEMBLY - mounting, LH brake chamber, not shown, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

BRACKET - mounting, brake chamber, RH or LH

1шт.

26

N6395

OIL RESERVOIR

SEAL - bracket

1шт.

27

L35560

BUSHING

Cam and shaft

1шт.

D66415

BRAKE LINE

KIT - brake lining and rivets, for two wheels

1шт.

L60800

CENTER AXLE

ASSEMBLY - complete, rear, Rockwell No. PRS-265-P102/16.65, Includes: Ref. 28 - 39

1шт.

28

L35577

PLATE ASSY.

LUG - mounting, chamber bracket, welded to axle housing

2шт.

29

26-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 8

2шт.

30

N6183

WASHER

Special

2шт.

31

25-109

NUT,9/16"-12, G5

2шт.

32

L35705

AXLE PIN

Anchor, alternate to Ref. 13, if used

4шт.

33

L35573

WASHER

Flat, special

6шт.

34

132-28

COTTER PIN,3/32" x 1"

If used

4шт.

35

S89827

GASKET

Bracket, not shown

2шт.

N7094

ADJUSTER

ASSEMBLY - slack, brake shoe, Includes: Ref. 36 and 37

2шт.

36

NSS

NOT SOLD SEPARAT

ADJUSTER - slack, brake shoe

1шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

NPT

4шт.

38

A15983

BOLT,M10 x 1.25 x 40mm, Cl 10.9

SCREW - lock, anchor pin

4шт.

39

391-751

ELECTRICAL WIRE

WIRE Lock, anchor pin lock screw

2шт.
