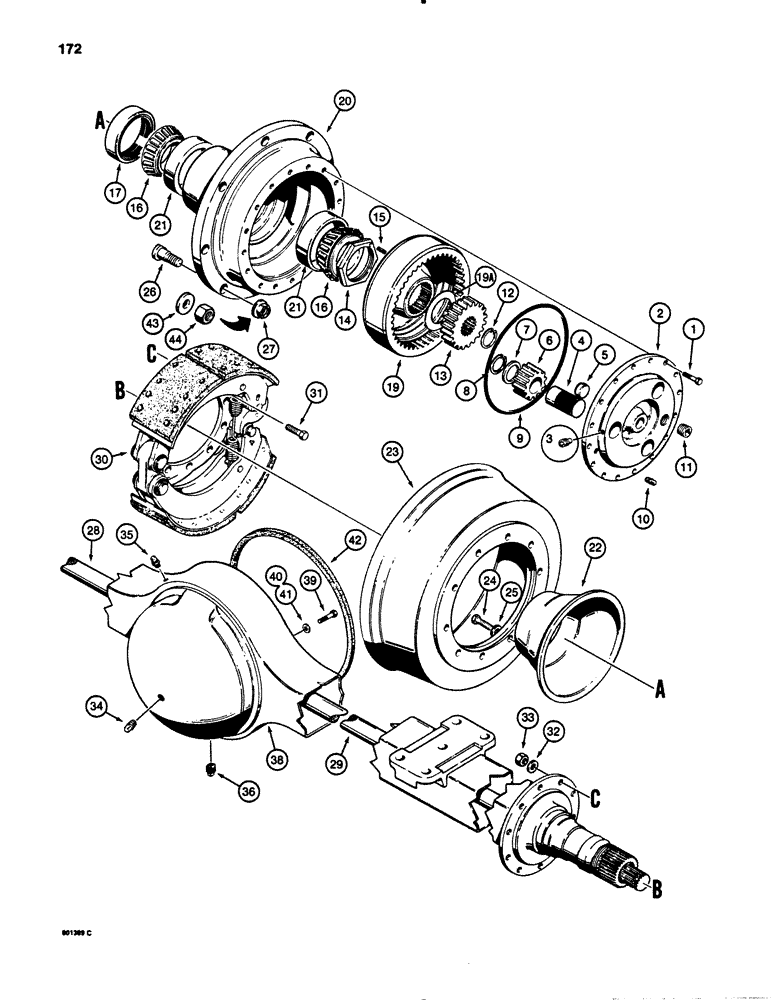

Запчасти Case 780B (172) - L60800 REAR AXLE, AXLE HOUSING AND PLANETARY (06) - POWER TRAIN

L60800

CENTER AXLE

AXLE ASSEMBLY - complete, rear, Rockwell No. PRS-265-P102/16.65, Includes: Ref. 1 - 42

1шт.

1

A18221

BOLT,M10 x 1.25 x 50mm, Cl 8.8

- hex head, special

32шт.

N8234

GEAR

COVER ASSEMBLY - planetary, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

COVER - planetary

1шт.

3

N7103

STUD

SET SCREW - planetary cover

3шт.

4

N7102

PINION

SHAFT - rear axle

3шт.

5

A18247

PIN

PLUG - thrust

1шт.

6

D88721

GEAR WHEEL

PINION GEAR - rear axle

6шт.

7

N7104

WASHER, THRUST

THRUST WASHER - pinion gear

6шт.

8

A18242

RING

SNAP RING - pinion gear

6шт.

9

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

- planetary cover, if used

2шт.

9

345-84

ADHESIVE

GASKET - form-in-place, if used, not shown

2шт.

10

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - drain, square head, 3/8" NPT, if used

2шт.

11

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - fill, square socket, 3/4" NPT

2шт.

12

A18241

RING

SNAP RING - sun gear retaining

2шт.

13

D88719

GEAR WHEEL

SUN GEAR - planetary

2шт.

N7105

LOCK NUT

NUT ASSEMBLY - lock, bearing, Includes: Ref. 14 and 15

2шт.

14

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

15

138-2018

PIN,1/4" x 7/8", Coiled

Nut assembly 1/4" x 7/8", Coiled

1шт.

16

L35221

ROLLER BEARING,85mm ID x 30mm W

TAPERED ROLLER BEARING

4шт.

17

N7841

SEAL

- tapered roller bearing

2шт.

18

RESERVED

1шт.

19

D88718

RING

GEAR - planetary

2шт.

19a

D88720

WASHER,68.33mm ID x 101.6mm OD x 1.52mm Thk

- thrust

2шт.

D88717

HUB CAP

HUB AND CAP ASSEMBLY - axle, Includes: Ref. 20 and 21

2шт.

20

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

21

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - tapered roller bearing

2шт.

22

L35224

SLINGER

- oil

2шт.

23

D88722

DRUM HUB

DRUM - brake

2шт.

24

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex head, 5/8" - 11 NC x 1-1/2", grade 8

20шт.

25

L36067

WASHER

- drum to oil slinger

20шт.

26

A13112

STUD

STUD - wheel

16шт.

27

NSS

NOT SOLD SEPARAT

NUT - wheel, not shipped with axle, order Refs. 43 and 44

16шт.

28

N7076

AXLE SHAFT

SHAFT - axle, left-hand, short

1шт.

29

N7095

AXLE SHAFT

SHAFT - axle, right-hand, long

1шт.

30

REF

INSTRUCTION

BRAKE ASSEMBLY - axle, see Figure 180

2шт.

31

28-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 8

- hex head, 5/8" - 18 NF x 2", grade 8

30шт.

32

L30737

WASHER

- special

30шт.

33

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex, self-locking, 5/8" - 18 NF

30шт.

34

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- fill

1шт.

35

A12928

BREATHER

- axle housing

1шт.

36

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

- magnetic, Includes: Ref. 37

1шт.

37

RESERVED

1шт.

38

N7089

HOUSING ASSY.

HOUSING - axle

1шт.

39

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

39

26-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

- hex head, 7/16" - 14 NC x 1-3/4", grade 8

2шт.

39

26-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 8

- hex head, 7/16" - 14 NC x 2-1/2", grade 8

2шт.

40

D47366

WASHER

- special, 1/2"

12шт.

41

D47367

WASHER

- special, 7/16"

4шт.

42

M20704

ADHESIVE

GASKET -, Serial Range: differential-housing

1шт.

43

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- special

16шт.

Refer to CE Service Bulletin 102-82 for change to this washer/lug nut combination and for proper torquing procedure.

1шт.

44

129-140

NUT,3/4"-16, G8

16шт.

Refer to CE Service Bulletin 102-82 for change to this washer/lug nut combination and for proper torquing procedure.

1шт.

D87278

HOUSING ASSEMBLY - service, Includes: Refs. 34, 36, and 38, for 680H only

1шт.
