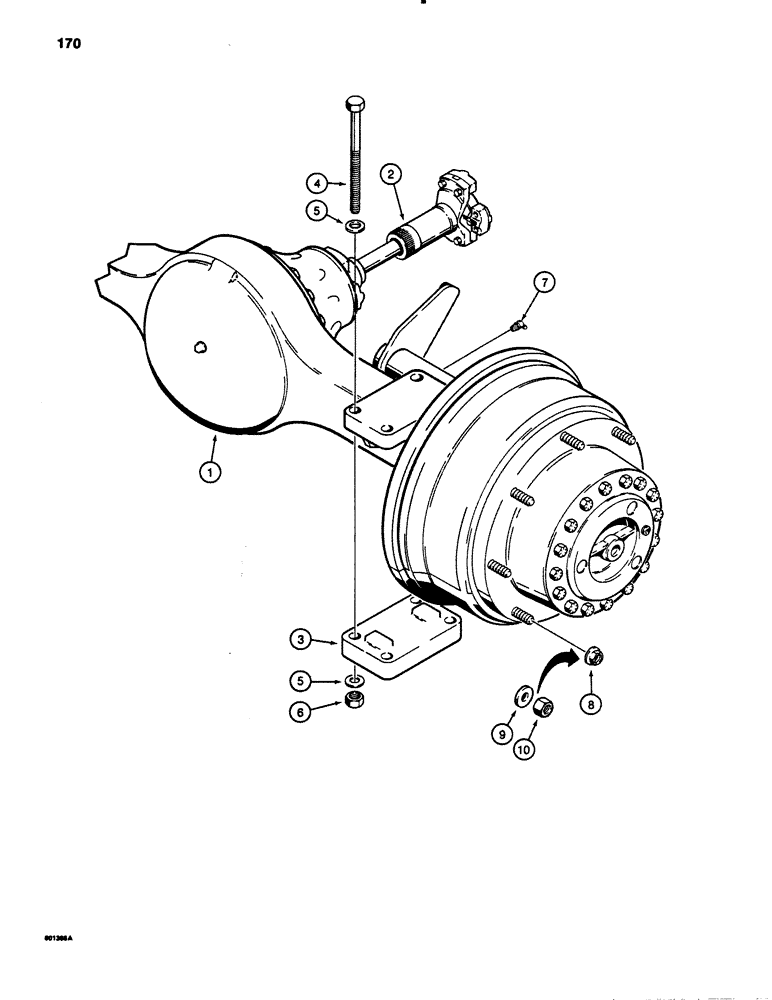

Запчасти Case 780B (170) - REAR DRIVE AXLE MOUNTING PARTS (06) - POWER TRAIN

1

REF

INSTRUCTION

AXLE ASSEMBLY - rear, parts list Figure 172-180

1шт.

2

REF

INSTRUCTION

DRIVE SHAFT ASSEMBLY - parts list Figure 168

1шт.

3

L107782

PAD

- axle mounting, not shipped with axle, order separately

2шт.

4

28-14160

BOLT,Hex, 7/8" - 14 x 10", Gr 8

- hex head, 7/8" - 14 NF x 10", grade 8

8шт.

5

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special

16шт.

6

131-1252

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

8шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

2шт.

8

NSS

NOT SOLD SEPARAT

NUT - wheel, not shipped with axle, order Refs. 9 and 10

16шт.

9

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- special

16шт.

10

129-140

NUT,3/4"-16, G8

16шт.
