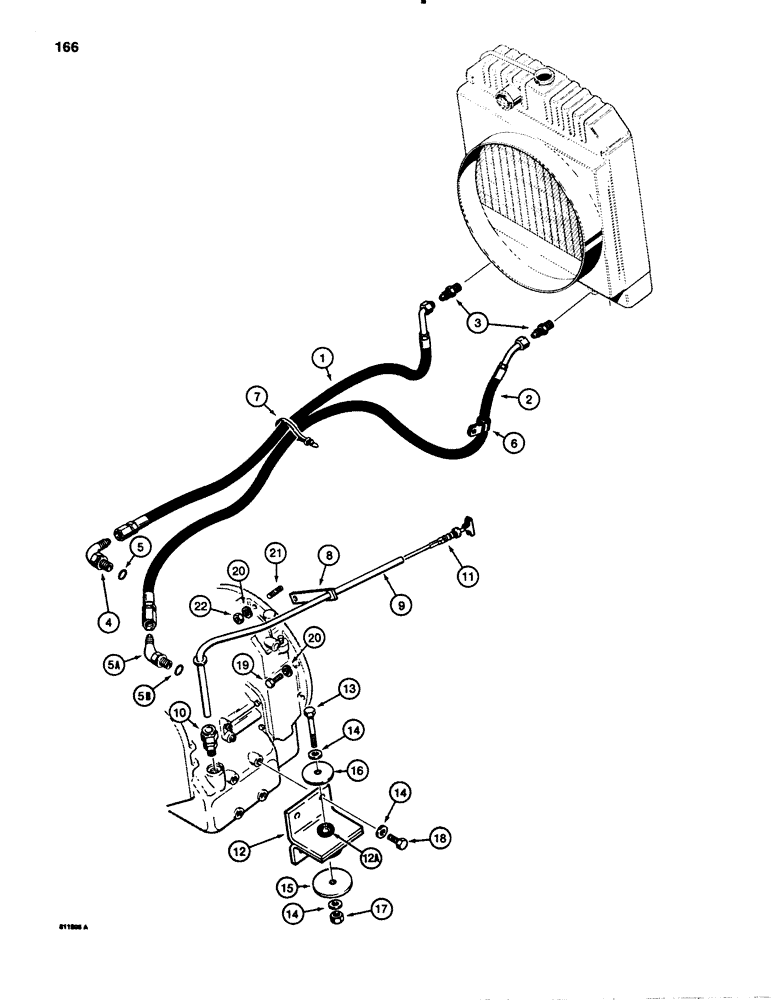

Запчасти Case 780B (166) - TRANSMISSION COOLING SYSTEM, MOUNTING, AND DIPSTICK (06) - POWER TRAIN

1

L109382

HOSE ASSY.

HOSE - transmission to cooler, 60" (1524 mm) long

1шт.

2

L105543

HOSE

- transmission from cooler, 75" (1905 mm) long

1шт.

3

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - straight, male

2шт.

4

218-5550

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

5a

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, adjustable, Includes: Ref. 5B

1шт.

5b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

6

R14668

CLAMP

- hose, transmission from cooler

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

8

L101541

BRACKET - dipstick tube holder

1шт.

9

L101543

TUBE,0.75" OD

- transmission dipstick

1шт.

10

L101550

CONNECTOR, ELEC

CONNECTOR - dipstick

1шт.

11

L101544

DIPSTICK

- transmission oil level

1шт.

L107697

BRACKET

ASSEMBLY - transmission mounting, Includes: Ref. 12 and 12B

2шт.

12

NSS

NOT SOLD SEPARAT

BRACKET - transmission mounting

1шт.

12a

A19066

MOUNTING PARTS

MOUNT - rubber

1шт.

13

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

14

L79179

WASHER

- flat, 3/4", special

12шт.

15

L100884

WASHER

- flat, 3/4" (20 mm) ID x 4-1/4" (108 mm) OD, special

2шт.

16

A19068

WASHER

- flat, 3/4" (20 mm) ID x 3-3/4" (95 mm) OD, special

2шт.

17

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

2шт.

18

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

10шт.

20

92-6

LOCK WASHER,3/8"

12шт.

21

L108149

STUD

-, Serial Range: transmission-housing

2шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.
