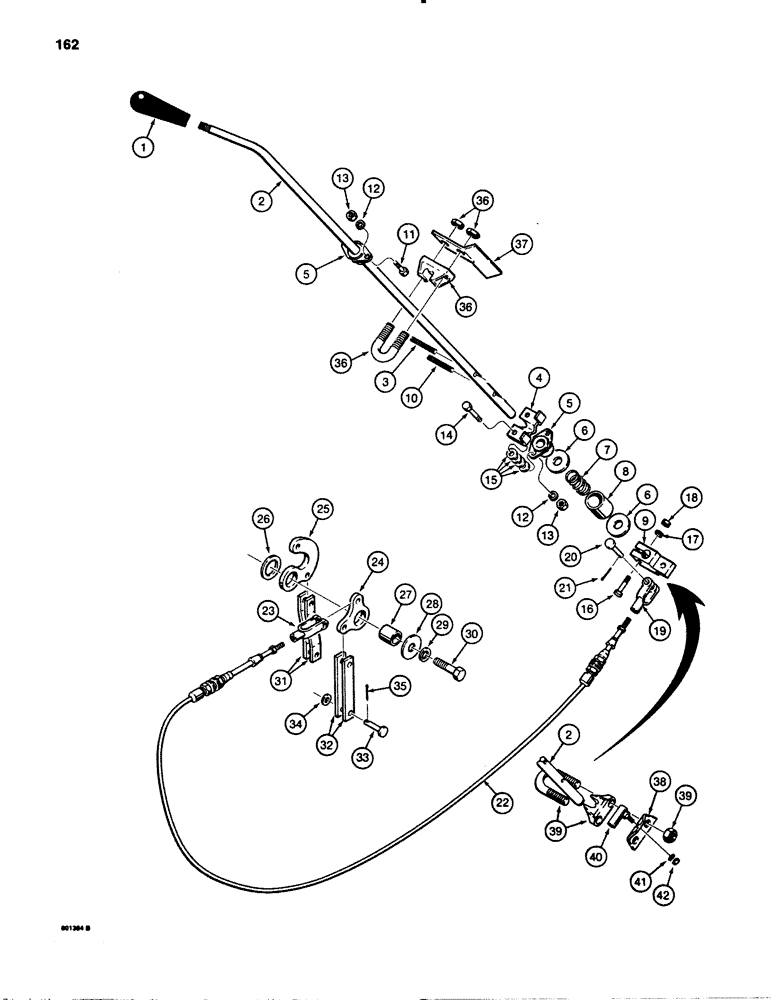

Запчасти Case 780B (162) - TRANSMISSION CONTROLS FORWARD AND REVERSE (06) - POWER TRAIN

1

L55721

HANDLE

- shift lever

1шт.

2

L108604

LEVER

- shift, forward and reverse

1шт.

3

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

4

L103553

PLATE

- forward and reverse lever

1шт.

5

H755785

FLANGED BEARING,15.88mm ID

BEARING - forward and reverse lever

2шт.

6

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8", special

2шт.

7

L74517

VALVE SPRING

SPRING - forward and reverse

1шт.

8

L12479

SLEEVE

- spring

1шт.

9

L70454

WASHER

BRACKET - shuttle cable, used before tractor SN 9145153

1шт.

10

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

11

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

25-104

NUT,1/4"-20, G5

4шт.

14

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

15

95-4

WASHER,1/4"

- flat, 1/4"

1шт.

16

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"-18 NC x 1-1/2", Used with L70454 bracket

1шт.

17

92-5

LOCK WASHER,5/16"

used with L70454 bracket 5/16"

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, used with L70454 bracket

1шт.

19

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - cable end, 1/4", used with L70454 bracket

1шт.

20

141-2

CLEVIS PIN,1/4" x .770"

- 1/4", used with L70454 bracket

1шт.

21

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), , Used with L70454 bracket 1/16" x 3/4"

1шт.

22

D127025

CABLE PULLING GRIP

CABLE - transmission shuttle control

1шт.

23

A18709

CLEVIS

- cable end

1шт.

24

L101546

LEVER

BELLCRANK - shuttle

1шт.

25

L101547

LEVER

BELLCRANK - range

1шт.

26

195-2102

WASHER,1 1/16" x 1 1/2" x .032"

- shim

1шт.

27

L101545

BUSHING

- bellcrank

1шт.

28

195-2053

WASHER,17/32" x 1 1/2" x .083"

- special

1шт.

29

92-8

LOCK WASHER,1/2"

1шт.

30

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

1шт.

31

L101554

DRAG LINK

LINK - range control

2шт.

32

L101553

DRAG LINK

LINK - shuttle control

2шт.

33

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

6шт.

34

195-21

WASHER,5/16"

- flat, 5/16"

6шт.

35

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

6шт.

36

L79112

CLAMP

- transmission control

1шт.

37

L108304

PLATE ASSY.

CLIP - clamp

1шт.

38

L108603

BRACKET

- shuttle cable, used on tractor SN 9145153 and after

1шт.

39

L79112

CLAMP

- shuttle cable, used with L108603 bracket

1шт.

40

A10329

BALL JOINT,1/4" - 28 x 1"

- shuttle cable, used with L108603 bracket

1шт.

41

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used with L108603 bracket 1/4"

1шт.

42

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, 1/4" - 20 NC, Used with L108603 bracket

1шт.
