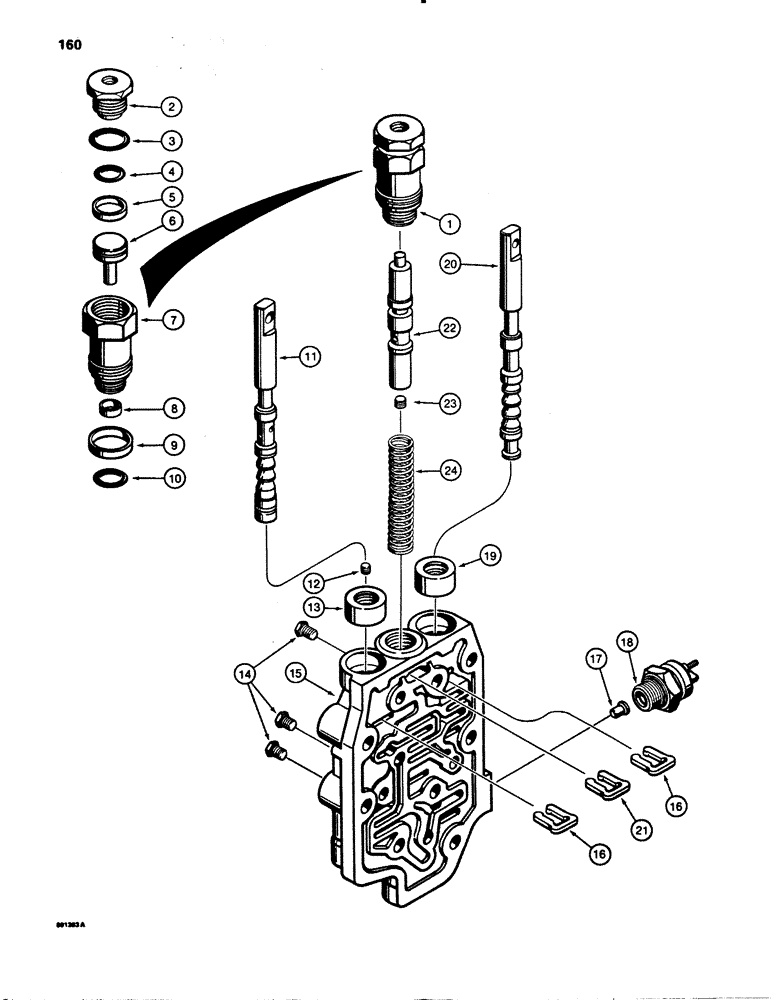

Запчасти Case 780B (160) - TRANSMISSION CONTROL VALVE ASSEMBLY (06) - POWER TRAIN

L104991

TRANSMISSION

ASSEMBLY - used before tractor SN 9145069, no longer available, for service order L109159 transmission, Includes: Ref. 1 - 24

1шт.

L109159

CASE

TRANSMISSION ASSEMBLY - forward and reverse, used on tractor SN 9145069 and after, Includes: Ref. 1 - 24

1шт.

N8879

LOCK VALVE

CONTROL VALVE ASSEMBLY - transmission, forward and reverse, Includes: Ref. 1 - 24

1шт.

1

L33552

VALVE

PISTON ASSEMBLY - air, Includes: Ref. 2 - 10

1шт.

2

L33574

FILTER ASSY

- piston housing

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- piston housing cap

1шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- piston

1шт.

5

L33575

RING

- piston

1шт.

6

L33576

PISTON

- air

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - piston

1шт.

8

D87168

OIL SEAL

- oil

1шт.

9

L30394

SEAL,23.02mm ID x 27mm OD x 6.35mm Thk

- band

1шт.

10

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- piston

1шт.

E114396

VALVE

BODY AND SPOOL ASSEMBLY - transmission control valve, Includes: Ref. 11 - 14

1шт.

11

E114395

SPOOL

- speed selector, Includes: Ref. 12

1шт.

12

221-850

PLUG,Hex Soc, 1/16"-27

- speed selector spool

1шт.

13

D63387

OIL SEAL,15.88mm ID x 28.7mm OD x 13.87mm Thk

OIL SEAL - control valve

1шт.

14

221-660

PLUG,Hex Hd, 1/16"-27

- pipe

3шт.

15

NSS

NOT SOLD SEPARAT

BODY - transmission control valve, Includes: Ref. 16 - 19

1шт.

16

E114397

STOP

- spool

2шт.

17

E114398

PIN

- actuating switch

1шт.

18

E114399

SWITCH

- neutral start, see Figure 90 for electrical connections, Includes: Ref. 19

1шт.

19

D63387

OIL SEAL,15.88mm ID x 28.7mm OD x 13.87mm Thk

OIL SEAL - control valve body

1шт.

20

N7205

SPOOL

- control valve, forward and reverse

1шт.

21

E114397

STOP

- spool

1шт.

22

N7204

SPOOL

- control valve, Includes: Ref. 23

1шт.

23

221-850

PLUG,Hex Soc, 1/16"-27

- spool

1шт.

24

E114402

SPRING

- control valve

1шт.
