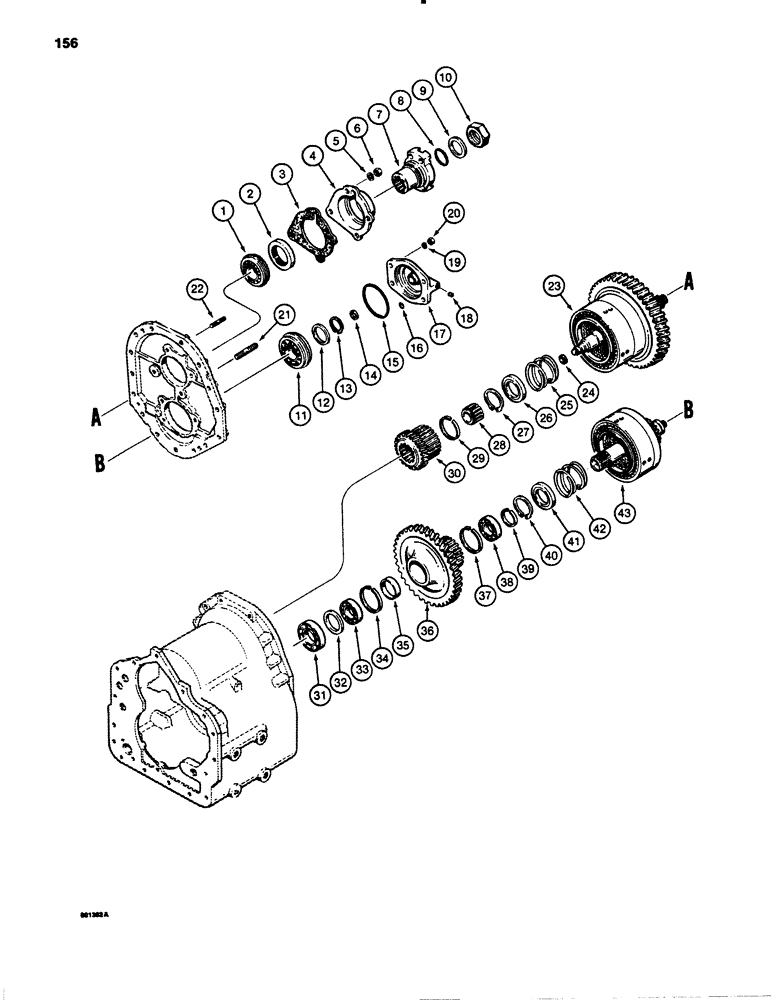

Запчасти Case 780B (156) - TRANSMISSION OUTPUT SHAFT, LOW, AND THIRD GEARS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
L104991
TRANSMISSION
ASSEMBLY - used before tractor SN 9145069, no longer available, for service order L109159 transmission, Includes: Ref. 1 - 43
1шт.
L109159
CASE
TRANSMISSION ASSEMBLY - forward and reverse, continued, used on tractor SN 9145069 and after, Includes: Ref. 1 - 43
1шт.
1
S98375
BALL BEARING,40 mm ID x 90 mm OD x 23 mm
BEARING - rear, output shaft
1шт.
2
E114372
OIL SEAL,53.98mm ID x 79.55mm OD x 9.53mm Thk
OIL SEAL - rear bearing cap
1шт.
3
N7206
GASKET
- bearing cap
1шт.
4
N7207
BEARING CAP
CAP - output shaft rear bearing
1шт.
5
92-9
BEARING WASHER,9/16"
4шт.
6
25-109
NUT,9/16"-12, G5
- hex, 9/16" - 12 NC
4шт.
7
A19928
FLANGE
- output
1шт.
8
A30915
O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro
- flange
1шт.
9
A17938
WASHER
- flange, large
1шт.
10
A55863
LOCK NUT
- flange, special
1шт.
11
N7276
BALL BEARING,50mm ID x 110mm OD x 27mm W
BEARING - rear, low speed shaft
1шт.
12
E114268
BEARING WASHER
WASHER - rear bearing support
1шт.
13
E114334
CLIP
RING - rear bearing retainer
1шт.
14
E114360
RING,16.77mm ID x 19.47mm OD x 3.1mm Thk
PISTON RING - low shaft
1шт.
15
39738
O-RING,4.609" ID x 0.139" Width
- bearing cap, larger
1шт.
16
A27891
O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro
- bearing cap, rear, small
1шт.
17
N7777
HOUSING
- rear bearing cap
1шт.
18
218-5152
PLUG,Hex Hd, 3/8"-24 ORB
Pipe Hex Hd, 3/8"-24 ORB
1шт.
19
92-7
LOCK WASHER,7/16"
4шт.
20
25-117
NUT,7/16"-20, G5
- hex, 7/16" - 14 NC
4шт.
21
N7209
BEARING CAP
STUD - bearing cap, 7/16" - 14 NC and 7/16" - 20 UNF ends
4шт.
22
N7210
STUD
- output bearing cap, rear, 9/16" - 12 NC and 9/16" - 18 UNF ends
4шт.
23
NSS
NOT SOLD SEPARAT
CLUTCH ASSEMBLY - third, output shaft, parts list Figure 158
1шт.
24
E114360
RING,16.77mm ID x 19.47mm OD x 3.1mm Thk
PISTON RING - output shaft
1шт.
25
E114331
SPRING
- piston return
1шт.
26
E114332
RETAINER
- spring
1шт.
27
E114328
RING, SNAP
SNAP RING - spring retainer
1шт.
28
N7211
ROLLER CAGE BEARING,38.1mm ID x 47660mm OD x 25.4mm
BEARING - pilot
1шт.
29
S117877
RING
- retainer, third gear
1шт.
30
N8418
GEAR WHEEL
HUB - third gear, used before tractor SN 9145069
1шт.
30
N7382
HUB ASSY.
HUB - third gear, used on tractor SN 9145069 and after
1шт.
31
E114340
BALL BEARING
BEARING - front, low speed shaft
1шт.
32
E114341
SPACER
- front bearing
1шт.
33
S89657
BEARING
- gear, low speed
1шт.
34
S89658
RING
- locating, low speed gear
1шт.
35
N7213
SPACER
- low speed gear
1шт.
36
N7214
GEAR
HUB - low gear, used before tractor SN 9145069
1шт.
36
N7384
GEAR
HUB - low gear, used on tractor SN 9145069 and after
1шт.
37
S89658
RING
- bearing
1шт.
38
S89657
BEARING
- low speed gear
1шт.
39
E114334
CLIP
RETAINING RING - bearing
1шт.
40
E114328
RING, SNAP
SNAP RING - spring retainer
1шт.
41
E114332
RETAINER
SPRING - retainer
1шт.
42
E114331
SPRING
- piston return
1шт.
43
NSS
NOT SOLD SEPARAT
CLUTCH ASSEMBLY - low and bleed valve, parts list Figure 146
1шт.
