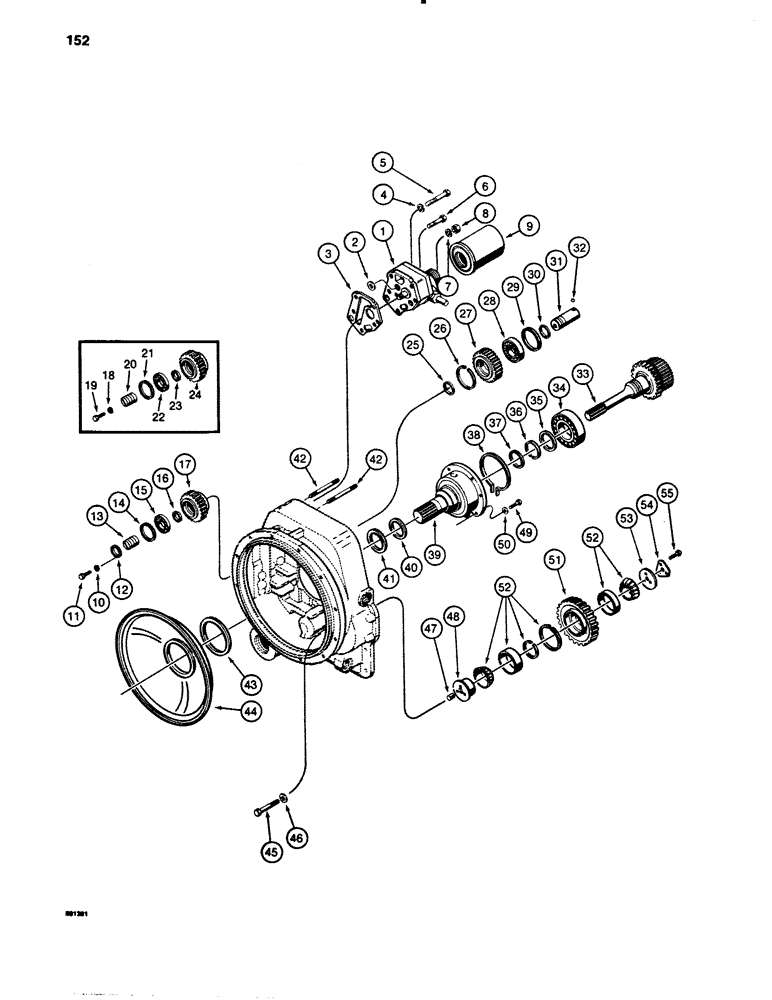

Запчасти Case 780B (152) - CHARGING PUMP AND REVERSE IDLER (06) - POWER TRAIN

L104991

TRANSMISSION

ASSEMBLY - used before tractor SN 9145069, no longer available, for service order L109159 transmission, Includes: Ref. 1 - 55

1шт.

L109159

CASE

TRANSMISSION ASSEMBLY - forward and reverse, used on tractor SN 9145069 and after, Includes: Ref. 1 - 55

1шт.

1

D87252

PUMP

CHARGING PUMP - transmission

1шт.

2

A64436

O-RING,0.549" ID x 0.755" OD

- charging pump

1шт.

3

E114250

GASKET

- charging pump

1шт.

4

92-7

LOCK WASHER,7/16"

3шт.

5

13-772

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

1шт.

6

13-764

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

7

92-7

LOCK WASHER,7/16"

2шт.

8

25-117

NUT,7/16"-20, G5

- hex, 7/16" - 14 NC

3шт.

9

D87214

FILTER

- charging pump

1шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

E114258

RING

- bearing locating

1шт.

13

E114259

SUPPORT

- pump drive bearing

1шт.

14

L30725

RING

- bearing retaining

1шт.

15

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- pump drive gear

1шт.

16

E114258

RING

- bearing locating

1шт.

17

N7147

GEAR

- pump drive

1шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

20

E114259

SUPPORT

- auxiliary pump drive bearing

1шт.

21

E114261

RING

- bearing retaining

1шт.

22

N7254

BALL BEARING,35 mm ID x 71.998 mm OD x 17 mm

BEARING - pump drive gear

1шт.

23

E114258

RING

- bearing locating

1шт.

24

N7203

GEAR

- auxiliary pump drive

1шт.

25

E114258

RING

- bearing locating, idler gear, small

1шт.

26

S89658

RING

- bearing locating, idler gear, large

1шт.

27

N7148

GEAR

- pump drive idler

1шт.

28

A26537

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

BEARING - idler stub shaft

1шт.

29

S89658

RING

- bearing retaining

1шт.

30

E114258

RING

- bearing locating

1шт.

31

N7149

SHAFT

- idler gear stub

1шт.

32

211-357

BALL,1/4" Dia

- lock, stub shaft

1шт.

33

N7150

SHAFT

- turbine and hub

1шт.

34

N7486

BALL BEARING,1.9685" ID x 4.3307" OD x 1.063"

BEARING - turbine shaft

1шт.

35

E114268

BEARING WASHER

WASHER - bearing locating

1шт.

36

E104161

RING

- bearing retaining

1шт.

37

A17901

SEAL

RING - piston

1шт.

38

E114266

RING

- snap, bearing

1шт.

39

N7151

BRACKET

SUPPORT - stator

1шт.

40

D87245

RING

SPRING - piston ring expander

1шт.

41

N7152

RING

- piston

1шт.

42

N7153

STUD

- pump mounting

3шт.

43

D87224

OIL SEAL,101.6mm ID x 127.2mm OD x 7.92mm Thk

OIL SEAL - baffle

1шт.

44

E114272

BAFFLE

- housing

1шт.

45

28-744

BOLT,Hex, 7/16" - 20 x 2-3/4", Gr 8

- hex head, 7/16" - 20 NF x 2-3/4"

3шт.

46

92-7

LOCK WASHER,7/16"

3шт.

47

E114275

PIN

- shaft, reverse idler

1шт.

48

N7154

SHAFT

- reverse idler

1шт.

49

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

50

92-6

LOCK WASHER,3/8"

6шт.

51

N7155

GEAR

- reverse idler

1шт.

52

N7190

BEARING ASSY,45.24mm ID x 77.81mm OD x 44.67mm W

BEARING ASSEMBLY - reverse idler gear, matched parts

1шт.

53

E114278

PLATE

- bearing retainer

1шт.

54

E114279

PLATE ASSY.

PLATE - lock

1шт.

55

28-716

BOLT,Hex, 7/16" - 20 x 1", Gr 8

- hex head, 7/16" - 20 NF x 1"

3шт.
