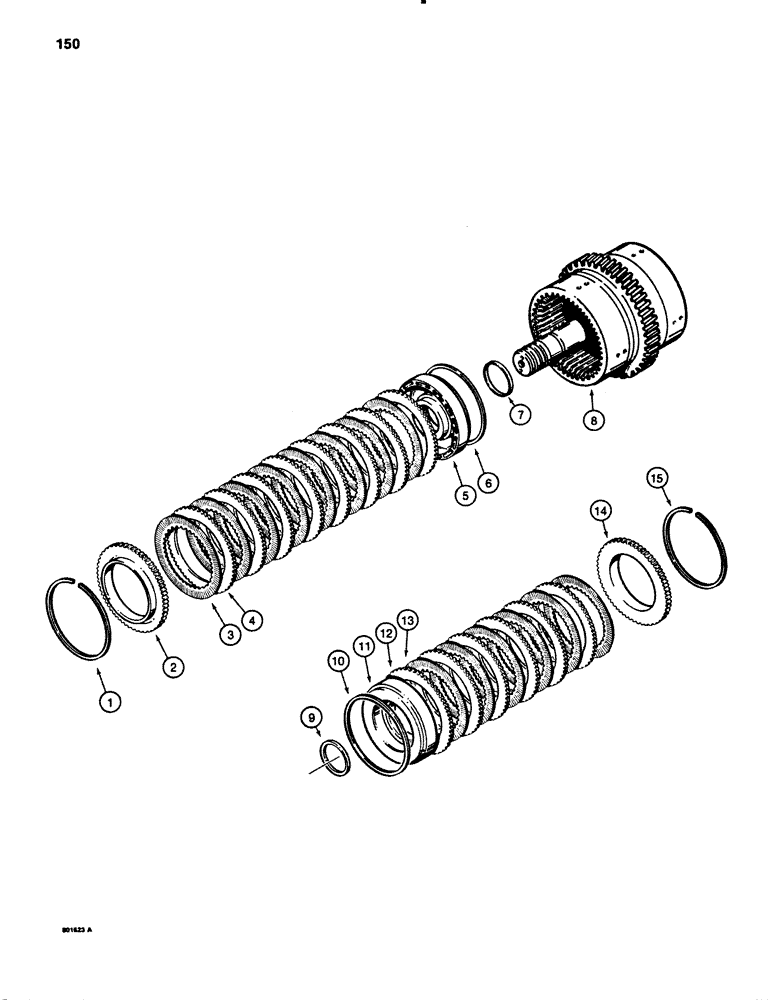

Запчасти Case 780B (150) - TRANSMISSION REVERSE AND SECOND CLUTCH ASSEMBLY (06) - POWER TRAIN

L104991

TRANSMISSION

ASSEMBLY - used before tractor SN 9145069, no longer available, for service order L109159 transmission, Includes: Ref. 1 - 15

1шт.

L109159

CASE

TRANSMISSION ASSEMBLY - forward and reverse, used on tractor SN 9145069 and after, Includes: Ref. 1 - 15

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - reverse and second, Includes: Ref. 1 - 15

1шт.

1

E114380

RING, SNAP

SNAP RING - backing plate

1шт.

2

E114381

PLATE

GEAR - backing plate, clutch disc

1шт.

3

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, inner

8шт.

4

E114383

CLUTCH DISC

DISC - clutch, outer

8шт.

5

E114384

PISTON

- clutch

1шт.

6

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch

1шт.

7

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, inner clutch

1шт.

8

D87251

GEAR

SHAFT AND DRUM - reverse and second

1шт.

9

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, inner clutch

1шт.

10

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch

1шт.

11

E114392

PISTON

- clutch

1шт.

12

E114383

CLUTCH DISC

DISC - clutch, outer

6шт.

13

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, inner

6шт.

14

E114381

PLATE

- backing, clutch disc

1шт.

15

E114380

RING, SNAP

SNAP RING - backing plate

1шт.
