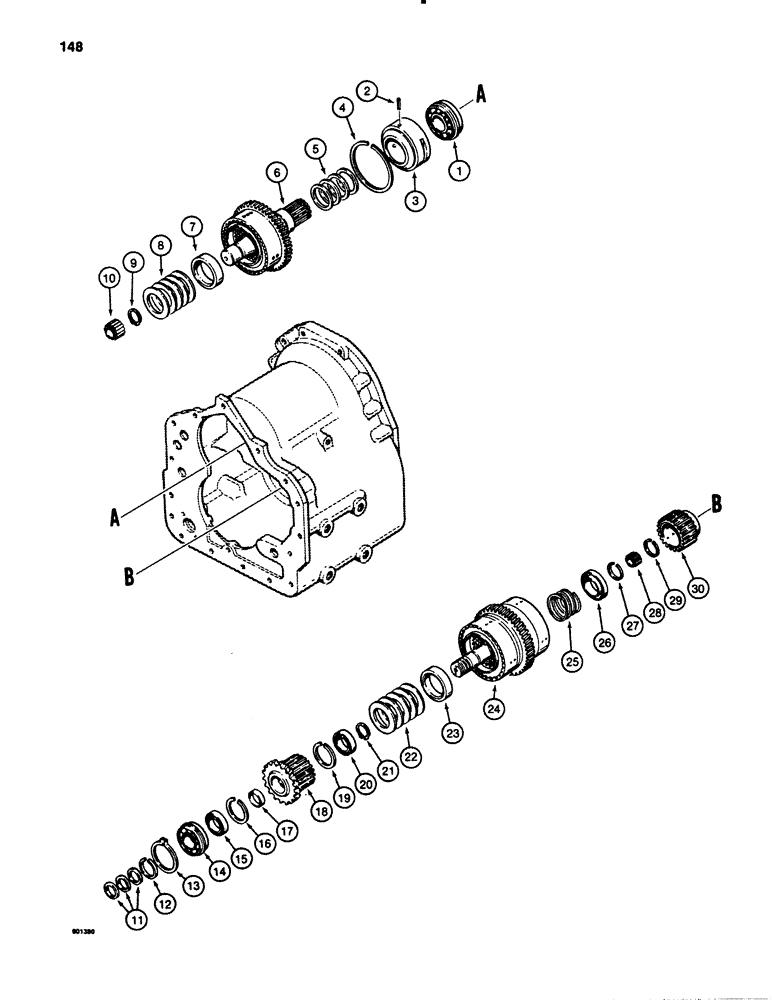

Запчасти Case 780B (148) - TRANSMISSION FORWARD, REVERSE, AND SECOND GEARS (06) - POWER TRAIN

L104991

TRANSMISSION

ASSEMBLY - used before tractor SN 9145069, no longer available, for service order L109159 transmission, Includes: Ref. 1 - 3

1шт.

L109159

CASE

TRANSMISSION ASSEMBLY - forward and reverse, used on tractor SN 9145069 and after, Includes: Ref. 1 - 3

1шт.

1

E114358

BEARING

- rear, forward shaft

1шт.

2

E114357

AXLE PIN

ROLL PIN - piston sleeve, if used

1шт.

3

E114356

BUSHING

SLEEVE - piston, used before tractor SN 9145069, Includes: Ref. 4 - 30

1шт.

3

N8546

SLEEVE

- piston, used on tractor SN 9145069 and after, Includes: Ref. 4 - 30

1шт.

4

E114355

RING

- retainer, piston ring sleeve

1шт.

5

A55824

SEAL

RING - piston, forward shaft

4шт.

6

NSS

NOT SOLD SEPARAT

DRUM AND SHAFT ASSEMBLY - forward, parts list Figure 146

1шт.

7

N7215

SPACER

- piston return spring

1шт.

8

D87249

SPRING

BELLEVILLE WASHER - drum and shaft

5шт.

9

D87257

RING

SNAP RING - spring retainer

1шт.

10

E114339

NEEDLE BEARING,44.44mm ID x 54.02mm OD x 19.05mm W

BEARING - forward pilot shaft

1шт.

11

A17925

SPRING

RING - piston, reverse and second shaft

3шт.

12

L33518

RING

- retainer, front bearing

1шт.

13

S89652

RING

SNAP RING - front bearing

1шт.

14

S89654

BALL BEARING,40mm ID x 90mm OD x 23mm W

BEARING - front shaft, reverse and second

1шт.

15

A28236

BALL BEARING,1.5743" ID x 2.6772" OD x 0.5906"

BEARING - gear, clutch driven

1шт.

16

E114325

RING, SNAP

RING - retainer, bearing

1шт.

17

E114326

SPACER

- bearing, clutch driven gear

1шт.

18

N7270

GEAR

- reverse clutch

1шт.

19

E114325

RING, SNAP

RING - retainer, bearing

1шт.

20

S89638

BALL BEARING

BEARING - gear, clutch driven

1шт.

21

D87257

RING

SNAP RING - spring retainer

1шт.

22

D87249

SPRING

BELLEVILLE WASHER - clutch

5шт.

23

N7215

SPACER

- spring, piston return

1шт.

24

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - reverse and second, parts list Figure 150

1шт.

25

E114331

SPRING

- piston return

1шт.

26

E114332

RETAINER

SPRING - retainer

1шт.

27

E114328

RING, SNAP

SNAP RING - spring retainer

1шт.

28

N7216

NEEDLE BEARING,1.125" ID x 1.5012" OD x 1"

BEARING - rear shaft, reverse and second

1шт.

29

E114334

CLIP

RING - retainer, clutch disc hub

1шт.

30

N8749

GEAR

- second clutch disc hub

1шт.
